Specifications
Brand Name :
XCMG
Model Number :
GR215
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 unit
Price :
300 Unit/Units per Month
Payment Terms :
L/C, T/T
Delivery Time :
30-45 work days
Packaging Details :
Nude
Engine model :
6CTA8.3
Maximum lift above ground :
450mm
Maximum depth of cutting :
500mm
Engine Brand :
Cummins
Rated power :
160kW
Moldboard width height :
4270*610mm
Forward Speed(km/h) :
38
Reverse Speed(km/h) :
23
Description

Yellow XCMG 215hp Motor Grader GR215 Road Construction Machinery Cummins Engine

Product Description

1.Using Cummins 6CTA8.3-C215 turbocharged diesel engine, the output torque and power reserve factor is large, and the fuel consumption is low.

2.The gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3.The drive axle is a dedicated XCMG axle.

4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.

5.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

6.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

Specification

Description
Unit
Parameter value
Engine model
6CTA8.3-C215
Rated power/speed
kW/rpm
160/2200
Overall dimension (standard)
8970x2625x3420
Total weight (standard)
kg
16100
Tire specification
17.5-25
Ground clearance (front axle)
mm
430
Tread
mm
2156
Space of front and rear axles
mm
6219
Space of middle and rear wheels
mm
1538
Forward velocity
km/h
5/8/11/19/23/38
Reverse speed
km/h
2005/11/23
Tractive effort f=0.75
kN
113.8
Maximum gradeability
%
30
Tire inflation pressure
kPa
260
Working system pressure
MPa
18
Transmission pressure
MPa
1.3-1.8
Maximum steering angle of front wheel
±50°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
Front15°,Rear15°
Maximum steering angle of frame
±27°
Minimum turning radius
m
7.3

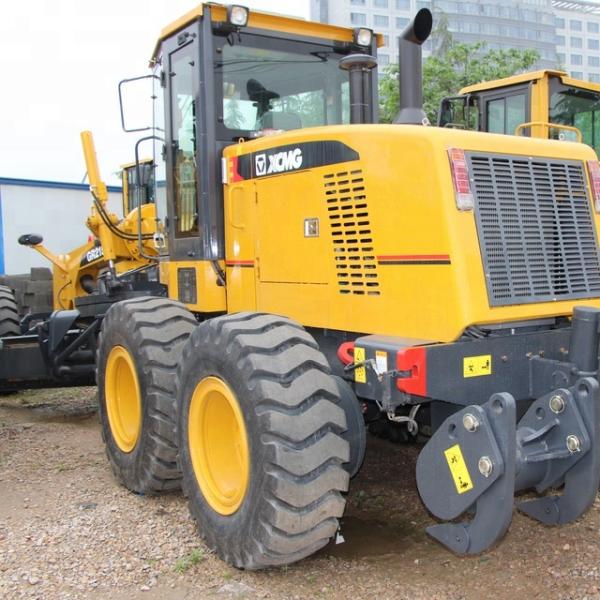

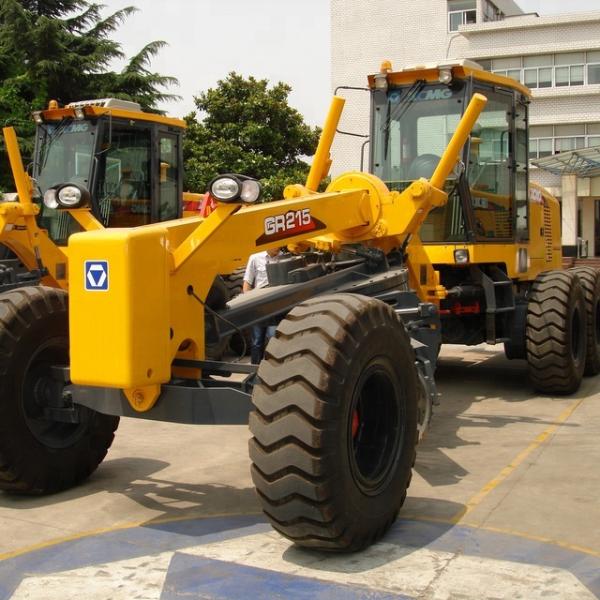

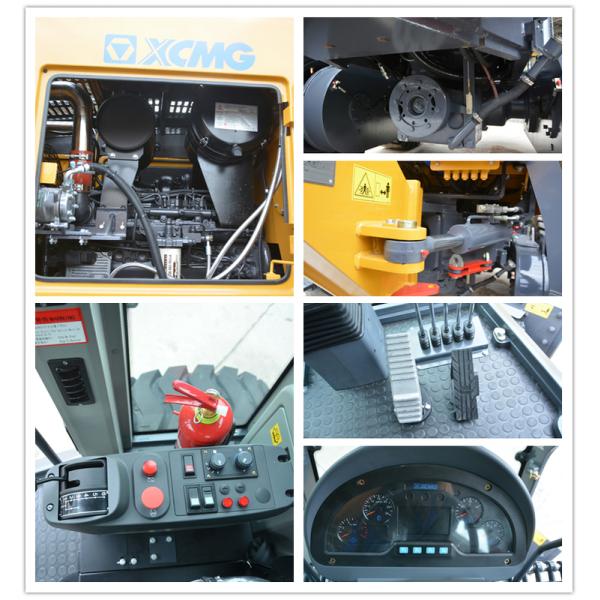

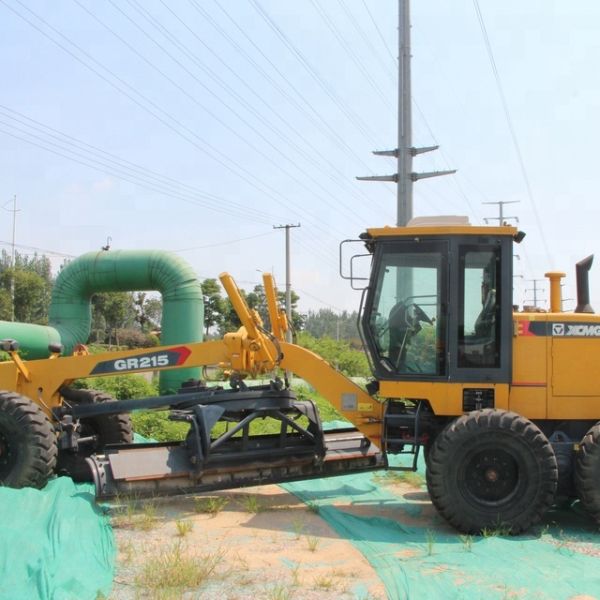

Product picture

GR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor GraderGR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor GraderGR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor GraderGR215 Road Construction Machinery Cummins Engine / Yellow XCMG 215hp Motor Grader
