Specifications
Brand Name :
XCMG
Model Number :
GR135
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
200 Unit/Units per Month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Dimension(L*W*H) :
8015*2380*3050mm
Engine Brand :
Cummins
Rated power/speed :
97kw(2200r/min)
Condition :
New
Engine model :
6BT5.9-C130-2
Color :
Yellow
Weight :
11000 Kg
Description

XCMG 135hp Motor Grader GR135 Road Construction Machinery With Cummins Engine​

Product Description

1. The GR135 adopts a Dongfeng Cummins 6BT5.9-C130-II turbocharged diesel engine, which has a large output torque and power reserve factor and low fuel consumption.

2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.

3. The drive axle is a dedicated XCMG axle.

4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.

5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.

6. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

Specification

Basic specification
Engine model 6BT5.9
Rated power/speed 100/2200kw/rpm
Dimension(LxWxH) 8015×2380×3050mm
Operating weight(Standard) 11000kg

Performance specification
Travelling speed ,forward 5,8,13,20,30,42km/h
Travelling speed ,reverse 5,13,30km/h
Tractive force(f=0.75) 61.3KN
Max. gradeability 20%
Tire inflation pressure 300kPa
Working hydraulic pressure 16MPa
Transmission pressure 1.3~1.8MPa

Operating specification
Max. steering angle of front wheels ±49°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 16
Frame articulation angle ±27°
Min. turning radius using articulation 6.6m

Biade
Maximum lift above ground 410mm
Maximum depth of cutting 535mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard width X height 3710×610mm

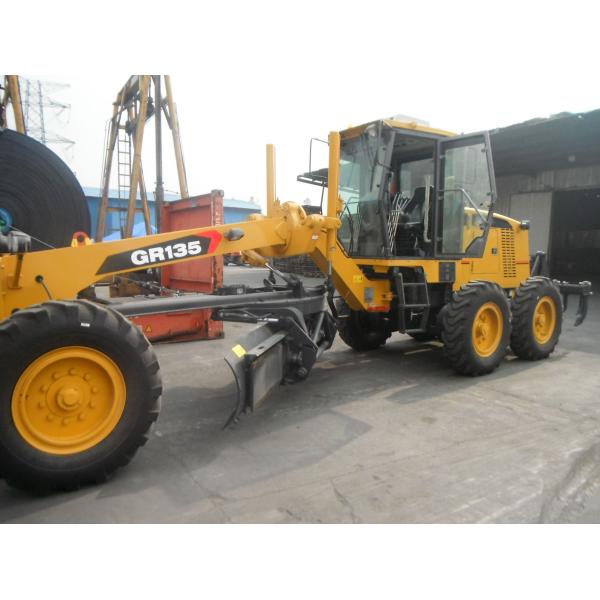

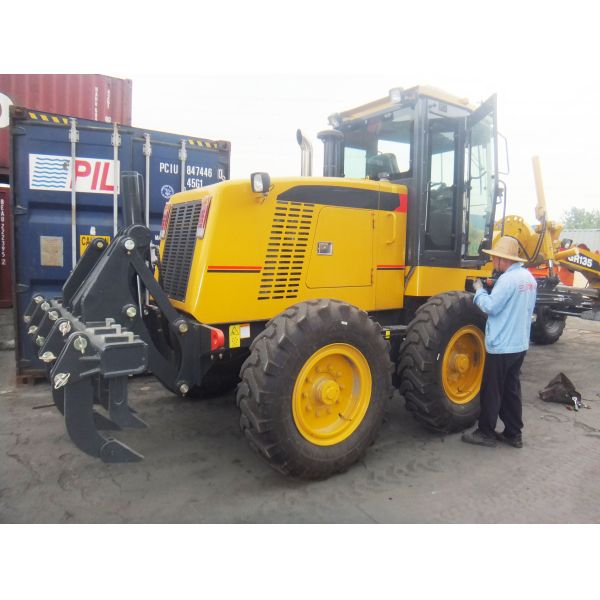

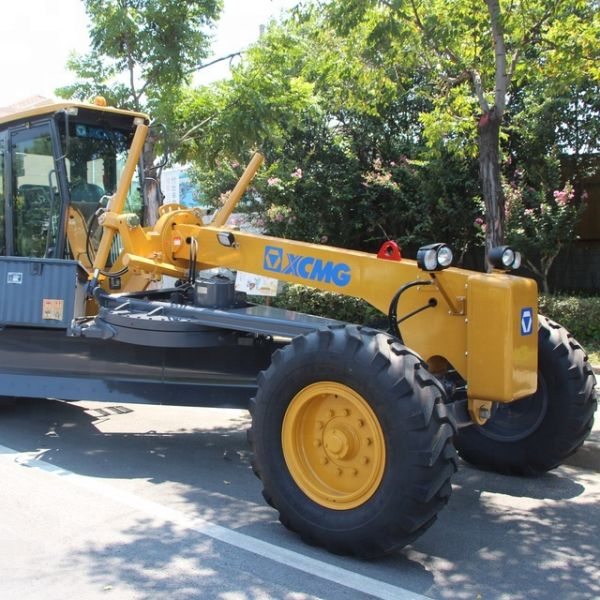

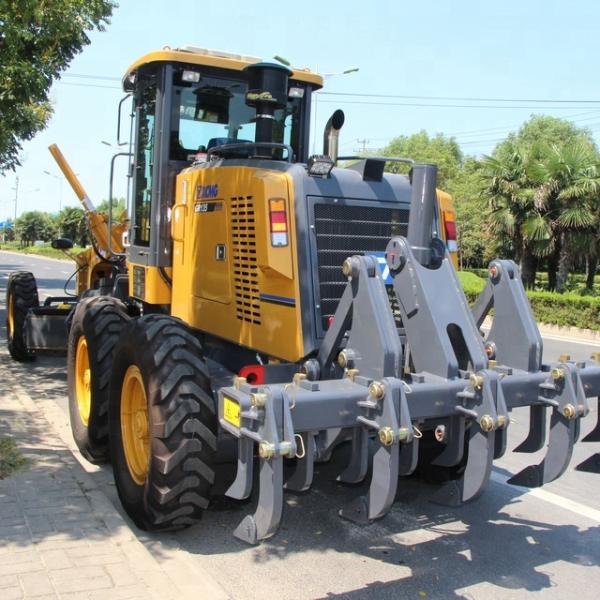

Product picture

XCMG 135hp Road Construction Machinery Motor Grader GR135 With Cummins EngineXCMG 135hp Road Construction Machinery Motor Grader GR135 With Cummins EngineXCMG 135hp Road Construction Machinery Motor Grader GR135 With Cummins EngineXCMG 135hp Road Construction Machinery Motor Grader GR135 With Cummins Engine
