Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125
Specifications
Brand Name :
SINOTRUK HOWO
Model Number :
ZZ1317N4667
Certification :
ISO9001
Place of Origin :
Shandong，China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500sets per month
Delivery Time :
30-45days
Packaging Details :
packed in nude
Condition :
New
Product name :
Telescopic Boom Truck Mounted Crane
Driving type :
8x4
Capacity :
8-15 Ton Truck Crane
Dimension(L*W*H) :
12484*2496*4125
Max Lifting Capacity :
12000 kg
Description

SINOTRUK HOWO 8x4 heavy cargo truck mounted 12T telescopic boom crane

Product Description

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom.

Product Parameter
Max Lifting Capacity 12000 kg
Max Lifting Moment 30 T.M
Max Oil Flow of Hydraulic System 63 L/min
Max Pressure of Hydraulic System 26 MPa
Rotation Angle All Rotation
Max.Working radius (m) 12.5 m
Supporting Leg

Four Supporting Leg with Hydraulic Control

(Including Two Rear Supporting Legs)
SPECIFICATION FOR CHASSIS
Dimension(Lx W xH)(unloaded)(mm) 12484×2496×4125
Loading Capacity (Ton) 31 Ton
Cargo body size (LxWxH) (mm) 8700×2300×600 ,Bottom 3 mm, Side 2 mm
Approaching angle/Departure angle(°) 16/14
Overhang(front/rear) (mm) 1500/2734
Wheel base (mm) 1800+4600+1350
Max speed(km/h) 102
Curb weight(kg) 18876
Engine(Steyr technology, made in China) Model WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
Fuel type Diesel
Power, max(kw/rpm) 371HP
Emission EUROII
Fuel tanker capacity(L) 400L aluminum oil tank
Transmission Model HW19710, 10 speeds forward and 2 reverse
Brake system Service brake

Dual circuit compressed air brake
Steering system Model ZF8118
Front axle HF9
Rear axle HC16
Tire 12.00R20 (Radial Tyre)
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V

Product Pictures

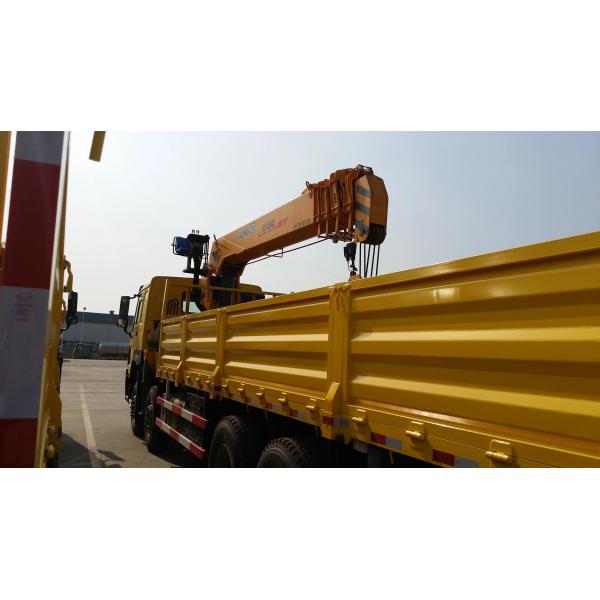

Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125

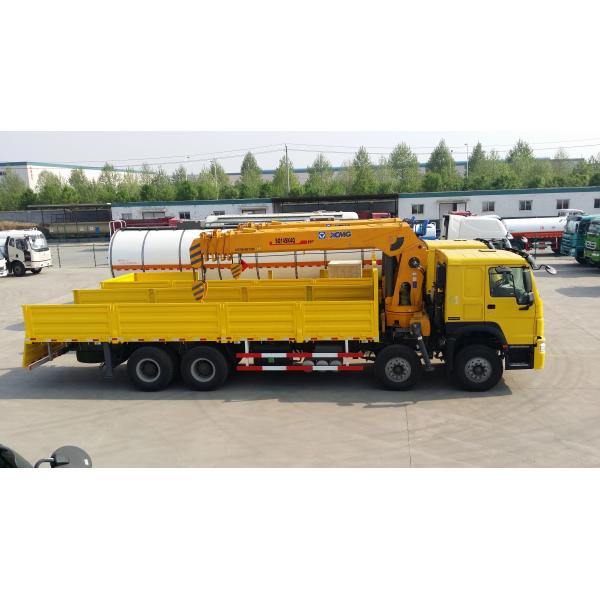

Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125

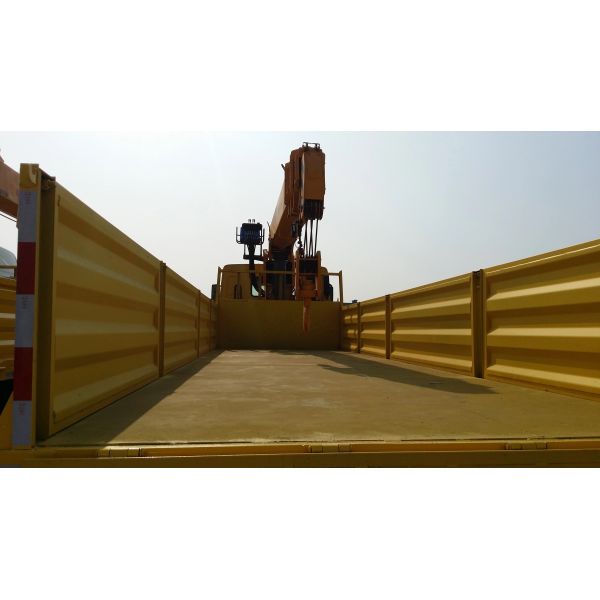

Yellow 8x4 Heavy Cargo 12T Boom Truck Crane Dimension 12484*2496*4125

FAQ

Q: What is your advantages?

A: We are the subsidiary factory of Sinotruk and we adopt the strict quality control system during the production which makes the high quality truck.

B: We are directly factory we can meet all the requirements form customers and provide a better technical support to customers.

Q: I want to transport the truck by container, is it ok?

A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.

Q:How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

Q. How about your company's service, especially after-sale service?

A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.

Q:What is your leadtime?

A:Usually it is 30-50 days after deposit received.
