5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
Specifications
Brand Name :
SHANTUI
Model Number :
SE60E
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Unit/Units per Month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Bucket capacity :
0.22 m3
Rated Speed :
36 kW/2000 rpm
Maximum Digging Depth :
3850 mm
Color :
Yellow
Displacement :
2.615 L
Operating Weight :
5960 kg
Maximum Digging Height :
5785 mm
Max Digging Radius :
6200 mm
Description

Yellow China Excavator SHANTUI 5 Ton Excavator Hydraulic SE60E 0.22 m³ Bucket Capacity

Product description

* Originally imported engine. The engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance and the aluminum

paralleling radiator features good heat dissipation performance.

* Originally imported hydraulic system. The four-pump constant power control mode is adopted to realize the perfect matching between hydraulic system and engine, reduce the fuel

consumption, and improve the efficiency and the double-pump confluence technology is applied for the boom and arm to realize high motion speeds and stable and efficient operations.

* Electro-mechanically integrated intelligent electronic control system with proprietary intellectual property rights. The multi-functional LCD display can realize the data acquisition and

transmission, orientation, control, protection, and remote firmware upgrade and achieve high intelligent control.

* All-new cab with broader vision field and more reasonable space layout. The air-cushioned seats and the ergonomic control system realize simpler and more comfortable operations and

minimize the driver’s fatigue.

* High reliability traveling mechanism and working device. The application of strength calculation, finite element analysis, and new structures and new materials for the structural parts

improves the reliability of the structural parts.

* Convenient repairs and maintenances. The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and

efficient maintenances and reduces the maintenance costs.

Product parameter

ENGINE Model V2607T
Type 4-cylinder in line, turbocharging
Quantity of cylinders 4
Bore x stroke 87 x 110 mm
Displacement 2.615 L
Power output 36 kW/2000 rpm
Maximum torque -
HYDRAULIC SYSTEM Pump Imported
Type Variable piston pump
Maximum discharge flow 144 L/min
Control circuit 3.5 MPa
Travel circuit 24.5 MPa
Swing circuit 21.6 MPa
TRAVEL SYSTEM Travel motor Variable axial piston
Travel brakes Lubricated double-disc
Parking brake Pressure release
Travel shoes 2 x 40
Travel speed 2.7/4.5 km/h
Drawbar pulling force 50 kN
Gradeability 70%
Minimum ground clearance 300 mm
OIL CAPACITY Fuel tank 95 L
Cooling system 8.5 L
Engine oil 9 L
Hydraulic oil tank 74 L
System capacity 120 L
SWING SYSTEM OIL CAPACITY Brake Pressure Release Mechanical Braking
Swing speed 11 rpm
Tail swing radius 1655 mm
Arm digging force 32.3 KN
Bucket digging force 48 KN
BUCKET Bucket capacity Backhoe bucket 0.22 m3 (SAE)
Number of bucket teeth 5
Bucket width 760 mm
Arm length 1.60 m
Maximum digging reach 6.2 m
Maximum digging depth/height 3.85 m/5.785 m
Maximum dumping height 4.075 m
Minimum swing radius 2.395 m

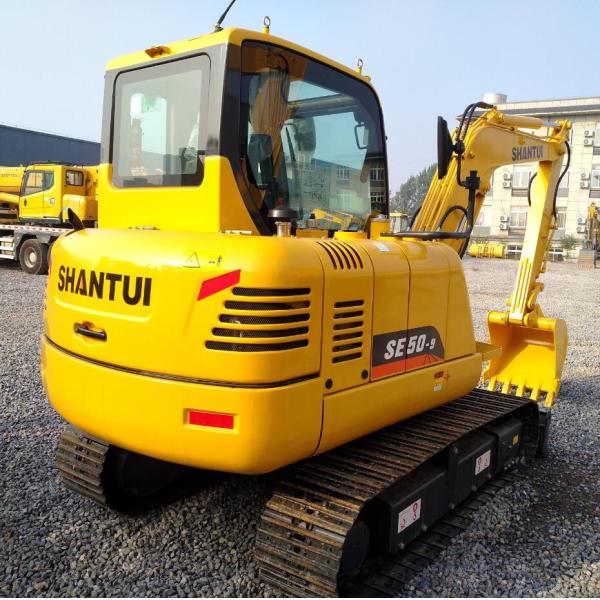

Product picture

5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity5 Ton Excavator Construction Equipment Hydraulic SE60E 0.22 M³ Bucket Capacity
