Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
Specifications
Brand Name :
sinotruk
Model Number :
howo
Certification :
iso/ccc
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 units/month
Delivery Time :
30-45 work days
Packaging Details :
Nude
Model NO. :
ZZ3257N4347W
Transmission Type :
Manual
Power :
Diesel
Load Capacity :
41-50t
Emission Standard :
Euro 2
Drive Wheel :
6×4
Engine Capacity :
＞8L
Engine Make :
WEICHAI
Loading Capacity :
25 Cubic meters
Fuel Tank Capacity :
500L
Cab :
HOWO7D, with Air conditioner
Tires :
59/80R63
Specification :
6.9*2.55*3.25m
HS Code :
8704223000
Origin :
Shandong, China
Description
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System

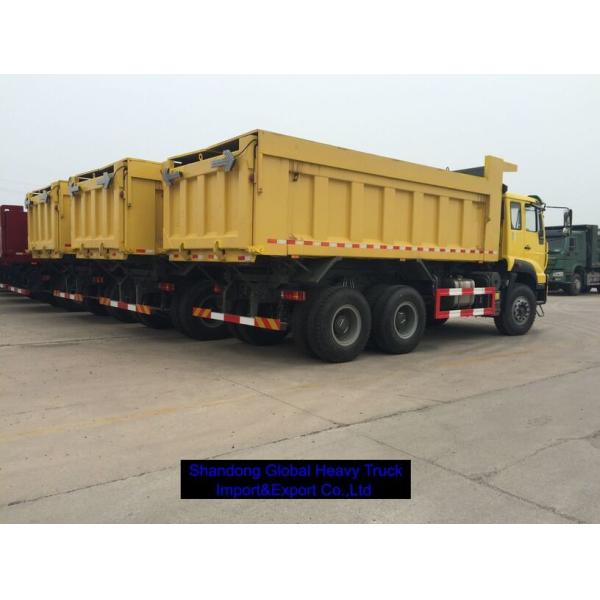

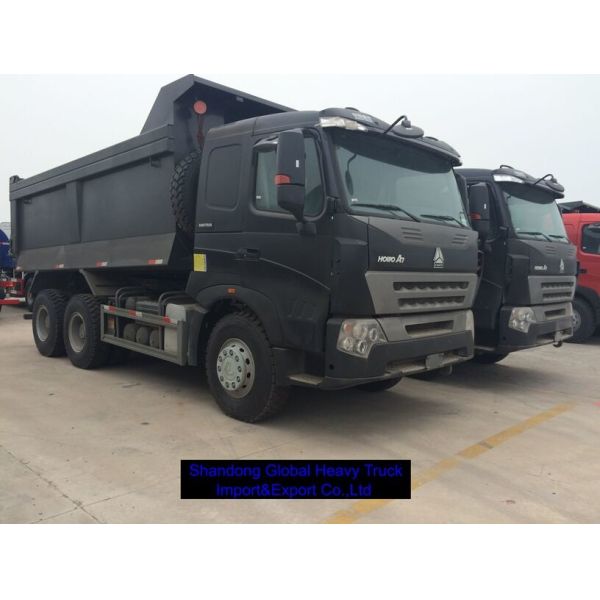

The ZZ3257N3847A HOWO tipper truck integrates cutting-edge technologies from the truck industry, making it ideal for transporting various materials like sand, rocks, soil, waste, construction supplies, coal, minerals, grain, and agricultural products. Its standout feature is the mechanized unloading system, which boosts efficiency and lessens manual labor. Widely used in sectors such as transportation and construction, this truck is powered by a WD615 series engine with horsepower ranging from 336HP to 371HP. It has a cargo box measuring 5.6 meters in length and 2.3 meters in width. The truck can reach a top speed of 75 km/h and is equipped with an HW19710 gearbox.
ZZ3257N3847A
Body Carriage Internal Dimensions(mm) 5600x2300x1500
Cubage (m3) 19.3
Steel thickness of Carriage(mm) Floor:8mm/Side:6mm
Steel Q235
Hydraulic Lift of Carriage Middle Lift
Weight in kg Kerb weight (Kg) 12270
Gross vehicle weight (Kg) 30000
Dimension(mm) Dimensions(mm) Length(mm) 8245
Width(mm) 2550
Height(mm) 3450
Wheel base (mm) 3800+1350
Performance Maximum driving speed (km/h) 75
Fuel consumption (1/100 km) 38
Cab Model SINOTRUK HW76 cab
Single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner
Engine Model WD615.47(Euro 2)
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Horsepower 371
Maximum output Kw/r/min 273/2200
Maximum torque N.m/r/min 1460/1300-1600
Valve 2
Displacement 9.726L
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan
Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Steering ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front Axle SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axles SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & Tyres Rims:10 hole-steel ;Tyres:13R22.5 tubeless tyre with one spare tyre
Oil Tank Square type-300L Aluminum alloy fuel tank
Heavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake SystemHeavy Duty 6x4 Diesel Cargo Truck 40T Load Capacity ABS Brake System
