Large Material Mobile Crushing Plant , Portable Jaw Crusher Vibrating Feeder
Large Material Mobile Crushing Plant , Portable Jaw Crusher Vibrating Feeder
Specifications
Brand Name :
YKcrusher
Model Number :
69
Certification :
iso9001
Place of Origin :
henan china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10
Packaging Details :
original packaging
Price :
negotiable
Description

Large Material Mobile Crushing Plant , Portable Jaw Crusher Vibrating Feeder

Mobile Jaw Crusher is used to crush the large material and screen the crushed materials primarily. This mobile jaw crusher is widely used in mine, building material, highway, rail way and hydropower industries, etc. The crushing and screening processes can be finished at one time to produce the required size and capacity.

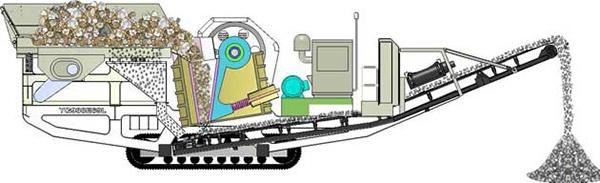

The Mobile Jaw Crusher includes Hopper,Vibrating Feeder, Jaw Crusher, Semi-trailer Chassis, and other supporting parts. The material is fed into the hopper by the loader. Vibrating Feeder can prescreen the material during its working process, and feed the bigger material into Jaw Crusher for primary crushing process. Then crushed material will be carried out by the belt conveyor.

SANME mobile jaw crusher has the advantage of reasonable match, unobstructed material discharge, reliable run, convenient operation, high efficiency and energy conservation. The good mobility can make it move in and between different quarries. It can also work with other plants to meet different requirements of customers.

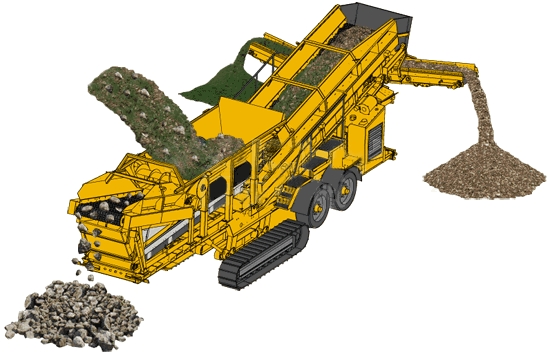

Large Material Mobile Crushing Plant , Portable Jaw Crusher Vibrating Feeder

Mobile jaw crusher technical data:

Model MP-J6 MP- J7 MP- J8 MP- J10
Size of Feed opening(mm×mm) 600×1060 760×1000 850×1150 1070×1400
Max Feed Size(mm) 500 630 720 950
Gap width(mm) 60-175 70-200 70-220 100-250
Capacity(t/h) up to 280 up to 400 up to 500 up to 800
Driving Unit
Engine Cummins Tier3 Cat C9 Cat C12 Cat C15
Motor Power (kw) 164 242 317 390
Feed Hopper
Hopper volume (m3) 6 7 8 10
Grizzly Feeder With Pre-screening
Drive hydraulic hydraulic hydraulic hydraulic
Main Conveyor Belt
Belt width (mm) 1000 1000 1200 1400
Discharge height (mm) 2900 3300 3800 4000
Drive hydraulic hydraulic hydraulic hydraulic
Side Conveyor Belt
Discharge height (mm) 2140 2400 3000 3200
Drive hydraulic hydraulic hydraulic hydraulic
For transportation the head-piece can be folded
Crawler Unit
Drive hydraulic hydraulic hydraulic hydraulic
Permanent Magnetic Separator
Magnetic separator option option option option
Dimensions and Weights
Working dimensions
-length(mm) 12600 14800 16000 16500
-width(mm) 4060 4100 4200 4300
-height(mm) 4160 4400 4400 6000
Transport dimensions
- length(mm) 12600 14600 16000 16000
- width(mm) 2760 2850 3200 3500
- height(mm) 3460 3900 3800 3900
Weight(t) Approximately 39 48 65 115

Large Material Mobile Crushing Plant , Portable Jaw Crusher Vibrating Feeder
