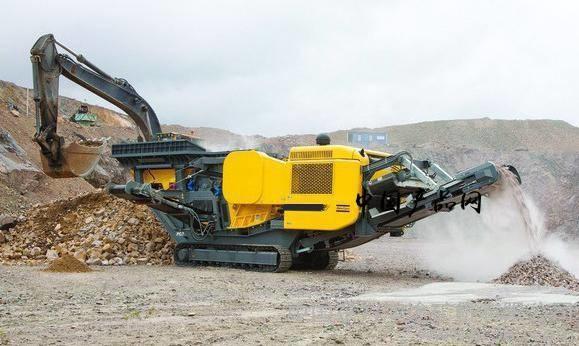

Track Mobile Rock Crusher Hydraulic Driven Employing Fully Rigid Board Structure
Track Mobile Rock Crusher Hydraulic Driven Employing Fully Rigid Board Structure
Specifications
Brand Name :
YKcrusher
Model Number :
85
Certification :
iso9001
Place of Origin :
henan china
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10
Packaging Details :
original packaging
Price :
negotiable
Description


Mobile crushers are loaded on their own crawler tracks or towed by truck horse when transported over longer distances to a new location. With tremendous flexibility and compact design, customers can take this machine directly to rock crushing plants or demolition sites for powerful, handy recycling of reusable construction materials, concrete debris, sand and gravel with economic efficiency.

Features

  • By adopting the advanced hybrid power design, it saves 30%~50% oil consumption.
  • Employing fully rigid board structure, the chassis features high strength, low contact pressure, good passing ability and good adaptability to hilly and marsh areas.
  • Operating system with imported direct servo technique can be easily and precisely controlled and travel in a infinite variable speed.
  • The stock bin baffle and side belt conveyor can be turnover by adjusting hydraulic cylinder, convenient for transport and maintenance.

Application

Hydraulic-driven track mobile plant are mostly use for crushing and screening in many areas, such as road construction, bridge construction, building, mining, metallurgical and energy industries, etc. Commonly materials like granite, marble, basalt, iron ore, copper ore, coal, slag and others are easily to be crushed by the crushing plant.

Technical Data

Crawler Type Mobile Cone Crushert/Screeing plant:

Model ParameterYG935E69YG1138E71LYG1138EW86LYG1138FW1315ⅡL
Feeder ModelGZD960×3500GZD1100×3800GZD1100×3800GZD1100×3800
crusher ModelPE600X900PE750X1060PEW860PFW-1315II
Main belt ModelB800X8.5MB1000X9MB1000X9MB1000X9M
Side of the belt conveyor ModelB450X3MB500X3.5MB500X3.5MB500X3.5M
Power(kw)180250200300
TransportationDimension(mm) (L×W×H)11900×3100×365011900×3100×365013300×3100×450013300×3100×4500
Jobs Dimension(mm) (L×W×H)12100×3100×410012100×3100×410013500×3100×510013500×3100×4800

Crawler Type Mobile Cone Crushert/Screeing plant:

Model ParameterYCS160LYHP220L3YZS1548AL3YZS1848AL3YZS1860AL3YZS1548BL3YZS1848BL3YZS1860BL
Equipment ModelCs160HPC2203YZS15483YZS18483YZS18603YZS15483YZS18483YZS1860
Belt feeder ModelGLD-12×4/15GLD-12×4/15
Feeding conveyor B1000×4MB1000×4MB1200×4.5MB1200×3MB1200×3MB1200×3M
Main belt ModelB1000X9MB1000X9MB800X9MB1000×5MB1000×5MB1000×8MB1200×8MB1200×9M
Belt conveyor under the screen B800×4.5MB1000×4.5MB1000×5.5MB1000×7MB1000×7MB1000×8M
The left discharging belt conveyor B500×7.3MB500×7.3MB500×7.3MB500×7.3MB500×7.3MB500×7.3M
The right discharging belt conveyor1 B500×7.3MB500×7.3MB500×7.3MB500×7.3MB500×7.3MB500×7.3M
The right discharging belt conveyor2 B500×7.3MB500×7.3MB500×7.3MB500×7.3MB500×7.3MB500×7.3M
Power(kw)270KW330KW120KW120KW120KW120KW120KW120KW
TransportationDimension(mm) (L×W×H)12000×
3240 ×3700		12500×
3240 ×3900		12500×
3240×3900		13500× 3300
×3900		13500× 3300
×3900		12500×
3240 ×3900		13500× 3300
×3900		13500× 3300
×3900
Received a high degree of material29003100310024002400
