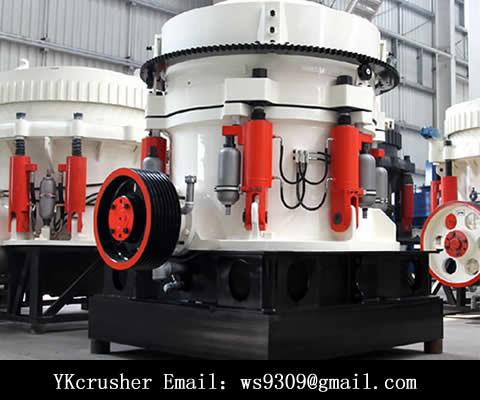

Fote Basalt Hp Cone Crusher With Overload Protection Cavity Cleaning System
Fote Basalt Hp Cone Crusher With Overload Protection Cavity Cleaning System
Specifications
Brand Name :
YK
Model Number :
HP300
Certification :
ISO9001
Place of Origin :
HENAN XINXIANG
MOQ :
1
TYPE :
HP
Packaging Details :
original packaging
Payment Terms :
L/C, D/A, D/P, T/T
Price :
negotiable
Description

The rotation of the motor is driven by the eccentric bushing via the belt wheel, coupling, transmission shaft and the cone device to circle around the fixed shaft. The crushing wall of cone crushers goes near or away from the roll surface of the adjusting sleeve. Materials in the crushing cavity are impacted, compressed and warped constantly, thus realizing the crushing process

Fote Basalt Hp Cone Crusher With Overload Protection Cavity Cleaning System

Solutions to common fault of cone crushers

When there are materials that are hard to crush or cone crushers are over loaded, the spring insurance system will work and the discharging throat will be wider for the foreign materials to be discharged from the crushing cavity. We can use the cavity cleaning system to assist the discharging process of the foreign materials. With the help of the spring, the discharging hole will be reset and the cone crusher will go back to work normally.

Advantages of cone crusher

Fote cone crushers adopt the hydraulic spring system to widen its application range from handling the limestone to basalt. Fote cone crusher machine does well in all crushing stages like rough, medium and fine crushing processes.

Fote Machinery is a famous cone crusher manufacturer and cone crusher supplier in Central China. Our cone crushers have the features of reasonable price and various types such as the fluid pressure cone crusher and PYB cone crusher. The China cone crusher can complete the rough, medium and fine crushing of the materials.

Technical Parameters

Specification Model Diameter
of large
end of
crushing
cone
(mm)		 Max.feeding
size(mm)		 Width of
discharge
opening
(mm)		 Processing
capacity
(t/h)		 Motor
power
(kw)		 Total
weight
(t)		 Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P 30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P 55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P 110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P 160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P 280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
