Industry Wheel Sand Ore Washing Machine Stable Operation Sealed Bearing
Industry Wheel Sand Ore Washing Machine Stable Operation Sealed Bearing
Specifications
Brand Name :
YK
Model Number :
2600
Certification :
ISO9001
Place of Origin :
HENAN CHINA
MOQ :
1
Packaging Details :
original packaging
Payment Terms :
L/C, D/A, D/P, T/T
Price :
negotiable
Description

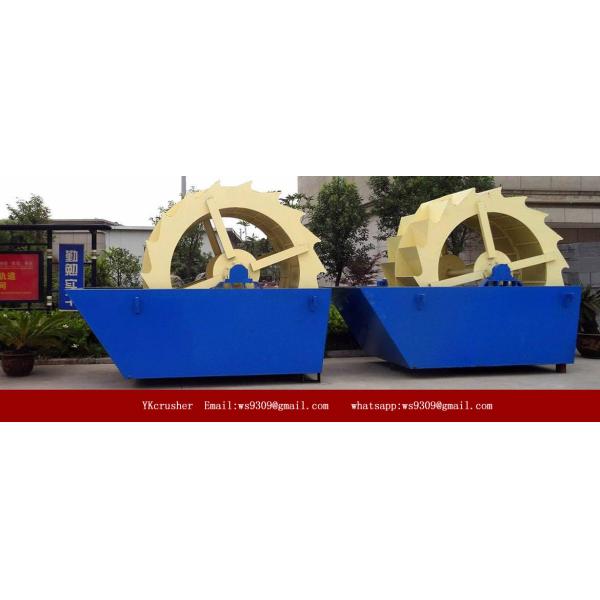

Industry Wheel Sand Ore Washing Machine Stable Operation Sealed Bearing

Sand washimg machine is designed for sand washing work. It is composed of gear, decelerator, bracket, setting chamber, impeller, belt pulley, electrical machinery and some important components. It not only can separate the contamination from the surface of the sand, but also can destroy the water vapor layer which on the outside of the sand material. That is convenient for dehydration in the next step. It can clean the silver sand efficiently and it is most popular device in washing sand. The most important is that it can wash a variety of sand material and the effect is all very well.

1, Strong ability to work, strong adaptability, strong throughput
2, Adopt wear resistant material, high usability of the components, long service time
3, High washing efficiency, reducing wastage in the process, the effect of washing is well, meet high-level sand materials’ using standard
4, Simple structure, stable operation, easy to operate, new worker can quickly get started, safe and reliable
5, Sealed bearing, avoiding the main transmission parts contract with material and water, reducing the breakdown of components and the risk of rust
6, A new kind of sealing structure and fully enclosed gear to make the entire device more stabilization, high efficiency, save energy and durable in the process
7, In the process, sand washer can destroy the water vapor layer to reach the double effect of cleaning and dewatering.
8, After washing, the material can achieve the classification of granularity and product specification
Industry Wheel Sand Ore Washing Machine Stable Operation Sealed Bearing
Model

Wheel Size

(mm)

Max feed size

(mm)

Power

(kW)

Weight

(t)

Capacity

(t/h)

Overall dimension

(mm)
XSD2610 Φ2600×1000 10 5.5 2.7 20-50 3255×1982×2690
XSD2816 Φ2800×1600 10 11 5.5 30-60 3540×3000×2880
XSD3016 Φ3000×1600 10 15 5.8 50-100 3845×3000×3080
