Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type
Specifications
Brand Name :
YK
Model Number :
WT
Certification :
ISO9001
Place of Origin :
HENAN CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
Mobile Impact Crusher
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Application :
Mining,ore,construction,quarry,stone
Description

Impact Crusher Station, Mobile Impact Crusher for Sale, Mobile Crushing Equipment, Crawler Type Impact Crusher Station

Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.

Product Introduction

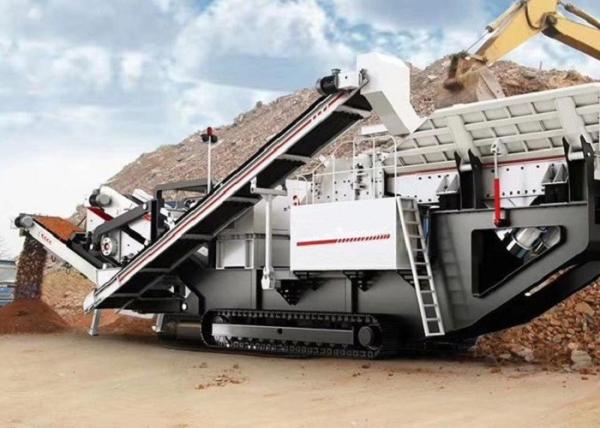

Crawler type impact crusher station are renown for their versatility and capabilities in the reduction and sizing of soft to medium natural granite and limestone and non-abrasive materials as well as recycling construction demolition waste.

Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type

Features

1. Closed or open circuit processes available

2. Single unit for primary and secondary applications

3. Processing of medium-hard stone like limestone

All rock-based demolition materials: bricks, concrete, asphalt.

Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type

Advantage and Benefits

Mobile impact crusher plant with the advantages of free foundation, easily move to different work sites, closes to crushing site, low transportation cost.

1.High Quality Impact Crusher

Reinforced impact crusher, double and three cavity impact crushers, all can be freely set from coarse crushing to fine crushing in accordance with the different processing requirements.

2.High Quality Thick Steel Frame Structure

High quality thick steel frame structure makes mobile crushing plant run smoothly, extending equipment’s service life.

3.Self-load Belt Conveyor

4.Vehicle-mounted Electronic Control Configuration

Vehicle-mounted electronic control configuration, space-saving, easy manipulation.

Stone Mining Mobile Rock Crusher / Mobile Impact Crusher Station Crawler Type

Technical Parameters

Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power ○ 6.12kw ○ 6.12kw ○
Sieve Dimensions ○ 1500×3600 ○ 1500×4200 ○
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ 1000×5800mm ○ 1000×6200mm ○
Dumping Height ○ 2900mm ○ 3000mm ○
Transferring Belt Conveyor Dimensions(Width×Length) ○ 650×2500mm ○ 650×2800mm ○
Dumping Height ○ 1400mm ○ 1400mm ○
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ 500×8000mm ○ 500×9200mm ○
Dumping Height ○ 4200mm ○ 4500mm ○
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

For customization, please contact us.
