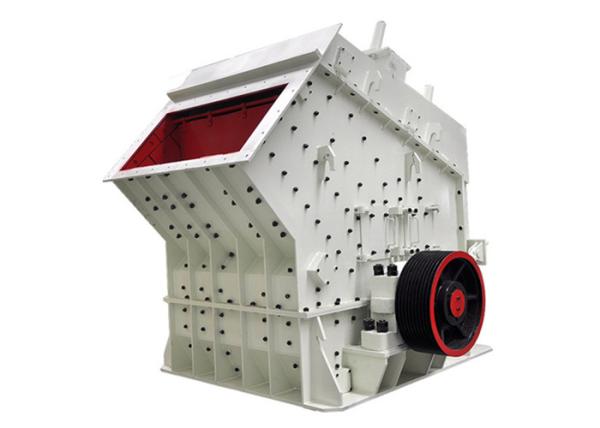

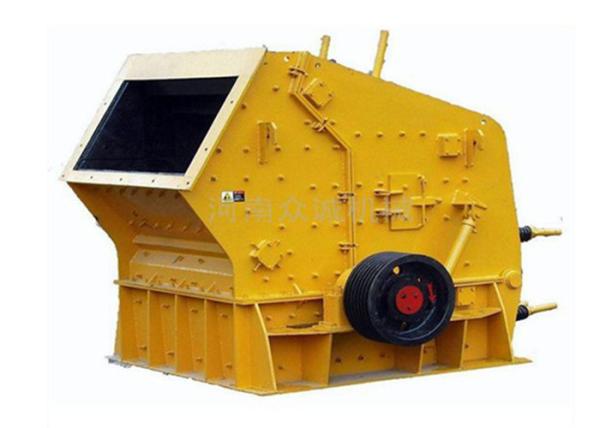

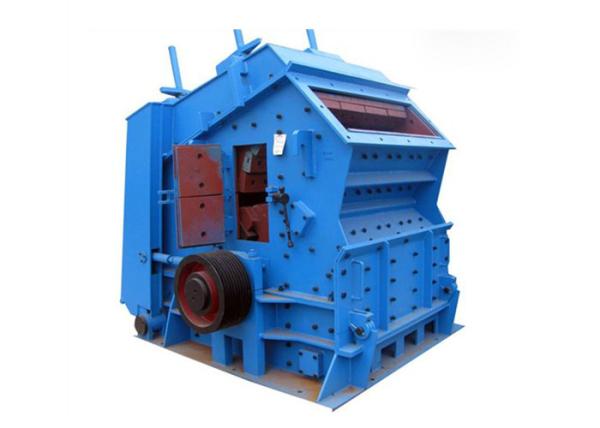

Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor
Specifications
Brand Name :
YK
Model Number :
CHP4939(A)
Certification :
ISO9001
Place of Origin :
HENAN CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
Impact Crusher
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Field installation,commissioning and training
Application :
Mining,Stone Industrial,Quarry,construction
Motor type :
AC Motor
Capacity (t/h) :
90-160
Power (kw) :
110-132
Weight (t) :
14
Description

CH Series Impact Crusher, Primary Impact Crusher, Simple Design Impact Sand Making Machine, Impact Rock Crusher

Product Description

CH series impact crusher is manufactured on the basis of advanced foreign technology and domestic applications. With the advantages of more human-oriented, simple design, reasonable structure, better cavity and large capacity, CH series impact crusher can crush all kinds of ores in primary and secondary crushing process.

Materials:Granite, limestone, concrete, lime, plaster, limestone, etc.

Applications:Mining, metallurgy, construction, highway, railroad, water conservancy, etc.

Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor

Features

1. Heavy type rotor with optimized design, reasonable structure and enhancing rotational inertia can take finite element endurance analysis. It can achieve higher crushing ratio, better crushing and abrasion resistance performance.
2. Standard scale board can increases interchangeability, which will decrease spare part repertory and variety, and make replacement much easier.
3. Unique hydraulic device design is convenient for operators to open the chassis, replace accessories, and adjust the discharge gate.
4. The simple structure of impact frame and grinding frame has the advantages of easy operation, convenient maintenance and low cost.

Simple Design Impact Rock Crusher / Stone Crusher Plant With AC Motor

Technical Parameters

Model Max Feed edge(mm) Capacity(t/h) Motor power(kW) Weight(Excluding Motor)(t)
with grinding cavity without grinding cavity
CHP4939(A) 500 90-160 110-132 14.696 13.596
CHP4955(A) 500 100-260 132-200 17.43 16.12
CHP5159(A) 600 180-300 200-250 21.2 22.12
CHP5559(A) 650 220-450 250-315 27.046 25.438
CHP5979(A) 700 250-550 400-440 36.45 34.3
CHP6379(A) 800 300-600 440-560 55.5 42.3
CHP7179(A) 1000 500-850 630 84.1 78.9
CHP7998(A) 1200 800-1200 1250 111.5 101.2

CHS4528(A) 250 40-70 37-55 11.8 10.98
CHS4539(A) 300 70-100 55-75 14.4 13.47
CHS4939(A) 350 100-180 110-132 14.696 13.596
CHS4955(A) 350 150-290 132-200 17.43 16.12
CHS5159(A) 400 180-350 200-250 21.05 22.04
CHS5559(A) 450 250-450 250-315 27.046 25.438
CHS5979(A) 500 280-550 400-440 36.7 34.6
CHS6379(A) 600 300-600 440-560 56.4 43.5
CHS7179(A) 700 500-850 630 84.1 78.9
CHS7998(A) 1000 700-1100 1250 115.6 109.5

Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
