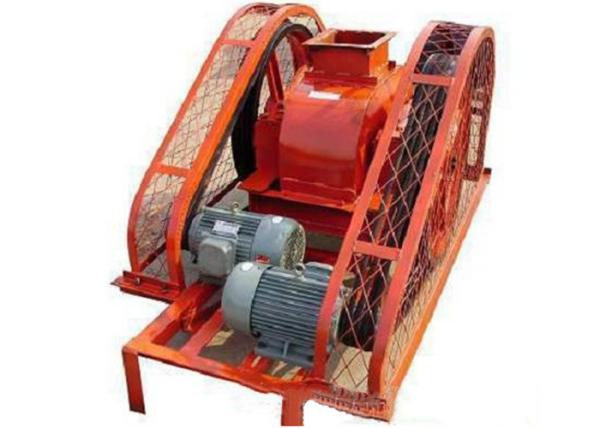

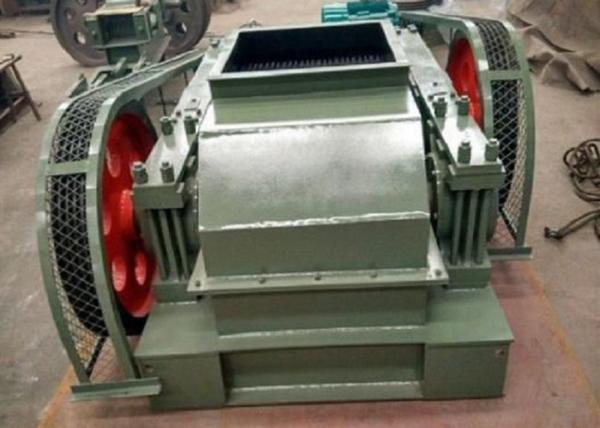

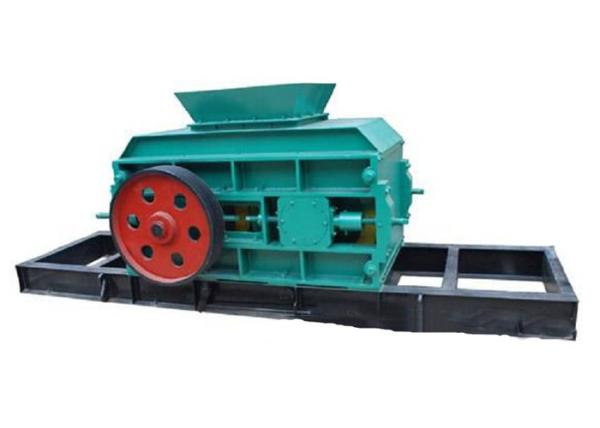

Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
Specifications
Brand Name :
YK
Model Number :
2PGC600×900
Certification :
iso9001
Place of Origin :
xinxiang china
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
Roll Crusher
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Field maintenance and repair service,Online support
Application :
Mining,Gold
Capacity (t/h) :
80-120
Weight :
7.2 t
Power :
37 kw
Dimensions (L×W×H)(mm) :
3265×2810×1442
Description

Double Toothed Roll Crusher Sand Processing Plant, Smooth Roll Crusher, Roller Crusher India, Roll Crusher For Sale

Product Introduction


The Toothed Roll Crusher is applicable to the industries of coal, metallurgy, mineral, chemical and construction materials, and It is more suitable to crushing raw coal (included gangue) of big coal mine or coal separating plant. The electrical motor and speed reducer is connected by distance limited hydraulic turbo coupling, which prevents the dynamic overload and sensor overload for safe operation. The distance between the toothed rolls is adjusted by hydraulic and the bearing of the toothed rolls is centralized lubricated. It has the features of optimal designing of gear shape, the choice crushing between tension and cutting, high efficiency with low consumption, uniform production size

Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight

Working Principle

Toothed Roll Crusher is worked by making two toothed roll rotate oppositely under the action of two pulleys on two sides of crusher, which driven by one motor or some motors. Thus the materials reaching the required size fall and discharged automatically, while the ones larger than two toothed rollers still left to be crushed until they reach the required size.

Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight

Features

1.Average discharging size without blocking up.

2. Automatically screening the materials after crushing.

3. High efficiency and low energy consumption.

4. Good flexibility and operational reliability.

5. Full-sealed design and no dust pollution.

6. Small vibration and low noise.

7. Removable shell which is convenient for daily maintenance and inspection of the machine.

Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight

Technical Parameters

Model

Feed Size

(mm)

Discharging Size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

Dimensions

(L×W×H)(mm)
2PGC450×500 ≤300 15-125 30-60 22 3.4 2492×2200×758
2PGC600×750 ≤600 15-150 60-100 30 6.9 3265×2780×1442
2PGC600×900 ≤600 15-150 80-120 37 7.2 3265×2810×1442
2PGC900×900 ≤700 15-200 100-160 60 13 3500×3300×1400
2PGC1250×1250 ≤800 20-300 150-300 110 36.5 7980×5872×2200
2PGC1200×1500 ≤800 20-300 200-500 150 55 8010×4900×2170

Double Tooth Roll Crusher Sand Processing Plant 37kw Power 7.2t Weight
