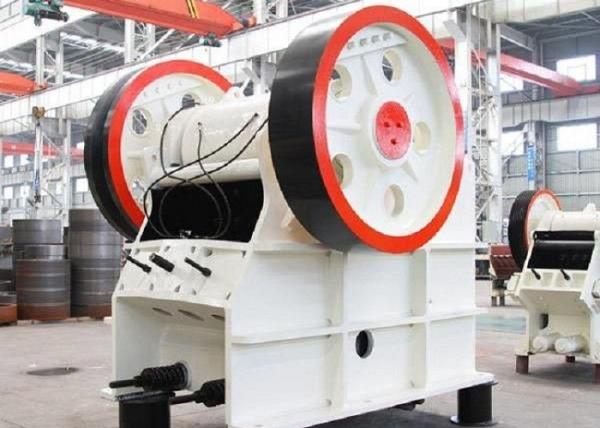

Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry
Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry
Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry
Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry
Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry
Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry
Specifications
Brand Name :
YK
Model Number :
PEY-600×900
Certification :
iso9001
Place of Origin :
henan china
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
Jaw Crusher
Condition :
New
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Application :
Mining,ore,construction,quarry,stone
Max.feed size (mm) :
500
Capacity (t/h) :
100-200
Power (kw) :
55-75
Weight (t) :
14
Description

Low Noise Hydraulic Jaw Crusher, Stone Crusher Machine, Hydraulic Jaw Crusher, Jaw Rock Crusher For Sale

Product Description

Hydraulic jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as ore,quartz, granite,limestone,slags, construction materials, marble, etc.
Hydraulic stone jaw crusher best suited to crushing compression strength not higher than 300MPa (MPa) of a variety of soft and hard ore, the largest block of the material to be broken is not greater than the technical parameters specified in the table.

Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry

Advantages of Hydraulic Jaw Crusher

1. low noise and creates little dust.
2. A single machine saves 15%-30% of energy consumed and the system can save over half the energy consumed.
3. Crushing cavity is deep without dead zone. It is easier to feed materials and yield higher output..
4.To meet different client needs, the discharge gate is designed with a large adjusting range.
5.The lubricating system is safe and reliable. It makes it easier to replace components and requires little maintenance.

Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry

Working Principle of Hydraulic Stone Crusher

When the hydraulic jaw crusher machine works, the motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.

Low Noise Hydraulic Jaw Crusher Jaw Rock Crusher For Construction / Quarry

Technical Parameters

Model Feed opening(mm) Max feeding (mm) Capacity
(t/h)		 Speed
(r/min)		 Power
(kW)		 Discharge opening
(mm)		 Weight
(t)
PEY-600×900 600×900 500 100-200 245 55-75 80-160 14
PEY-750×1060 750×1060 630 150-300 245 110 100-200 22.5
PEY-900×1200 900×1200 750 210-380 245 132 100-225 38
PEY-1000×1200 1000×1200 850 220-450 245 160 125-250 44.5
PEY-1200×1500 1200×1500 1100 400-900 200 220-250 150-300 78
