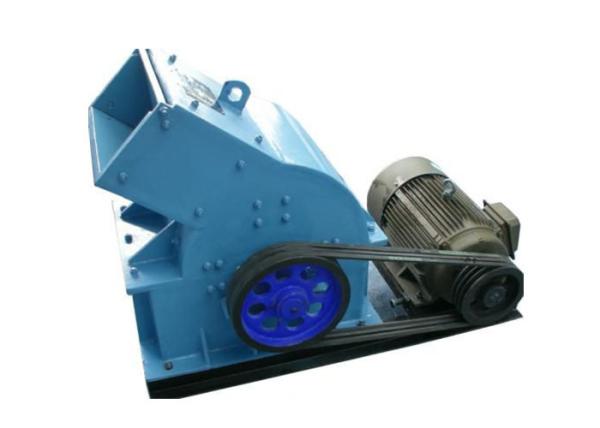

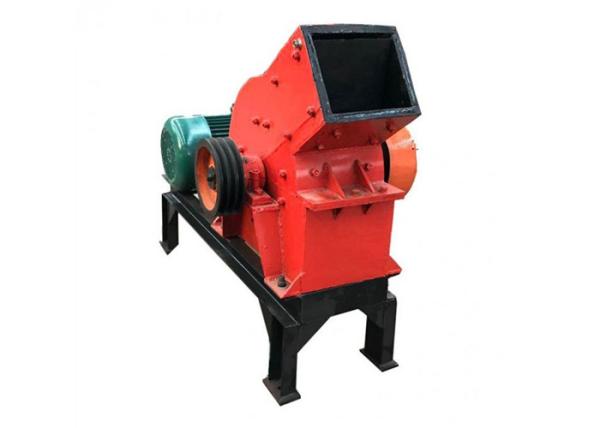

Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight
Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight
Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight
Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight
Specifications
Brand Name :
YKcrusher
Model Number :
PC 800x600
Certification :
iso9001
Place of Origin :
xinxiang china
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
hammer crusher
Condition :
New
Warranty :
1 Year
Port :
Qingdao, Tianjin, Shanghai, Guangzhou, or as request
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Field maintenance and repair service,Online support
Application :
copper,Mining,Gold
Capacity (t/h) :
20 to 35
Motor (KW) :
55
Weight (t) :
3.1
Description

Hammer Mill Rock Crusher, Stone Crusher Machine Price, Portable Rock Crusher, Rock Crushing Machine, Mini Rock Crusher

Product Description

A hammer crusher is a crusher whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers. The basic principle is straightforward. A hammer crusher is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size. The hammer crusher can be used as a primary, secondary, or tertiary crusher.

Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight

The Crusher is used for crushing ores, stones and other hard materials. From the upper hopper, we feed stone.Through the high speed movementof the hammer, the stones are finally smashed into powder.

Our hammer crusher are applicable for crushing various hard and fragile materials, such as limestone, coal, salt, alum, brick and tile, etc. The crushing raw material compressive strength should not exceed 150Mpa, the humidity should not beyond 15%.

Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight

Technical Parameters

Model Feed size
(mm)		 Discharge size
(mm)		 Capacity
(T/H)		 Motor
(KW)		 Weight
(T)
PC 400x300 less than 100 less than 10 5 to 10 11 0.8
PC 600x400 less than 120 less than 15 10 to 25 18.5 1.5
PC 800x600 less than 120 less than 15 20 to 35 55 3.1
PC 1000x800 less than 200 less than 15 20 to 40 90 7.9
PC 1000x1000 less than 200 less than 15 30 to 70 132 8.7
PC 1250x1250 less than 250 less than 25 50 to 100 185 10.5
PC 1300x1200 less than 250 less than 30 60 to 150 240 13.6
PC 1400x1400 less than 280 less than 30 120 to 170 280 16.2
PC 1600x1600 less than 350 less than 30 200 to 280 450 19.6

Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight

Hammer Mill Rock Crusher Beneficiation Machine 55KW Motor 3.1t Weight
