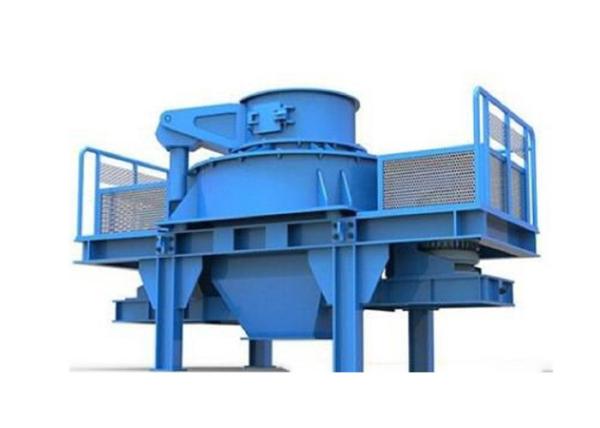

5X Centrifugal Crusher Sand Manufacturing Machine 1100 - 1310r/Min Rotation Speed
5X Centrifugal Crusher Sand Manufacturing Machine 1100 - 1310r/Min Rotation Speed
Specifications
Brand Name :
YK
Model Number :
5X1145
Certification :
ISO9001
Place of Origin :
HENAN CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
Vertical Shaft Impact Crusher
Condition :
New
Warranty :
1 Year
Raw Materials: :
Limestone, river gravel, rocks, bluestone, cobblestone, weathered sand, basalt, granite, quartz, diabase
Application :
All kinds of metal and non-metallic mineral, cement, refractories, abrasives, glass raw materials, construction aggregate, mechanism, metallurgy and other industries
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service,Field installation,commissioning and training,Online support
Capacity(t/h) :
250-640
Rotation speed(r/min) :
1100-1310
Double motor power(KW) :
400-440
Power :
380V,50Hz
Description

5X Centrifugal Crusher Sand Maker, Vertical Shaft Impact Crusher, Sand Processing Plant, Artificial Sand Making Machine

Product Description

The new series of 5X sand making machine set three kinds of crushing patterns in one, which is the core equipment in construction, mining, metallurgy industry, highways, railways, bridges, hydropower, mineral grinding areas and mechanism sand industry. 5X sand making equipment(centrifugal impact crusher) is widely used in a variety of metals and non-metallic minerals, cement, refractories, abrasives, glass raw materials, construction aggregate, sand mechanism, metallurgy and other industries. The sand maker is suitable for crushing various mid-hard ores and rocks, such as iron ore, nonferrous metal ores, silicon carbide, bauxite, quartz sand, corundum, basalt and other types of high hardness materials.

5X Centrifugal Crusher Sand Manufacturing Machine 1100 - 1310r/Min Rotation Speed

5X Centrifugal Crusher Sand Manufacturing Machine 1100 - 1310r/Min Rotation Speed

Technical Parameters

Model 5X7615 5X8522 5X9532 5X1145
Capacity(t/h) Central feeding with circular cascade feeding 150-280 240-380 350-540 500-640
Fully central feeding 70-140 120-200 180-280 250-360
Max feeding size(mm) Soft material < 35 < 40 < 45 < 50
Hard material < 30 < 35 < 40 < 45
Rotation speed(r/min) 1700-1900 1500-1700 1300-1510 1100-1310
Double motor power(KW) 110-150 180-220 260-320 400-440
Overall dimension L×W×H(mm) 4100×2330×2300 4140×2500×2700 4560×2600×2900 5100×2790×3320
Weight(t) 12.1 14.8 18.6 27.5
Power 380V,50Hz
Thin oil lubrication station 6
Double oil pumps motor's power(KW) 2×0.31
Safety Assurance Double oil pumps assure enough oil supply; Switch off automatically without oil flow or oil pressure. Lower the temperature with cool water in summer raise the temperature with motor in winter.
Overall dimension L×W×H (mm) 820×520×1270


5X Centrifugal Crusher Sand Manufacturing Machine 1100 - 1310r/Min Rotation Speed

5X Centrifugal Crusher Sand Manufacturing Machine 1100 - 1310r/Min Rotation Speed
