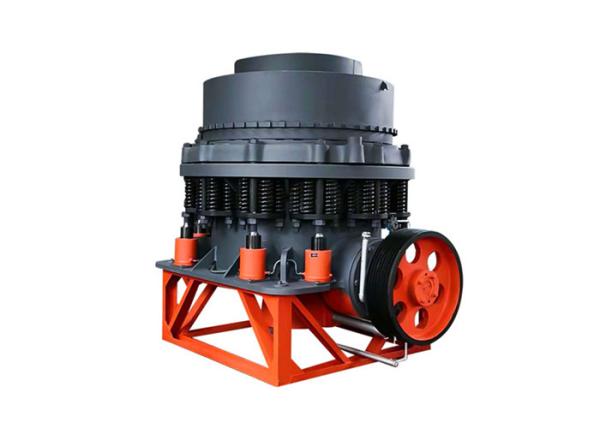

Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
Specifications
Brand Name :
YK
Model Number :
CSB160
Certification :
iso9001
Place of Origin :
henan china
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
Within 30 days after receipt of the equipment's deposit
Packaging Details :
standard container, spare parts will be packed in wooden cases
Type :
Cone Crusher
Condition :
New
Warranty :
1 Year
Application :
Mining,Quarry,construction,ore,chemical industry and Construction
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support
Capacity (t/h) Fine :
109-181
Capacity (t/h) medium :
132-253
Capacity (t/h) coarse :
172-349
Dimensions (mm) :
2800×2342 ×2668
Description

Spring CS Cone Crusher Overload Protective System High Grade Final Products, Cs Series Iron Ore Crusher Machine

Product Description
Comparing with other kinds of crushers, CS Series spring cone crusher is quite excellent in hard material crushing and the final product has good sharp. The innovations like stable lubrication system and excellent sealing system evidently reduce the production cost, helping you to achieve the highest level of profitability.

Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher

Features

1. High yields and high grade final products.

2. With grease seal and upstage sealing element imported from Japan, provide sturdy guarantee for long-playing stable operation of machine.

3. Overload protective system can effectively ensure safety of crusher.

4. Easy to control discharging size by using different crushing cavity and adjusting device.

Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher

Application

CS series spring cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.

Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher

Technical Parameters

Model Movable Cone Diametermm (inch) Chamber Style Opening Side Closed Side Discharging Opening (mm) REV (r/min) Power (kw) Motor Model Capacity (t/h) Machine Size (mm)
Max.Feeding (mm)
CSB75 900 (3′) medium 83 102 9-22 580 6-75 Y315S-6/75 45-91 2821×1880 ×2164
coarse 159 175 13-38 59-163
CSD75 914 (3′) fine 13 41 3-13 580 6-75 Y315S-6/75 27-90 2821×1880 ×2410
medium 33 60 3-16 27-100
coarse 51 76 6-19 65-140
CSB160 1295 (4 1/4′) fine 109 137 13-31 485 6-185 Y355M2-6/185 109-181 2800×2342 ×2668
medium 188 210 16-31 132-253
coarse 216 241 19-51 172-349
CSD160 1295 (4 1/4′) fine 29 64 3-16 485 6-160 Y355M1-6/160 36-163 2800×2342 ×2668
medium 54 89 6-16 82-163
coarse 70 105 10-25 109-227
CSB240 1650 (5 1/2′) fine 188 209 16-38 485 6-240 　 181-327 3911×2870 ×3771
medium 213 241 22-51 　 258-417
coarse 241 268 25-64 　 299-635
CSD240 1650 (5 1/2′) fine 35 70 5-13 485 6-240 　 90-209 3917×2870 ×3771
medium 54 89 6-19 　 136-281
coarse 98 133 10-25 　 190-336
CSB400 2134 (7′) fine 253 278 19-38 435 6-400 　 381-726 5200×4300 ×4700
medium 303 334 25-51 　 608-998
coarse 334 369 31-64 　 870-1400
CSD400 2134 (7′) fine 51 105 5-16 435 6-400 　 190-408 5200×4300 ×4700
medium 95 133 10-19 　 354-508
coarse 127 178 13-25 　 454-599

Spring Cone Crusher Machine Overload Protective System Iron Ore Crusher
