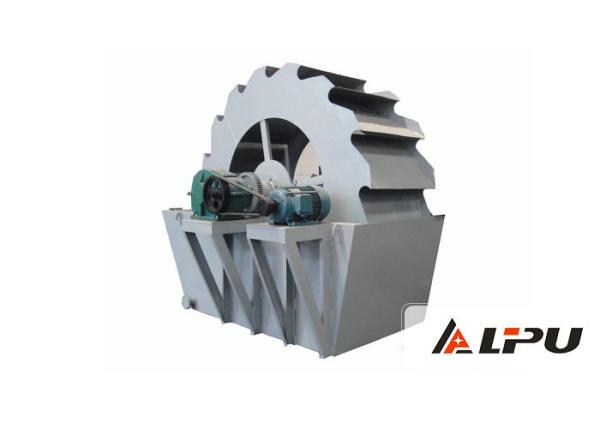

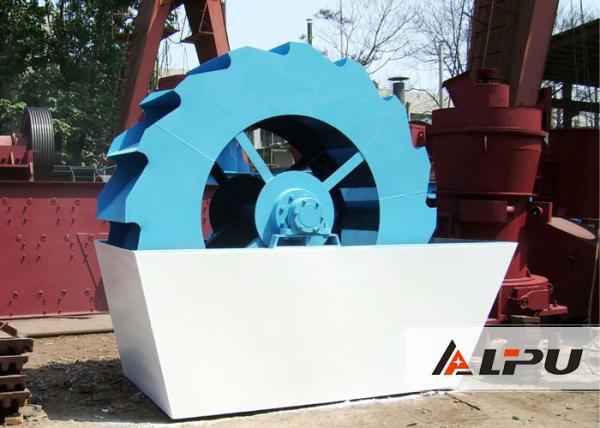

Industrial River Sand Washing Machine / Bucket Wheel Type Sand Washer
Industrial River Sand Washing Machine / Bucket Wheel Type Sand Washer
Industrial River Sand Washing Machine / Bucket Wheel Type Sand Washer
Industrial River Sand Washing Machine / Bucket Wheel Type Sand Washer
Specifications
Brand Name :
LIPU
Model Number :
XSD3015
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days after receiving advanced payment
Packaging Details :
Standard container or as customers' requirements
Product Name :
Industrial River Sand Washing Machine
Model :
XSD3015
Max input size :
10mm
Capacity :
50-160t/h
Power :
11kw
Overall dimension :
3880×2660×3250mm
Weight :
5.2t
Application :
quarry, mining, building materials
Color :
As customer's requirments
Condition :
New
Description

Industrial River Sand Washing Machine / Bucket Wheel Type Sand Washer

Introduction:

Industrial River Sand Machine Machine is the high efficiency sand washing equipment, which adopts advanced technology and combines with the fact of domestic sand industry:

1. This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by deeping in water, sand, or contamination.
2. This machine has obvious advantages compared with screw sand washing equipment.

a. The medium and fine sand are washed away less.
b. There is almost no wearing part except screen mesh.
c. The machine usage life is long.

Application:

Sand washer is widely used for the washing of the material in quarry, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station, etc.

Advantages:

good cleaning effect, reasonable structure, large handling capacity and low power consumption, transmission gear is separated from water and sand in order to reduce the failure rate.

Technical parameters:

Model

Max input size (mm)

Capacity (t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSD2215

10

25-95

5.5

2950×2530×2310

2.7

XSD2415

10

30-105

7.5

3200×2570×2530

3.4

XSD2615

10

35-120

7.5

3450×2570×2750

3.9

XSD2815

10

40-140

11

3650×2660×3000

4.5

XSD3015

10

50-160

11

3880×2660×3250

5.2

Note: No further notice if the technical parameters change .

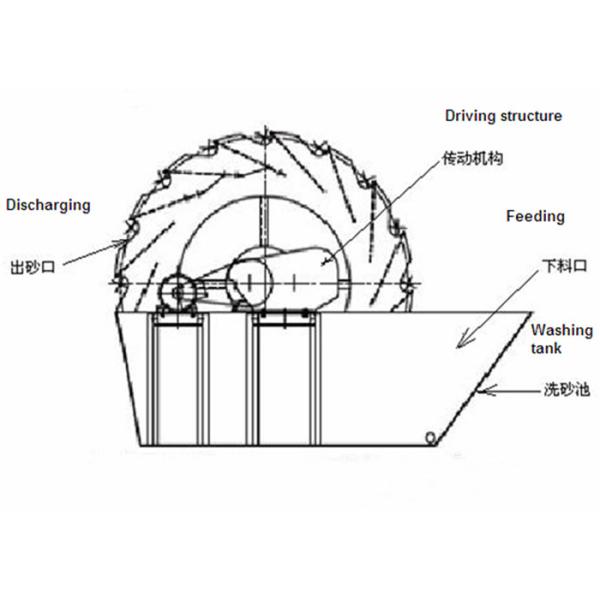

Machine Structure:

Sand washer is mainly composed of gear, reducer, frame, vane wheel, belt pulley, motor, washing tank, etc.

Industrial River Sand Washing Machine / Bucket Wheel Type Sand Washer
