Smooth Vibration Grizzly Vibrating Feeder Machine in Stone Crushing Plant GZD 1149
Smooth Vibration Grizzly Vibrating Feeder Machine in Stone Crushing Plant GZD 1149
Smooth Vibration Grizzly Vibrating Feeder Machine in Stone Crushing Plant GZD 1149
Smooth Vibration Grizzly Vibrating Feeder Machine in Stone Crushing Plant GZD 1149
Specifications
Brand Name :
LIPU
Model Number :
GZD1149
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Smooth Vibration Grizzly Vibrating Feeder
Model :
GZD1149
Vibration Frequency :
970 r/min
Double-amplitude :
4-6 mm
Capacity :
160-320 t/h
Power :
2×5.5 kw
Overall Dimension :
5010×1670×1710 mm
Weight :
4.3 t
Application :
Stone Crushing Plant
Color :
As customer's requirments
Quality :
High reputation
Description

Smooth Vibration Grizzly Vibrating Feeder Machine in Stone Crushing Plant GZD 1149

Introduction:

Grizzly Vibrating Feeders is mainly used to feed material into primary crusher evenly and continuously. Meanwhile, it can screen material and strengthen the capacity of the crusher. It adopts double eccentric shaft vibration exciter structural characteristics to ensure that equipment can withstand the impact of falling bulk materials and increase feeding capacity. In the production process, it can be massive and granular to sent materials from storage silos in uniform, regular and continuously way to the affected device, thus preventing the affected device from crash phenomenon due to uneven feeding, which will extend equipment life.

Features and Advantages:

1. Smooth vibration.

2. Special bar to prevent the block of raw material.

3. The distance between bars is adjustable.

4. Stepless speed-regulated motor which could be additionally mounted so as to control the feeding capacity without frequent start-up of motor.

Technical Data :

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight(t)

GZD0624

970

4-6

50-100

2×1.1

2510×1170×1290

1.6

GZD0830

970

4-6

90-150

2×1.5

3110×1370×1370

2.5

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

GZD1149

970

4-6

160-320

2×5.5

5010×1670×1710

4.3

GZD1249

970

4-6

180-380

2×5.5

5010×1770×1710

4.5

GZD1360

970

4-6

200-450

2×7.5

6120×1870×1950

5.7

GZD1560

970

4-6

240-590

2×11

6120×2070×1950

7.3

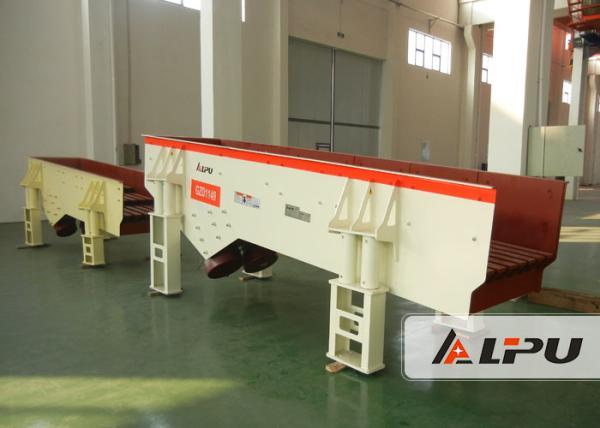

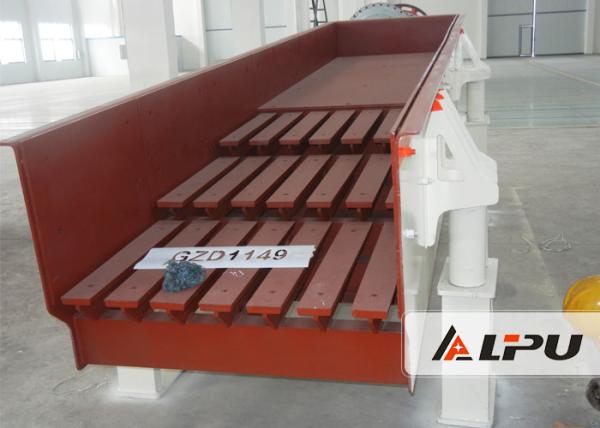

Product Picture Show:

Smooth Vibration Grizzly Vibrating Feeder Machine in Stone Crushing Plant GZD 1149
