Multi - layer Circular Vibratory Screening Equipment With High Screening Efficiency
Multi - layer Circular Vibratory Screening Equipment With High Screening Efficiency
Specifications
Brand Name :
LIPU
Model Number :
YK Series
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Multi - layer Circular Vibratory Screening Equipment
Model :
YK Series
Layer :
1-4
Dual Amplitude :
6-10 mm
Vibrating Frequency :
960-980 r/min
Capacity :
27-1600 t/h
Power :
4-55 kw
Weight :
1.7-14.4 t
Application :
building materials, energy, chemistry
Color :
As customer's requirments
Quality :
High reputation
Description

Multi - layer Circular Vibratory Screening Equipment With High Screening Efficiency

Introduction:

Circular Vibrating Screening Machine produced by Shanghai Lipu is of multilayer and high efficiency. It is particularly designed for separating materials into various sizes for further processing in crusher and widely used in building materials, energy, chemistry, etc. It adopts eccentric shaft vibration exciter and partial block which helps to adjust amplitude.

Performance Characteristics:

1. High screening efficiency because of the scientific structure and advanced technology.

2. Strong-vibrating force, stable operation, simple structure and easy maintenance.

3. Adoption of punching sieve or spring steel screen mesh weaving prevent blockage.

4. Long life span, low consumption, little noise.

Technical Parameters:

Model

Layer

Dual Amplitude

(mm)

Vibrating Frequency

(r/min)

Capacity

(t/h)

Power

(kW)

Overall Dimension

L×W×H (mm)

Weight

(t)

YK0824

1

6-10

960

27-150

4

3070×1350×1110

1.7

2YK0824

2

6-10

960

27-150

4

3070×1350×1110

1.8

YK1236

1

6-10

960

35-206

5.5

4270×1750×1240

2.8

2YK1236

2

6-10

960

35-206

5.5

4400×1750×1240

3

3YK1236

3

6-10

970

35-206

7.5

4520×1750×1560

3.5

YK1548

1

6-10

970

44-275

15

5520×2130×1370

4

2YK1548

2

6-10

970

44-275

15

5650×2130×1370

4.5

3YK1548

3

6-10

970

44-275

15

5760×2130×1690

5.5

4YK1548

4

6-10

970

44-275

18.5

5880×2130×2010

6

YK1848

1

6-10

970

56-400

18.5

5650×2430×1370

4.5

2YK1848

2

6-10

970

56-400

18.5

5650×2430×1370

4.8

3YK1848

3

6-10

970

56-400

22

5760×2430×1690

5.7

4YK1848

4

6-10

970

56-400

22

5880×2430×2010

6.4

YK1860

1

6-10

970

56-450

22

6740×2440×1410

5.4

2YK1860

2

6-10

970

56-450

22

6860×2440×1410

5.9

3YK1860

3

6-10

970

56-450

22

6990×2440×1760

7

4YK1860

4

6-10

980

56-450

30

7120×2440×2110

8

YK2160

1

6-10

980

80-720

30

6740×2740×1410

5.6

2YK2160

2

6-10

980

80-720

30

6860×2740×1410

6.1

3YK2160

3

6-10

980

80-720

30

6990×2740×1760

7.2

4YK2160

4

6-10

980

80-720

37

7120×2740×2110

8.5

YK2460

1

6-10

980

100-800

30

6740×3040×1410

5.9

2YK2460

2

6-10

980

100-800

30

6860×3040×1410

6.5

3YK2460

3

6-10

980

100-800

37

6990×3040×1760

8

4YK2460

4

6-10

980

100-800

37

7120×3040×2110

9.1

YK3070

1

6-10

980

180-1600

45

7740×3640×1540

7.5

2YK3070

2

6-10

980

180-1600

45

7860×3640×1540

9.3

3YK3070

3

6-10

980

180-1600

45

7990×3640×1890

12

4YK3070

4

6-10

980

180-1600

55

8120×3640×2240

14.4

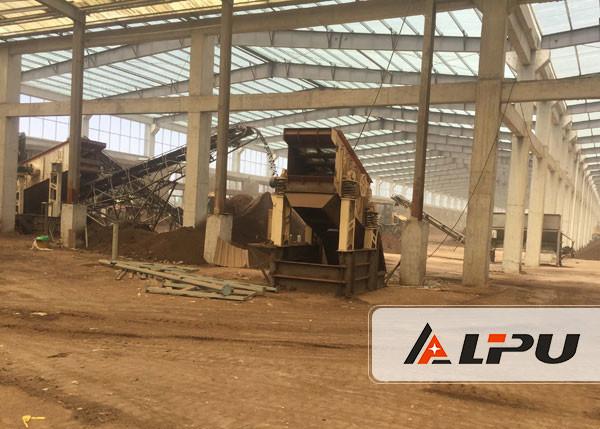

Working Site of Circular Vibrating Screen​:

Multi - layer Circular Vibratory Screening Equipment With High Screening Efficiency
