1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting
1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting
1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting
1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting
Specifications
Brand Name :
LIPU
Model Number :
ZSG1237
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Linear Vibrating Screen
Model :
ZSG1237
Sieve specification :
3700×1200 mm
Sieve layer :
1
Mesh size :
4-50 mm
Feeding size :
≤200 mm
Processing capacity :
10-100 t/h
Motor power :
5.5×2 kw
Condition :
New
Color :
As customer's requirments
Quality :
High reputation
Description

1 - 4 Sieve Layer Linear Vibrating Screen for Sand Ore Grading And Selecting
Description:

Linear Vibrating Screen uses excellent vibrating motor as power source. The materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration, etc.

Features:

1. Easy to operate and maintain.

2. Low consumption, high yield and low cost.

3. Fully enclosed structure, automatic layout, more suitable for pipeline operations.

4. Good sealing without dust flying.

5. Can be used for single or multi layer.

6. Material auto discharge system, continuous operation.

7. Every part of the screen box uses copper plate and section welded together.

Application:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Organic fertilizer industry.

3) Plastics industry.

4) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

5) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

6) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

7) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

8) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Technical Parameters:

Model

Sieve specification(L×W)

Sieve layer

Mesh size

Feeding size

Processing capacity

Motor power

Total weight

Vibrating frequency

Double amplitude

Sieve obliquity

Dimensions (L×W×H)

(mm)

(mm)

(mm)

(t/h)

(kw)

(kg)

(Hz)

(mm)

(℃)

(mm)

ZSG1237

3700×1200

1

4-50

≤200

10-100

5.5×2

2250

16

6-8

15

3800×2050×1920

2ZSG1237

3700×1200

2

4-50

≤200

10-100

5.5×2

3345

16

6-8

15

3800×2050×2200

ZSG1443

4300×1400

1

4-50

≤200

10-150

5.5×2

4100

16

6-8

15

4500×3040×2500

2ZSG1443

4300×1400

2

4-50

≤200

10-150

5.5×2

4900

16

6-8

15

4500×3040×2700

3ZSG1443

4300×1400

3

4-50

≤200

10-150

5.5×2

5870

16

6-8

15

4500×3040×2820

2ZSG1548

4800×1500

2

5-50

≤200

15-200

7.5×2

5836

16

8-10

15

4800×3140×2814

3ZSG1548

4800×1500

3

5-50

≤200

15-200

7.5×2

6900

16

8-10

15

4799×3140×3014

2ZSG1848

4800×1800

2

5-50

≤300

50-500

7.5×2

6489

16

8-10

15

4799×3440×2814

3ZSG1848

4800×1800

3

5-50

≤300

50-500

7.5×2

7750

16

8-10

15

4799×3440×3014

4ZSG1848

4800×1800

4

5-50

≤200

50-500

11×2

8300

16

8-10

15

4799×3440×3503

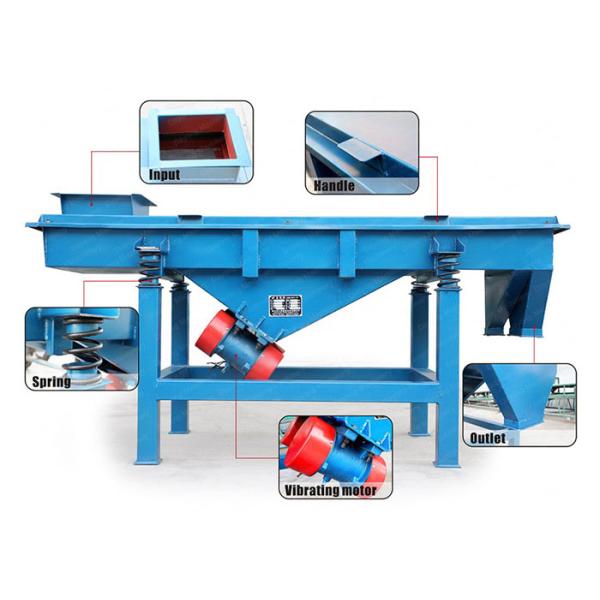

Linear Vibrating Screen Machine Structure:

1 - 4 Sieve Layer Linear Vibrating Screen Machine for Sand Ore Grading And Selecting
