GZD Series Vibrating Mining Feeder in Metallurgy And Mineral Dressing 200-450 TPH
GZD Series Vibrating Mining Feeder in Metallurgy And Mineral Dressing 200-450 TPH
GZD Series Vibrating Mining Feeder in Metallurgy And Mineral Dressing 200-450 TPH
GZD Series Vibrating Mining Feeder in Metallurgy And Mineral Dressing 200-450 TPH
Specifications
Brand Name :
LIPU
Model Number :
GZD1360
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
GZD Series Vibrating Mining Feeder
Model :
GZD1360
Vibration Frequency :
970 r/min
Double-amplitude :
4-6 mm
Capacity :
200-450 t/h
Power :
2×7.5 kw
Overall dimension :
6120×1870×1950 mm
Weight :
5.7 t
Application :
Metallurgy And Mineral Dressing
Color :
As customer's requirments
Quality :
High reputation
Description

GZD Series Vibrating Mining Feeder in Metallurgy And Mineral Dressing 200-450 TPH

Introduction:

The Vibrating Feeder (Vibratory feeder) is used to transfer the large size materials and granular materials from Silo to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly. It is also used to screen the materials in the sandstone production line. The Vibrating Feeder is widely used to match the crushing and sieving equipment in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, etc.

Working Principle:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like Para curve,

then fall down. The materials will move forward on the slope surface of the stone vibrating feeder price.

Features:

1. It can divide into two types: vibrating feeder and linear feeder.
2. It can realize the continuously and uniformly feeding for the crushing machines, as well as finish the coarse sieving on material.

Technical Data :

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight(t)

GZD1360

970

4-6

200-450

2×7.5

6120×1870×1950

5.7

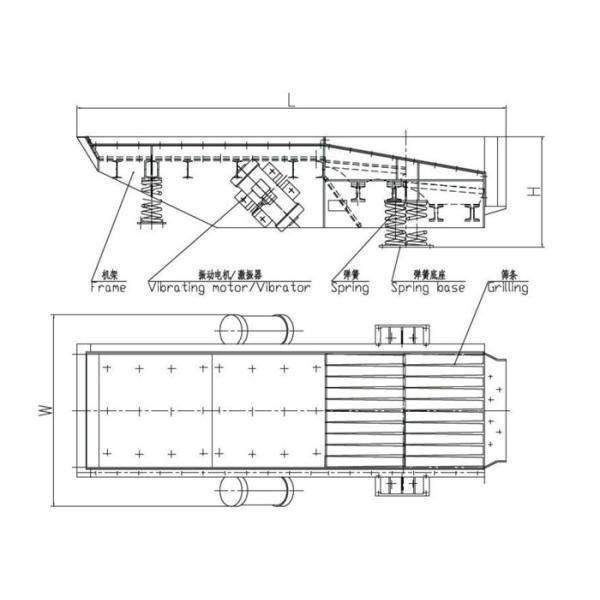

GZD Series Structural Drawing:

GZD Series Vibrating Mining Feeder in Metallurgy And Mineral Dressing 200-450 TPH
