Large Capacity Complete Stone Crushing Plant for Aggregate , Stone Jaw Crusher
Large Capacity Complete Stone Crushing Plant for Aggregate , Stone Jaw Crusher
Large Capacity Complete Stone Crushing Plant for Aggregate , Stone Jaw Crusher
Large Capacity Complete Stone Crushing Plant for Aggregate , Stone Jaw Crusher
Specifications
Brand Name :
Lipu
Model Number :
According to customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Complete Stone Crushing Plant for Aggregate
Model :
According to customer
Color :
According to customer
Condition :
New
Application :
Stone Crushing Industry
Description

Large Capacity Complete Stone Crushing Plant for Aggregate , Stone Jaw Crusher

Introduction:

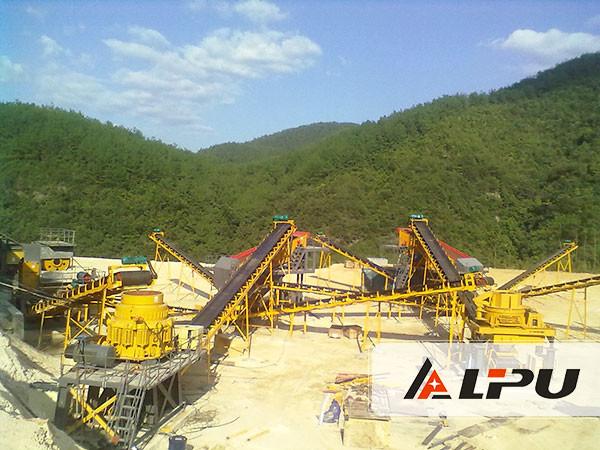

Lipu provides a complete stone crushing plant. It is widely used in road, bridge, house, high building, railway, highway, water project as well as types of construction materials, such as aggregate, foundation stone, etc.

Working Principle:

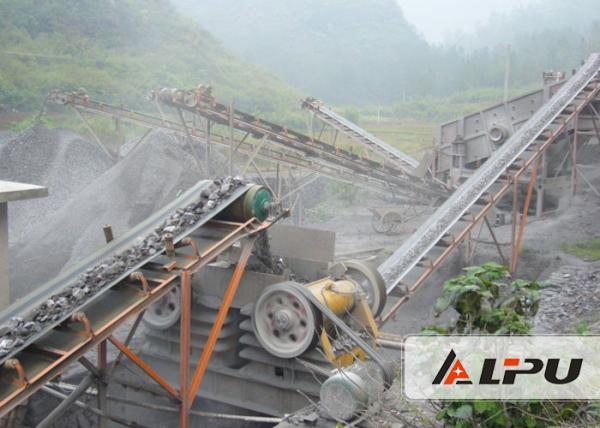

Big materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for primary crushing. After first crushing, the material will be transferred to impact crusher by belt conveyor for secondary crushing; the crushed materials will then be transferred to vibrating screen for separating. This step is very important in stone crushing plant. After separating, the parts that can meet standard will be transferred away as final products, while the other parts will return to impact crusher, thus forming a closed circuit. The final products can be combined and graded according to customers’ specific requirement. We can also equip dust catcher system to protect environment.

Features:

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4. Equipped with wedge adjustment devices, thus realizing automatic control and stepless adjustment.

Technical Data:

Processing

(t/h)

 Major equipment type, size, number
Feeding equipment

Crushing

equipment

Crushing

equipment

Classification and screening

equipment

 Belt Conveyor(m) Installed power(kw)
30 GZD8030 PE400×600 PF1008 2YK1235 60-90 120
50 GZD8530 PE400×600 PF1008 3YK1235 100-130 140
80 GZD9636 PE500×750 PF1010 3YK1545 130-160 200
100 GZD9638 PE600×900 PF1210 3YK1545 140-180 280
150 GZD1142 PE750×1060 PF1214 3YK1854 200-240 300
200 GZD1142 PE750×1060 PF1315 3YK1860 200 350
250 GZD1149 PE750×1060 PF1214/2 3YK2160 200 400
300 GZD1249 PE900×1200 PF1315/2 3YK2160 250 450
350 GZD1349 PE1000×1200 PF1315/2 3YK2460 250 500
450 GZD1349 PE1000×1200 PF1315/2 PF1214 3YK2160/2 350 600

Large Capacity Complete Stone Crushing Plant for Aggregate , Stone Jaw Crusher
