120-220 t/h VCII Sand Maker , Sand Making Machine for Mining , Highway , Railway
120-220 t/h VCII Sand Maker , Sand Making Machine for Mining , Highway , Railway
120-220 t/h VCII Sand Maker , Sand Making Machine for Mining , Highway , Railway
120-220 t/h VCII Sand Maker , Sand Making Machine for Mining , Highway , Railway
Specifications
Brand Name :
Lipu
Model Number :
VCⅡ8622
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Sand maker
Model :
VCⅡ8622
Capacity :
120-220t/h
Max. Feed Size :
50mm
Double Motor Power :
180-220kw
Overall Dimension :
4500×2100×3400mm
Weight :
9.2t
Application :
Mining Highway Railway
Description

120-220 t/h VCII Sand Maker , Sand Making Machine for Mining Highway Railway

Introduction:

This sand making machine is an advanced and high-efficiency equipment. It is the latest researched results basing on Germany technology. The machine is professional in producing qualified sand and stone for highway, high-speed railway, high building, city project, hydropower dam constructions, and concrete mixing plant. It is widely used in sand making and stone reshaping industry.

Features:

1. Oil supplied by two oil pumps, stops automatically if there is no oil; cooled by water, heating the motor firstly if starting the machine in winter.
2. Hydraulic lifting when changing or checking the spare parts which makes it easy and convenient in maintenance.
3. Famous brand SKF or TIMKEN of the bearing makes the machine work well.
4. Vibrating alarm device; if the crusher works abnormally, alarm will sound to make the machine stop working so as to protect the crusher.
5. Special feeding structure; rock on rock, and rock on iron in the crusher making the stone to be crushed and reshaped.
6. Unique dustproof seal system protects the lubrication parts from the dust outside.
7. Perfect design on material bumping angle reduces the friction between raw material and quick-wear parts, prolonging the service time of quick-wear parts and cutting the cost.

Technical Parameter :

Model

VCⅡ7515

VCⅡ8622

VCⅡ9532

VCⅡ1145

Capacity(t/h)

Center

feeding

70-150

120-220

170-320

260-450

Center

and side

feeding

90-200

150-290

220-420

340-590

Max. Feed

Size(mm)

40

50

50

50

Double

Motor

Power(kW)

110-150

180-220

260-320

400-440

Overall

Dimension/L×W×H(mm)

4100×2000×3200

4500×2100×3400

4800×2250×3800

5200×2400×4200

Transportation

Dimension/

L×W×H(mm)

4100×2000×2100

4500×2100×2200

4800×2250×2600

5200×2400×2850

Weight(t)

stone

strike

stone” crushing

cavity

7.8

9.2

12

15

stone strike

iron” crushing

cavity

8.9

10.5

13.8

17.5

Thin Oil Lubrication Station

Double Oil

Pump Power(kW)

2×0.37

Safety

Protection

Double Oil Pump feed each other; Automatic shutdown when

no oil return; Water cooling system; Automatic heating in low temperature.

Oil Tank

Heating

Power(kW)

2

Overall Dimension/L

×W×H(mm)

820×520×1270

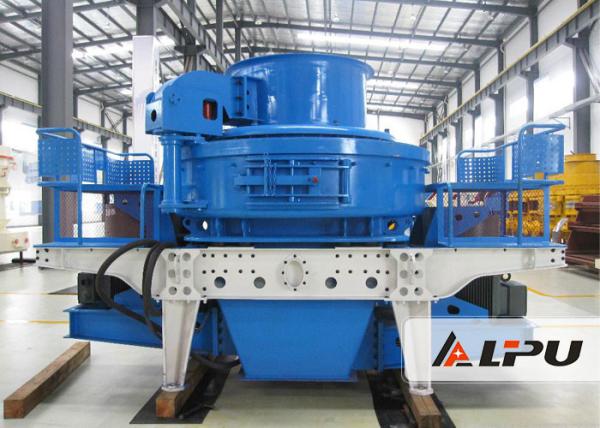

Product Picture Show :

120-220 t/h VCII Sand Maker , Sand Making Machine for Mining , Highway , Railway
