Specifications
Brand Name :
Lipu
Model Number :
SF0.7
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Flotation machine
Model :
SF0.7
Cell volume :
0.7m³
Impeller diameter :
350mm
Impeller speed :
400r/min
Capacity :
0.3-1m³/min
Main motor power :
3kw
Weight :
0.9t/cell
Condition :
New
Application :
Ore dressing plant
Description

High Working Efficiency Flotation Machine used in the Gold Ore Dressing Plant

Introduction of Flotation Machine:

Flotation machine is suitable for separation of non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovering useful minerals. This machine has the features of the big suction capacity and low power consumption. Every slot has the triple function of suction, grout and flotation which become the complete flotation circuit without any auxiliary equipment installing the machine in a actinic line it will be easier for the flow process change, the rational slurry cycle and furthest reducing the coarse sand sinking.

Working Principle of Flotation Machine:

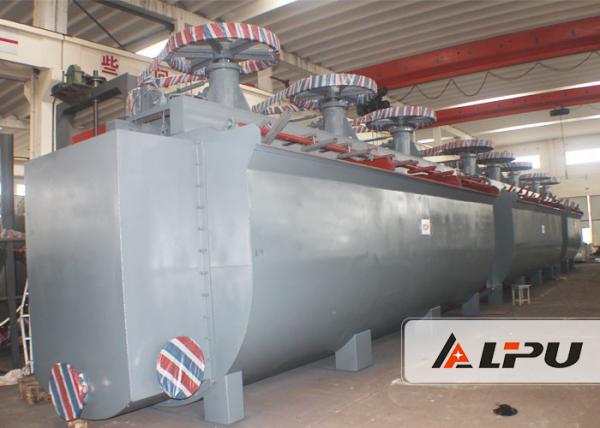

Flotation machine consists of flotation cells, impeller, belt pulley, inlet pipe, strobe, covering plate, standpipe, draw bar, etc.

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Features of Flotation Machine:

1. large air-absorption capacity.

2. low energy consumption.

3. less reagents consumption.

4. Easy maintenance and can be designed according to the users.

5. Every cell owns three functions: air absorption, slurry absorption, and flotation separation, and the cells form a flotation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow.

6. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.

Technical Parameters:

SF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Capacity

(m³/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

SF0.37

0.37

300

442

0.2-0.4

1.5

1.1

0.4

SF0.7

0.7

350

400

0.3-1

3

1.1

0.9

SF1.2

1.2

450

312

0.6-1.2

5.5

1.1

1.4

SF2.8

2.8

550

268

1.5-3.5

11

1.1

2.2

SF4

4

650

235

2-4

15

1.5

2.6

SF8

8

760

191

4-8

30

1.5

4.3

SF16

16

850

190

5-16

45

1.5

7.4

BF series Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Air inflow

(m³/m2.min)

Capacity

(m³/min)

Power

(kW)

Weight

(t/cell)

BF2.8

2.8

550

278

0.9-1.1

1.4-3

11

2.1

BF4

4

650

235

0.9-1.1

2.4-4

15

2.6

BF6

6

700

205

0.9-1.1

3-6

18.5

3.3

BF8

8

760

188

0.9-1.1

4-8

22

4.1

BF10

10

760

188

0.9-1.1

5-10

22

4.5

BF16

16

850

195

0.9-1.1

8-16

37

8.3

BF20

20

850

195

0.9-1.1

10-20

45

8.7

BF24

24

920

181

0.9-1.1

12-24

45

9

KYF series Inflatable Flotation Machine

Model

Cell volume(m³)

Impeller diameter

(mm)

Impeller speed

(r/min)

Air pressure of air blower

(kPa)

Max. Air inflow

(m3/m2.min)

Capacity

(m3/min)

Main motor power

(kW)

Scraper motor power

(kW)

Weight

(t/cell)

KYF1

1

340

281

≥12.6

2

0. 2-1

4

1. 1

0. 8

KYF2

2

410

247

≥14.7

2

0. 4-2

5. 5

1. 1

1. 5

KYF3

3

480

219

≥19.8

2

0. 6-3

7. 5

1. 5

1. 9

KYF4

4

550

200

≥19.8

2

1. 2-4

11

1. 5

2. 2

KYF8

8

630

175

≥21.6

2

3. 0-8

15

1. 5

4. 2

KYF16

16

740

160

≥25.5

2

4. 0-16

30

1. 5

6

KYF24

24

800

150

≥30.4

2

4. 0-24

30

1. 5

7. 5

KYF38

38

880

138

≥34.3

2

10-38

37

1. 5

10. 3

Case:

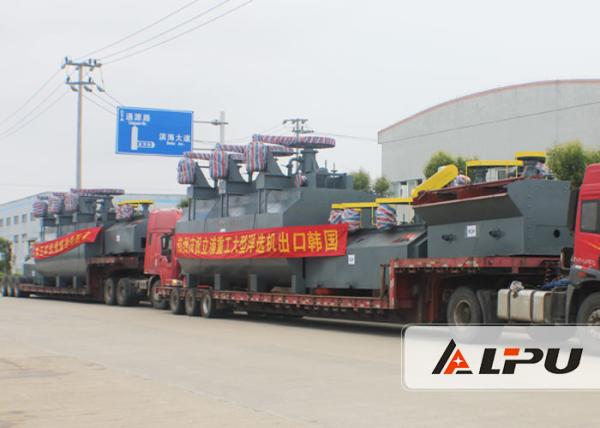

Flotation Machine Shipped to South Korea
