Jaw Crusher Stone / Granite Crushing Plant For Artificial Sand Making 30 - 800 TPH
Jaw Crusher Stone / Granite Crushing Plant For Artificial Sand Making 30 - 800 TPH
Jaw Crusher Stone / Granite Crushing Plant For Artificial Sand Making 30 - 800 TPH
Jaw Crusher Stone / Granite Crushing Plant For Artificial Sand Making 30 - 800 TPH
Specifications
Brand Name :
Lipu
Model Number :
According to customer
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Stone Crushing Plant
Feeding Equipment :
GZD1142
Crushing Equipment :
PF1315
screening equipment :
3YK1860
Belt Conveyor :
200m
Installed power :
350kw
Description

30-800 TPH Stone Crushing Plant for Artificial Sand Making , Jaw Crusher

Introduction of Stone Crushing Plant

Lipu manufactures various equipment for whole set of stone production line, and provide complete technical support for customers. The whole production line consists of Vibrating Feeder, Jaw Crusher, Impact Crusher, Vibrating Screen, Belt Conveyor, Electric Control, etc.

We design different production lines ranging 30 t/h to 800t/h by combining different models of equipment also matching Cone Crusher, deduster, etc. It is widely used for crushing hard limestone, granite, basalt, gravel, metallurgic slag, etc or artificial sand making for hydroelectric power, building material, high way, city construction, etc. Different models of equipment are combined to meet different customers' demands according to different craft requirements.

Process of Stone Crushing Plant

Big size stones are transferred to primary crusher through Vibrating Feeder from hopper for first crushing, then the crushed materials are transferred to Impact Crusher through Belt Conveyor for secondary crushing. The crushed materials will be transferred to the vibrating screen, and separated to different sizes.

Those aggregate with suitable size will be transferred to the final product pile and those with unsuitable size will be transferred to the Impact Crusher for re-crushing. This forms a closed circuit manifold cycles. The sizes of final products will be graded and separated according to customers' requirements, and the deduster will be attached for the sake of environment protection.

Technical Data:

Processing

(t/h)

 Major equipment type, size, number
Feeding equipment

Crushing

equipment

Crushing

equipment

Classification and screening

equipment

 Belt Conveyor(m) Installed power(kw)
30 GZD8030 PE400×600 PF1008 2YK1235 60-90 120
50 GZD8530 PE400×600 PF1008 3YK1235 100-130 140
80 GZD9636 PE500×750 PF1010 3YK1545 130-160 200
100 GZD9638 PE600×900 PF1210 3YK1545 140-180 280
150 GZD1142 PE750×1060 PF1214 3YK1854 200-240 300
200 GZD1142 PE750×1060 PF1315 3YK1860 200 350
250 GZD1149 PE750×1060 PF1214/2 3YK2160 200 400
300 GZD1249 PE900×1200 PF1315/2 3YK2160 250 450
350 GZD1349 PE1000×1200 PF1315/2 3YK2460 250 500
450 GZD1349 PE1000×1200 PF1315/2 PF1214 3YK2160/2 350 600

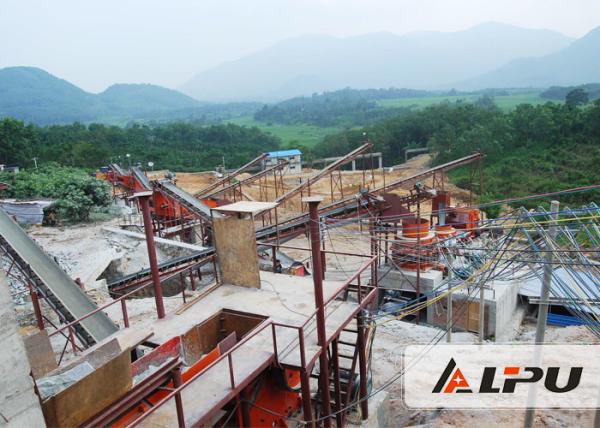

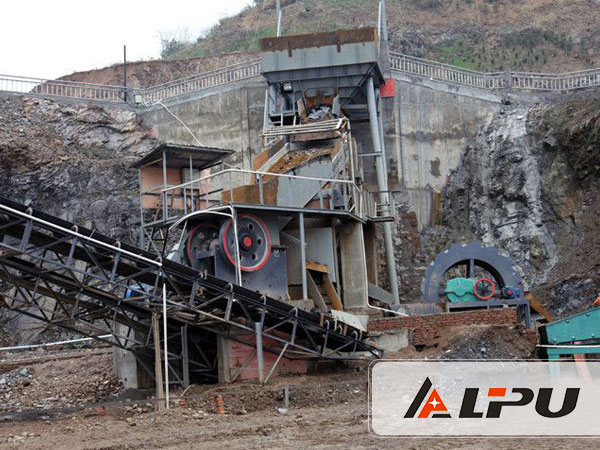

The Working Site of Stone Crushing Plant

Jaw Crusher Stone / Granite Crushing Plant For Artificial Sand Making 30 - 800 TPH
