Bucket Wheel Sand Cleaning Equipment With Max Input 10mm / IQNet Approved
Bucket Wheel Sand Cleaning Equipment With Max Input 10mm / IQNet Approved
Bucket Wheel Sand Cleaning Equipment With Max Input 10mm / IQNet Approved
Bucket Wheel Sand Cleaning Equipment With Max Input 10mm / IQNet Approved
Specifications
Brand Name :
LIPU
Model Number :
XSD3015
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days after receiving advanced payment
Packaging Details :
Standard container or as customers' requirements
Product Name :
Sand Washer Machine
Model :
XSD3015
Max input size :
10mm
Capacity :
50-160t/h
Power :
11kw
Overall dimension :
3880×2660×3250mm
Weight :
5.2t
Application :
quarry, minerals, building materials, transportation
Color :
As customer's requirements
Condition :
New
Description

Max Input 10mm Bucket Wheel Sand Washer Sand Cleaning Equipment

Introduction of Sand Washer:

This bucket sand washer is widely used in sand and gravel field, mine, building material, traffic, chemical, water resource and hydropower, concrete mixing station, metallurgy, building materials, water and electrical, etc. It suits to fine grained and coarse-grained materials washing and choosing. This bucket sand washer machine is one kind of wheel and bucket washing and choosing equipment, washing and separating stone powder and mud in sand.

Features of Sand Washer

1. Simple structure, long service life.

2. Transmission shaft of the wheel is isolated from the materials with water to avoid damage.

3. Erosion of the fine aggregate is slight and has no wear parts except screen shaft.

4. When the machine starts up, the hydraulic motor will drive the wheel to rotate through the hydraulic system.

5. The dinas is sent to the washing and selecting tank through the feeding tank, then sent to the dewatering screen to dehydrate after the dewatering of the wheel selecting and washing.

6. Impurities in dinas are eliminated by the washing and selecting rabbet.

Technical parameters:

Model

Max input size (mm)

Capacity (t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

Weight

(t)

XSD2215

10

25-95

5.5

2950×2530×2310

2.7

XSD2415

10

30-105

7.5

3200×2570×2530

3.4

XSD2615

10

35-120

7.5

3450×2570×2750

3.9

XSD2815

10

40-140

11

3650×2660×3000

4.5

XSD3015

10

50-160

11

3880×2660×3250

5.2

Note: No further notice if the technical parameters change .

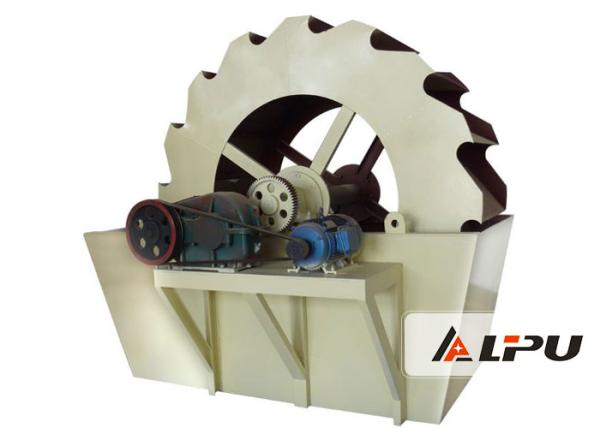

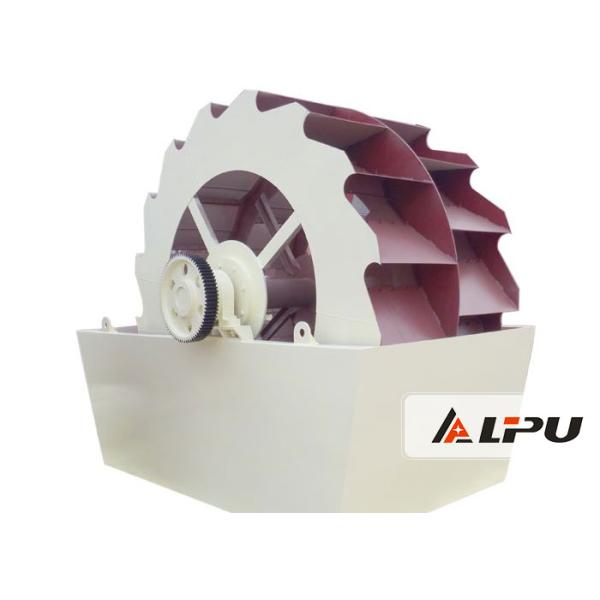

Product Picture Show:

Bucket Wheel Sand Cleaning Equipment With Max Input 10mm / IQNet Approved

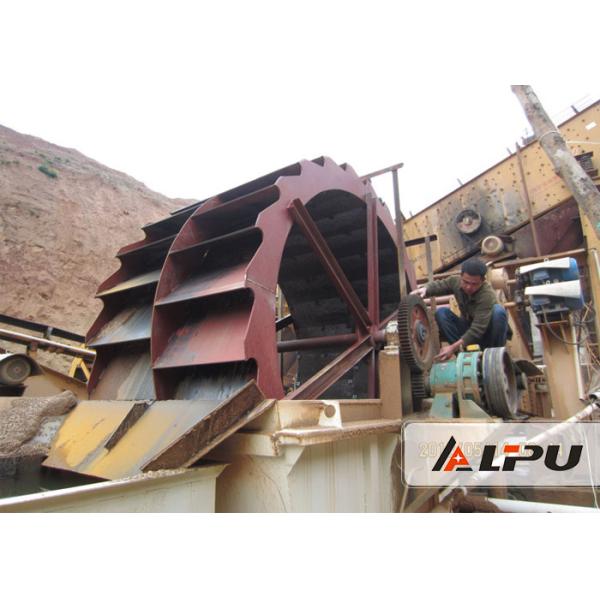

Working Site of Sand Washer:

Bucket Wheel Sand Cleaning Equipment With Max Input 10mm / IQNet Approved
