2.5t Large Capacity Linear Vibratory Feeder For Metallurgy Mine Building Material
2.5t Large Capacity Linear Vibratory Feeder For Metallurgy Mine Building Material
2.5t Large Capacity Linear Vibratory Feeder For Metallurgy Mine Building Material
2.5t Large Capacity Linear Vibratory Feeder For Metallurgy Mine Building Material
Specifications
Brand Name :
LIPU
Model Number :
GZD0830
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Vibrating Feeder
Model :
GZD0830
Vibration frequency :
970r/min
Double-amplitude :
4-6mm
Capacity :
90-150t/h
Power :
2×1.5kw
Overall Dimension :
3110×1370×1370mm
Weight :
2.5t
Application :
Metallurgy, Mine, Building Material
Color :
As customer's requirments
Quality :
High reputation
Description

Stable Vibration Mining Linear Vibrating Feeder in Metallurgy Mine Building Material

Introduction of Vibrating Feeder:

Vibrating feeder made by our company are linear vibrating feeder series; it can feed material continuously and evenly for crushing machinery, and screen the materials.

Application of Vibrating Feeder:

1) Vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials.

2) Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.

2.5t Large Capacity Linear Vibratory Feeder For Metallurgy Mine Building Material

Product Feature of Vibrating Feeder:

1. Stable vibration and stable working performance.

2. Special paling design, in order to prevent stuck of the materials.

3. The clearance of the paling is adjustable.

4. It is configured with relatively more abrasion-resistant parts.

5. In order to protect the abrasion-resistant parts from being wore by fine materials, fine minerals are separated to improve output.

6. Variable frequency adjustable speed motor is available. By virtue of changing frequency, it can change the output, control the feeding quantity and resolve the problem of frequently starting motor.

Technical Data :

Model Vibration frequency(r/min) Double-amplitude(mm) Capacity(t/h)

Power

(kW)

Overall dimension

L×W×H(mm)

 Weight(t)
GZD0624 970 4-6 50-100 2×1.1 2510×1170×1290 1.6
GZD0830 970 4-6 90-150 2×1.5 3110×1370×1370 2.5
GZD9538 970 4-6 120-210 2×3 3910×1520×1460 3
GZD1149 970 4-6 160-320 2×5.5 5010×1670×1710 4.3
GZD1249 970 4-6 180-380 2×5.5 5010×1770×1710 4.5
GZD1360 970 4-6 200-450 2×7.5 6120×1870×1950 5.7
GZD1560 970 4-6 240-590 2×11 6120×2070×1950

7.3

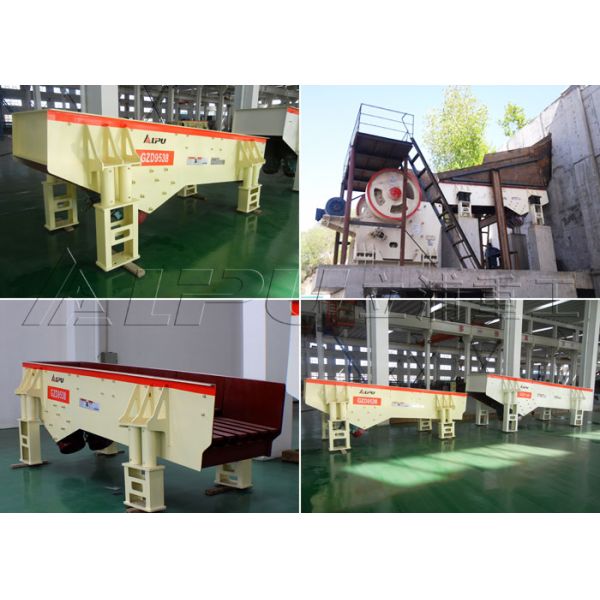

Product Picture Show:

2.5t Large Capacity Linear Vibratory Feeder For Metallurgy Mine Building Material
