Stainless Steel Drum Bentonite Rotary Dryer in Metallurgy Chemical And Cement Industry
Stainless Steel Drum Bentonite Rotary Dryer in Metallurgy Chemical And Cement Industry
Stainless Steel Drum Bentonite Rotary Dryer in Metallurgy Chemical And Cement Industry
Stainless Steel Drum Bentonite Rotary Dryer in Metallurgy Chemical And Cement Industry
Specifications
Brand Name :
Lipu
Model Number :
2.2×11.8
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Stainless Steel Bentonite Rotary Dryer
Model :
2.2×11.8
Outer cylinder diameter :
2.2m
Outer cylinder length :
11.8m
Cylinder volume :
44.8m³
Cylinder rotary speed :
1-4r/min
Power :
22kw
Color :
According to Customer
Application :
Metallurgy Chemical And Cement Industry
Weight :
30.5t
Description

Stainless Steel Drum Bentonite Rotary Dryer in Metallurgy Chemical And Cement Industry

Introduction of Rotary Dryer

• The rotary dryer is widely used for drying the chalk slags, coal powder, slags, clay and other materials in the building materials, metallurgy, chemical industry, cement industry.

• In our company, this series applies the new type scatter plate device.

Technical Advantages of Rotary Dryer

• Our dryer adopts new spreading plate device, which has guidance, flow, material functions.

• It can make the material content in the dryer radial cross section to full uniform, material will become thin and all.

• The state of the heat flow entirely, to achieve the purpose of make full use of the heat.

• Our dryer choose reasonable operating parameters, coal consumption and power consumption of general baked dry machine more than 10-15%, one machine yields above 10-15%.

Working Principle of Rotary Dryer

1. Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.

2. Materials enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together.

3. Materials go to the lower side by gravity when the barrel is rotating.

4. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer.

Technical Parameters:

Model

Cylinder diameter

(mm)

Cylinder length

(mm)

Cylinder volume

(m3)

Cylinder

rotary speed (r/min)

Power

(kW)

Weight

(t)

2.2×11.8

2200

11800

44.8

1-4

22

30.5

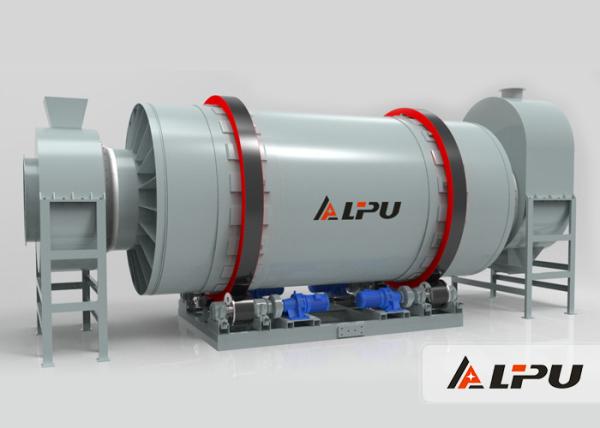

Product Picture Show:

Stainless Steel Drum Bentonite Rotary Dryer in Metallurgy Chemical And Cement Industry
