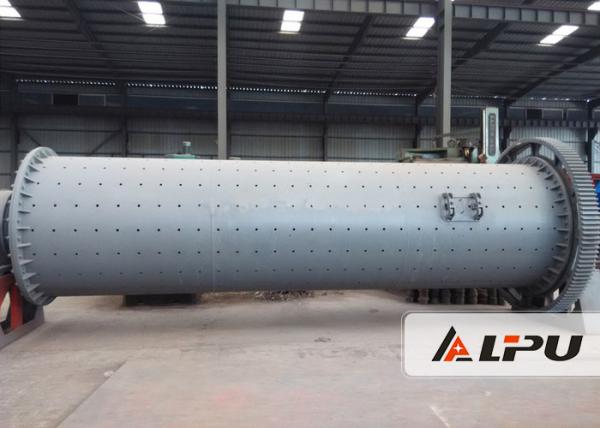

Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine
Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine
Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine
Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine
Specifications
Brand Name :
Lipu
Model Number :
3600×7000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Mill Equipment
Model :
3600×7000
Color :
According to customer
Condition :
New
Application :
Cement Plant
Effective volume :
66.6m3
Capacity :
61-113t/h
Power :
1600kw
Weight :
245t
Rotary speed :
17rpm
Description

Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine

Introduction of Cement Mill:

Cement Mill is main equipment for grinding raw material and clinker in cement plant, used in individual grinding system and closed circuit grinding system combined with powder concentrator. It is also used in grinding middle hardness materials in metallurgical, electricity, chemical industry and other grinding materials.

Features of Cement Mill:
1. Large application range, simple structure and convenient maintenance;
2. Large capacity and continuous operation;
3. Barrel lining and grinding media can apply various abrasive materials;
4. Installation and adjustment are very convenient and easy to be operated.
Working Principle of Cement Mill:

The Cement mill is a horizontal cylinder rotating device driven by gears with two silos. The materials get into the first silo through the feeding quill shaft from the feeding device spirally and evenly. There are ladder lining board and corrugated lining board in the first silo loaded with steel balls of different sizes. The centrifugal force produced by the rotation of the cylinder raises the steel balls to a certain height which then fall down, thus making thumping and abrading to the materials. After the coarse grinding in the first silo, the materials get into the second silo through the monolayer partition panel with flat lining board embedded with steel sections for further crushing. The powder of the materials will be discharged from the unloading board to finish the grinding work.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ3600×7000 66.6 93 116 139 61-113 121-225 140-260 1600 17 245

The Machine Spare Parts:

Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine

Product Picture Show:

Continuous Operation Cement Ball Mill Equipment , Ball Grinding Mill Machine
