Cement Tube Ball Mill For Drying And Grinding Coal , Capacity 61-113t/h Grinding Ball Mill
Cement Tube Ball Mill For Drying And Grinding Coal , Capacity 61-113t/h Grinding Ball Mill
Cement Tube Ball Mill For Drying And Grinding Coal , Capacity 61-113t/h Grinding Ball Mill
Cement Tube Ball Mill For Drying And Grinding Coal , Capacity 61-113t/h Grinding Ball Mill
Specifications
Brand Name :
Lipu
Model Number :
3600×7000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Mill
Model :
3600×7000
Color :
According to customer
Condition :
New
Application :
Drying And Grinding Coal
Effective volume :
66.6m3
Capacity :
61-113t/h
Power :
1600kw
Weight :
245t
Rotary speed :
17rpm
Description

Cement Tube Ball Mill For Drying And Grinding Coal Capacity 61-113t/h

Introduction of Cement Tube Ball Mill

Cement Tube Ball Mill is major equipment of cement plant and used for drying and grinding coal. The equipment mainly consists of feed device, main bearings, rotating parts, drive device, selling device, high-voltage start-up device and lubrication system. The raw material is fed into mill by feeding equipment. The hot wind enters into the mill by inlet end. As the mill cylinder rotates, the coal and hot air exchange heat in the mill. The coal is crushed and grinded in the mill. When the coal is being grinded, the powder is brought out of the mill by the hot air going through the mill.

Application of Cement Tube Ball Mill

It is widely used for dry or wet powder grinding operation of ore grinding before dressing ferrous and non-ferrous metal, raw material or finished product of cement,

chemical industry, novel construction material, refractory material, etc.

Structure Cement Tube Ball Mill

Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ900×1800 1 1.3 1.7 2 0.9-1.6 1.7-3.2 2-3.7 15 37 4.2
φ900×2100 1.1 1.5 1.9 2.3 1-1.9 2-3.7 2.3-4.3 18.5 37 4.9
φ900×3000 1.6 2.2 2.8 3.3 1.4-2.7 2.9-5.4 3.3-6.2 30 37 7.6
φ1200×2400 2.4 3.3 4.1 4.9 2.2-4 4.3-8 5-9.2 30 35 8.7
φ1200×3000 3 4.1 5.2 6.2 2.7-5 5.4-10 6.2-12 37 35 13
φ1200×4500 4.4 6.2 7.7 9.3 4-7.5 8.1-15 9.3-17 55 35 14
φ1500×3000 4.8 6.6 8.3 10 4.3-8 8.6-16 10-19 75 29 15
φ1500×4500 7.1 10 12 15 6.5-12 13-24 15-28 110 29 18
φ1500×5700 9 13 16 19 8.2-15 16-31 19-35 130 29 24
φ1830×3000 7.1 10 12 15 6.4-12 13-24 15-28 130 24.5 28
φ1830×4500 10.6 15 18 22 10-18 19-36 22-41 155 24.5 32
φ1830×6500 15.3 21 27 32 14-26 28-52 32-60 210 24 35
φ1830×7000 16.5 23 29 34 15-28 30-56 35-64 245 24 37
φ2100×3000 9.4 13 16 20 9-16 17-32 20-37 155 23.5 42
φ2100×3600 11.3 16 20 24 10-19 21-38 24-44 180 23.5 44
φ2100×4500 14.1 20 25 30 13-24 26-48 30-55 245 23.5 52
φ2100×7000 22 31 38 46 20-37 40-74 46-86 380 23.5 57
φ2200×3600 12.5 17 22 26 11-21 23-42 26-49 210 21.5 52
φ2200×4500 15.6 22 27 33 14-26 28-53 33-61 245 21.5 54
φ2200×6500 22.5 31 39 47 20-38 41-76 47-88 320 21.5 60
φ2200×7000 24.2 34 42 51 22-41 44-82 51-95 380 21.5 63
φ2200×8000 27.8 38 48 57 26-46 49-90 57-104 420 21.5 67
φ2400×3600 15 21 26 31 14-25 27-51 31-58 280 21.3 60
φ2400×4500 18.7 26 33 39 17-32 34-63 39-73 320 21.3 71
φ2400×6000 24.9 35 43 52 23-42 45-84 52-97 400 21.3 84
φ2400×7000 29.1 41 51 61 26-49 53-98 61-113 475 21.3 92
φ2700×3600 18.8 26 33 39 17-32 34-64 40-73 380 20.6 82
φ2700×4500 23.5 33 41 49 21-40 43-80 49-92 480 20.6 90
φ2700×6000 31.4 44 55 66 29-53 57-106 66-122 560 20.6 105
φ2700×7000 36.6 51 64 77 33-62 67-124 77-143 630 20.6 110
φ3200×4500 33.5 47 58 70 31-57 61-113 70-131 800 18.2 137
φ3200×6000 44.7 62 78 94 41-76 81-151 94-174 1000 18.2 160
φ3200×7000 52.2 73 91 109 47-88 95-176 110-203 1120 18.2 185
φ3600×4500 42.8 60 75 90 39-72 78-145 90-167 1120 17 200
φ3600×6000 57.1 80 100 119 52-96 104-193 120-223 1400 17 220
φ3600×7000 66.6 93 116 139 61-113 121-225 140-260 1600 17 245
φ3600×8000 76.1 106 133 159 70-129 138-257 160-297 1600 17 270
φ3600×9000 85.6 120 149 179 78-145 156-289 180-334 1800 17 285
φ3800×6500 69.1 96 121 145 63-117 126-234 145-270 1800 16.7 277
φ3800×8500 90.4 126 158 189 82-153 165-306 190-353 2250 16.7

300

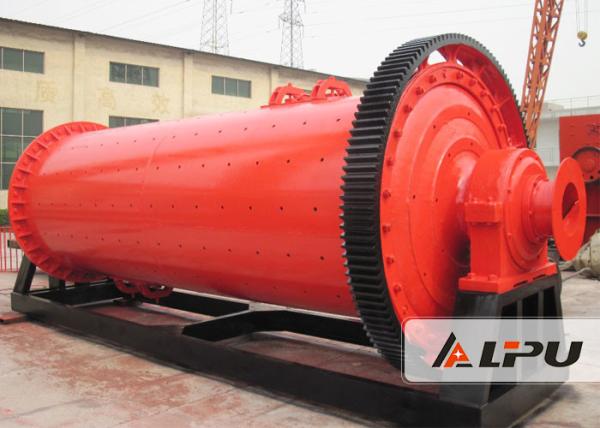

Product Picture Show:

Cement Tube Ball Mill For Drying And Grinding Coal , Capacity 61-113t/h Grinding Ball Mill
