High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw
High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw
High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw
High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw
Specifications
Brand Name :
Lipu
Model Number :
1830×3000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Mill
Model :
1830×3000
Color :
According to customer
Condition :
New
Application :
mining, building materials, chemical industry
Effective volume :
7.1m3
Capacity :
6.4-12t/h
Power :
130kw
Weight :
28t
Rotary speed :
24.5rpm
Description

High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw

Introduction of Cement Ball Mill

Cement Ball Mill is mainly used in powder making production line in industries, like mining, building materials and chemistry industries. It is the main equipment in coal powder preparation and mainly used for powder milling various hardness coals. It is also suitable for coal and ore milling system in cement, metallurgy, chemical industry and other industries.

Types of Cement Ball Mill

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. bearing mill and bushing mill

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

Working Principle of Cement Ball Mill

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ1830×3000 7.1 10 12 15 6.4-12 13-24 15-28 130 24.5 28
φ1830×4500 10.6 15 18 22 10-18 19-36 22-41 155 24.5 32
φ1830×6500 15.3 21 27 32 14-26 28-52 32-60 210 24 35
φ1830×7000 16.5 23 29 34 15-28 30-56 35-64 245 24 37

Raw Materials:

High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw

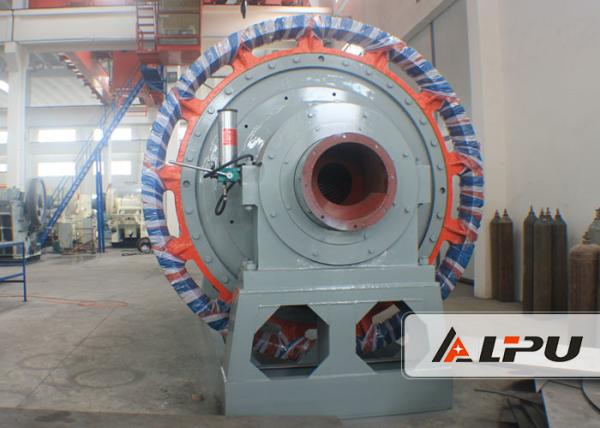

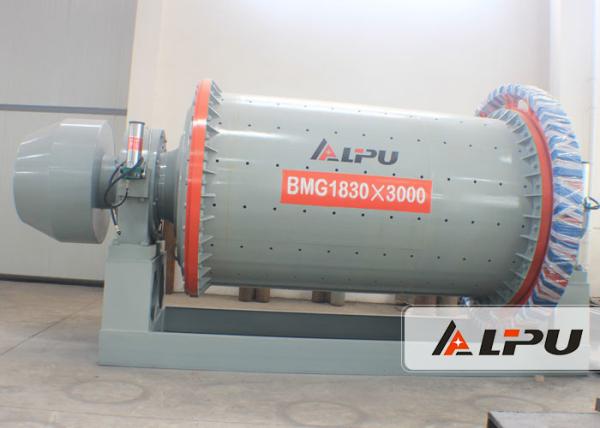

Product Picture Show:

High Output Cement Ball Mill for Milling Clinker Coal And Ores Power 130kw
