Small Scale Ceramic Ball Mill Intermittent Ball Milling Equipment for Cement Clay Coal

Introduction of Small Scale Ceramic Ball Mill

Small Scale Ceramic Ball Mill is totally enclosed intermittent grinding equipment which is capable of both dry grinding and wet grinding. The grinding feed sizes are 2-15M/M and the grinding amount for each time is 15-30kgs. It is used to grind materials in small scale industries such as building materials (especially cement and China clay industry), fireproof materials, metallurgy, coal and light chemical. Steel rods can be the grinding media to be used for rod mill.

Features of Small Scale Ceramic Ball Mill

1. Easy ore discharging, cleaning and operation.

2. Compact mechanical structure, easy fabrication and maintenance, avoiding splashing of mineral dust or slurry during ore discharging as well as dropping of steel balls everywhere.

3. Large handling capacity at one time.

4. Humanized design, reasonable as well as simple and reliable structure of transmission mechanism.

Working Principle of Small Scale Ceramic Ball Mill

Small Scale Ceramic Ball Mill is a horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging.

Structure of Small Scale Ceramic Ball Mill

The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear resistance. The machine is with stable and reliable working condition.

Technical Data:

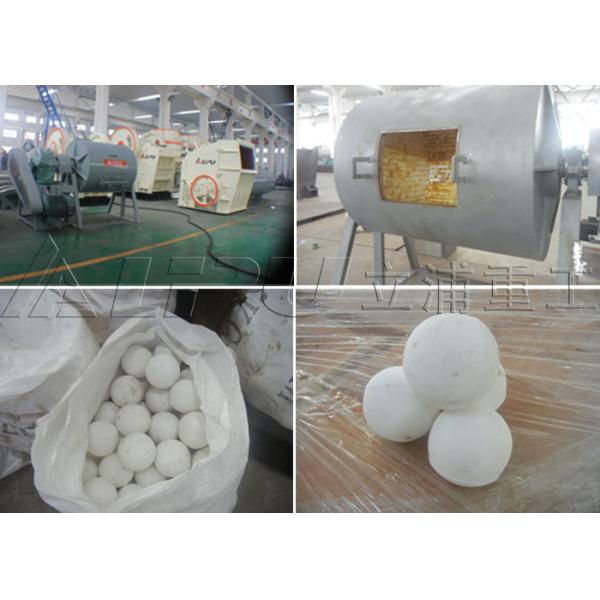

Product Pictures Show:
