Large Capacity Cement Grinding Ball Mill for Limestone Rotary Speed 23.5rpm
Large Capacity Cement Grinding Ball Mill for Limestone Rotary Speed 23.5rpm
Large Capacity Cement Grinding Ball Mill for Limestone Rotary Speed 23.5rpm
Large Capacity Cement Grinding Ball Mill for Limestone Rotary Speed 23.5rpm
Specifications
Brand Name :
Lipu
Model Number :
2100×4500
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Grinding Ball Mill
Model :
2100×4500
Color :
According to customer
Condition :
New
Application :
refractory material, fertilizer, ferrous metal, cement
Effective volume :
14.1m3
Capacity :
13-24t/h
Power :
245kw
Weight :
52t
Rotary speed :
23.5rpm
Description

Large Capacity Cement Grinding Ball Mill for Limestone Rotary Speed 23.5rpm

Cement Ball Mill Introduction:

Cement ball mill is mainly use for material mixing, grinding, size uniforming and energy saving. It is used in manufacture industries such as refractory material, fertilizer, ferrous metal, cement, silicate, new building material, nonferrous metal and glass ceramics, limestone, phosphate ore and other grindable materials of different hardness.

Cement Ball Mill Advantages:

1. Ball mill has large application range, simple structure and convenient maintenance;

2. Ball mill has large capacity and continuous operation;

3. Ball mill has barrel lining and grinding media with various abrasive materials;

4. Ball mill installation and adjustment are very convenient and easy to be operate.

Cement Ball Mill Working Principle:

When the ball mill works, motor and speed reducer transmit torque force to big and small gears of ball mill, so the barrel rotates. When the barrel rotates, Steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixing with materials impact and grind materials continuously. The grinding media and materials impact and grind each other when the ball mill rotates continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ2100×4500 14.1 20 25 30 13-24 26-48 30-55 245 23.5 52

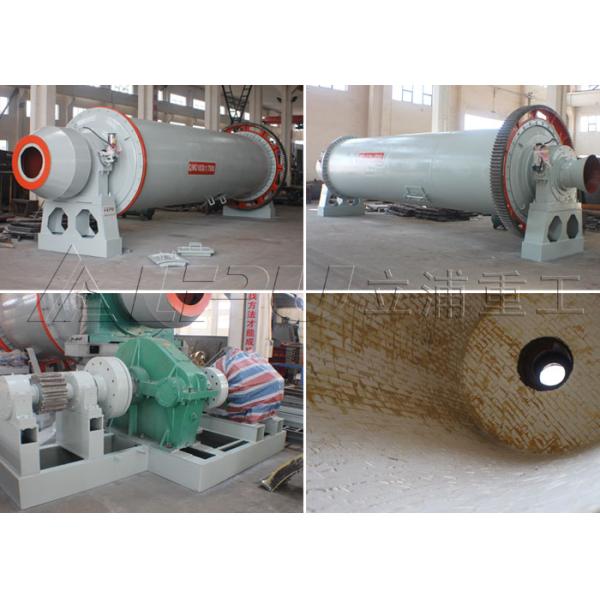

Product Picture Show:

Large Capacity Cement Grinding Ball Mill for Limestone Rotary Speed 23.5rpm
