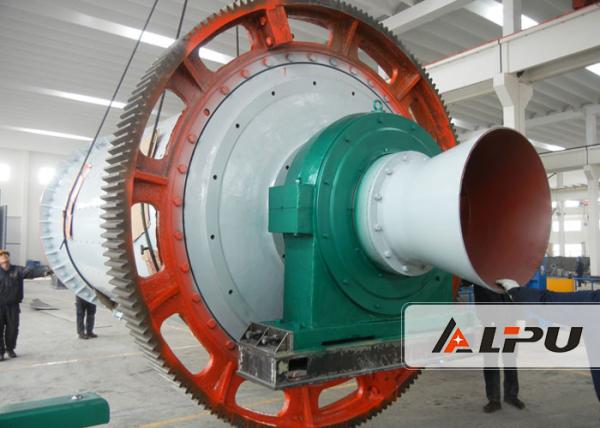

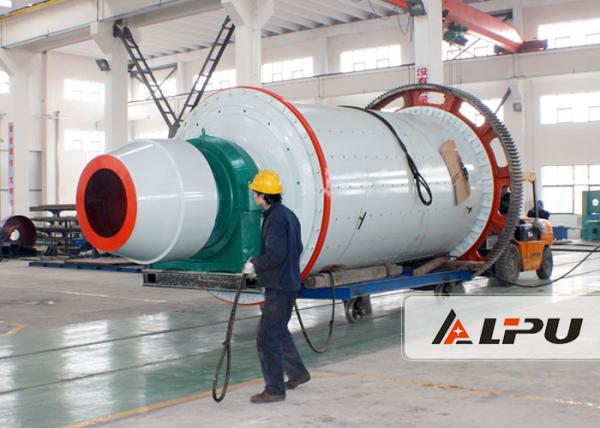

Model 2400×4500 Mining Ball Mill in Cement Plant , Mineral Ore Dressing Plant
Model 2400×4500 Mining Ball Mill in Cement Plant , Mineral Ore Dressing Plant
Model 2400×4500 Mining Ball Mill in Cement Plant , Mineral Ore Dressing Plant
Model 2400×4500 Mining Ball Mill in Cement Plant , Mineral Ore Dressing Plant
Specifications
Brand Name :
Lipu
Model Number :
2400×4500
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Ball Milling Machine
Model :
2400×4500
Color :
According to customer
Condition :
New
Application :
Mineral Ore Dressing Plant
Effective volume :
18.7m3
Capacity :
17-32t/h
Power :
320kw
Weight :
71t
Rotary speed :
21.3rpm
Description

Model 2400×4500 Cement Ball Milling Machine in Mineral Ore Dressing Plant

Brief Introduction of Cement Ball Mill

Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. It is key equipment in grinding industry, especially in mineral ore dressing plants. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074mm and 0.4mm in diameter.

Advantages of Cement Ball Mill

1. Suitable for grinding material with high hardness.

2. The shape of the final products is circular.

3. No pollution for the powder with ceramic ball.

4. Stable performance and easy installation.

5. The capacity and fineness can be adjusted by adjusting the diameter of the ball.

Working Principle of Cement Ball Mill

The ball mill is a grid shaped one made up of a horizontal type cylinder rotating device, gear drive and two cabins. The discharging ways can be divided into grid type and over flow type. Ball mills are in many shapes: short drum one, long drum one, pipe one and cone shaped one.

Materials enter the first cabin of ball mills via the feeding device across the hollow shaft uniformly. In the first cabin, there is a ladder scale board or a ripple scale board with different steel balls which will be lifted to certain height in the effect of centrifugal force produced by the rotating cylinder. Then the balls fall to impact and grind the materials. After the rough grinding process, materials enter the second cabin through the single layer cabin separating board. There is a scale board with steel balls in the second cabin which will grind materials. The finished powder materials are discharged from the unloading plate, thus finishing the grinding process.

Technical Data of Cement Ball Mill:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kw)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ900×1800 1 1.3 1.7 2 0.9-1.6 1.7-3.2 2-3.7 15 37 4.2
φ900×2100 1.1 1.5 1.9 2.3 1-1.9 2-3.7 2.3-4.3 18.5 37 4.9
φ900×3000 1.6 2.2 2.8 3.3 1.4-2.7 2.9-5.4 3.3-6.2 30 37 7.6
φ1200×2400 2.4 3.3 4.1 4.9 2.2-4 4.3-8 5-9.2 30 35 8.7
φ1200×3000 3 4.1 5.2 6.2 2.7-5 5.4-10 6.2-12 37 35 13
φ1200×4500 4.4 6.2 7.7 9.3 4-7.5 8.1-15 9.3-17 55 35 14
φ1500×3000 4.8 6.6 8.3 10 4.3-8 8.6-16 10-19 75 29 15
φ1500×4500 7.1 10 12 15 6.5-12 13-24 15-28 110 29 18
φ1500×5700 9 13 16 19 8.2-15 16-31 19-35 130 29 24
φ1830×3000 7.1 10 12 15 6.4-12 13-24 15-28 130 24.5 28
φ1830×4500 10.6 15 18 22 10-18 19-36 22-41 155 24.5 32
φ1830×6500 15.3 21 27 32 14-26 28-52 32-60 210 24 35
φ1830×7000 16.5 23 29 34 15-28 30-56 35-64 245 24 37
φ2100×3000 9.4 13 16 20 9-16 17-32 20-37 155 23.5 42
φ2100×3600 11.3 16 20 24 10-19 21-38 24-44 180 23.5 44
φ2100×4500 14.1 20 25 30 13-24 26-48 30-55 245 23.5 52
φ2100×7000 22 31 38 46 20-37 40-74 46-86 380 23.5 57
φ2200×3600 12.5 17 22 26 11-21 23-42 26-49 210 21.5 52
φ2200×4500 15.6 22 27 33 14-26 28-53 33-61 245 21.5 54
φ2200×6500 22.5 31 39 47 20-38 41-76 47-88 320 21.5 60
φ2200×7000 24.2 34 42 51 22-41 44-82 51-95 380 21.5 63
φ2200×8000 27.8 38 48 57 26-46 49-90 57-104 420 21.5 67
φ2400×3600 15 21 26 31 14-25 27-51 31-58 280 21.3 60
φ2400×4500 18.7 26 33 39 17-32 34-63 39-73 320 21.3 71
φ2400×6000 24.9 35 43 52 23-42 45-84 52-97 400 21.3 84
φ2400×7000 29.1 41 51 61 26-49 53-98 61-113 475 21.3 92
φ2700×3600 18.8 26 33 39 17-32 34-64 40-73 380 20.6 82
φ2700×4500 23.5 33 41 49 21-40 43-80 49-92 480 20.6 90
φ2700×6000 31.4 44 55 66 29-53 57-106 66-122 560 20.6 105
φ2700×7000 36.6 51 64 77 33-62 67-124 77-143 630 20.6 110
φ3200×4500 33.5 47 58 70 31-57 61-113 70-131 800 18.2 137
φ3200×6000 44.7 62 78 94 41-76 81-151 94-174 1000 18.2 160
φ3200×7000 52.2 73 91 109 47-88 95-176 110-203 1120 18.2 185
φ3600×4500 42.8 60 75 90 39-72 78-145 90-167 1120 17 200
φ3600×6000 57.1 80 100 119 52-96 104-193 120-223 1400 17 220
φ3600×7000 66.6 93 116 139 61-113 121-225 140-260 1600 17 245
φ3600×8000 76.1 106 133 159 70-129 138-257 160-297 1600 17 270
φ3600×9000 85.6 120 149 179 78-145 156-289 180-334 1800 17 285
φ3800×6500 69.1 96 121 145 63-117 126-234 145-270 1800 16.7 277
φ3800×8500 90.4 126 158 189 82-153 165-306 190-353 2250 16.7

300

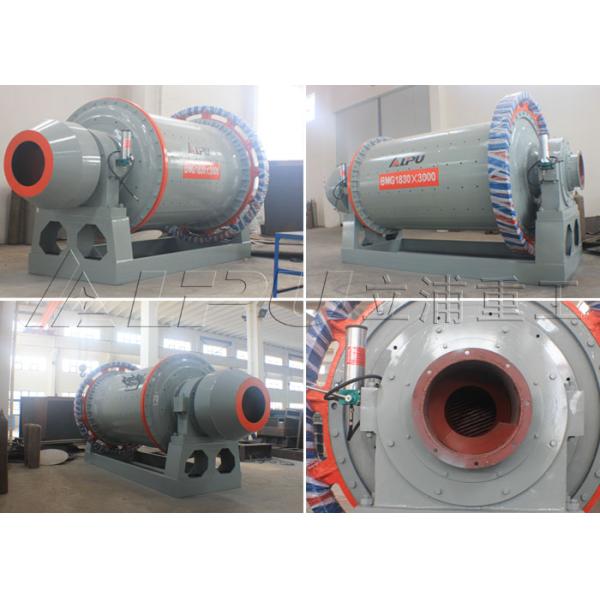

Product Picture Show:

Model 2400×4500 Mining Ball Mill in Cement Plant , Mineral Ore Dressing Plant
