Feeding Size 25mm Ceramic Ball Mill / Super Fine Grinding Mill for Feldspar
Feeding Size 25mm Ceramic Ball Mill / Super Fine Grinding Mill for Feldspar
Feeding Size 25mm Ceramic Ball Mill / Super Fine Grinding Mill for Feldspar
Feeding Size 25mm Ceramic Ball Mill / Super Fine Grinding Mill for Feldspar
Specifications
Brand Name :
Lipu
Model Number :
1830×3000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Ceramic Liner Ball Mill
Model :
1830×3000
Color :
According to customer
Condition :
New
Application :
Feldspar, Quartz, Clay
Shell rotation speed :
25.4rpm
Feeding size :
≤25mm
Discharging size :
0.074-0.4mm
Capacity :
4-10t/h
Motor power :
130kw
Description

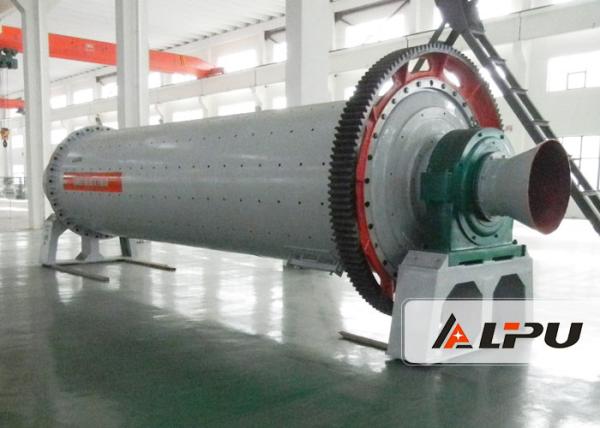

Ceramic Liner Ball Mill / Super Fine Grinding Mill for Feldspar Feeding Size 25mm
Introduction of Ceramic Ball Mill:
Ceramic Ball Mill works in both dry and wet methods intermittently to mill, mix and discharge materials such as feldspar, quartz and clay. The slurry can pass through 1000 sieve pore. It's a kind of super fine grinding mill, so the feed material should be in medium size to get best grinding efficiency and economic profit.
Advantages of Ceramic Ball Mill
This ceramic ball mill changes the intrinsic grinding mill structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt.
Technical Data:

ModelShell rotation speed(r/min)Ball load(t)Feeding size(mm)Discharging size(mm)CapacityMotor power(kw)Weight(t)
(t/h)
900×180036~381.5≤200.075-0.890.65-218.55.5
900×3000362.7≤200.075-0.891.1-3.5226.7
1200×2400363≤250.075-0.61.5-4.83012
1200×3000363.5≤250.074-0.41.6-53712.8
1200×450032.45≤250.074-0.41.6-5.85513.8
1500×300029.77.5≤250.074-0.42-57516.8
1500×45002711≤250.074-0.43-611021
1500×57002812≤250.074-0.43.5-613025.8
1830×300025.411≤250.074-0.44-1013029
1830×450025.415≤250.074-0.44.5-1215535.5
1830×640024.121≤250.074-0.46.5-1521043
1830×700024.123≤250.074-0.47.5-1724543.8
2100×300023.715≤250.074-0.46.5-3615534.8
2100×450023.724≤250.074-0.48-4324538
2100×700023.726≤250.074-0.48-4828056.6
2200×450021.527≤250.074-0.49-4528051.8
2200×650021.735≤250.074-0.414-2638060
2200×700021.735≤250.074-0.415-2838062
2200×750021.735≤250.074-0.415-3038064.8
2400×30002123≤250.074-0.47-5024554
2400×45002130≤250.074-0.48.5-6032065
2700×400020.740≤250.074-0.412-8038094
2700×450020.748≤250.074-0.412-90480102
3200×45001865≤250.074-0.4Determined by process conditions800137
3600×45001790≤250.074-0.4,Determined by process conditions850158
3600×600017110≤250.074-0.4Determined by process conditions1250175

Case:
Turkey Customer Visited for Ball Mill
Feeding Size 25mm Ceramic Ball Mill / Super Fine Grinding Mill for Feldspar
