High Efficiency Grizzly Vibrating Feeder In Gravel Production Line
High Efficiency Grizzly Vibrating Feeder In Gravel Production Line
Specifications
Brand Name :
LIPU
Model Number :
GZD9538
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
High Efficiency Grizzly Feeder
Model :
GZD9538
Vibration frequency :
970r/min
Double-amplitude :
4-6mm
Capacity :
120-210t/h
Power :
2×3kw
Overall Dimension :
3910×1520×1460mm
Weight :
3t
Application :
Gravel Production Line
Color :
As customer's requirement
Quality :
High reputation
Description

High Efficiency Grizzly Vibrating Feeder In Gravel Production Line

Brief Introduction:

Grizzly Feeder is widely used in the industries of metallurgy, coal, chemicals, building materials, light industry, glass, food for dosing, batching and packaging. The vibrating feeder with the closed structure can prevent dust pollution.

Performance Features:

1. simple structure and reliable operation.

2. Convenient adjustment and installation.

3. Light weight and small size.

4. Convenient maintenance and repair.

Working Principle:

Grizzly Feeder mainly consists of vibrating frame, spring, vibrator and motor. The vibrator is made up of two eccentric shafts which are located in special place by two gears. When assembling, the two gears must be matched according to marks. The motor makes two eccentric shafts rotate, which produces great vibration force. Under this impetus, the materials shall slide and be thrown forward, therefore, the machine acts as a feeder. When the material goes through grid bar above the groove, small material will drop through space between grid bars, so the machine also plays a screening effect.

Technical Parameters:

Model

Vibration frequency(r/min)

Double-amplitude(mm)

Capacity (t/h)

Power

(kW)

Overall dimension

(mm)

Weight (t)

GZD9538

970

4-6

120-210

2×3

3910×1520×1460

3

GZD1149

970

4-6

160-320

2×5.5

5010×1670×1710

4.3

GZD1249

970

4-6

180-380

2×5.5

5010×1770×1710

4

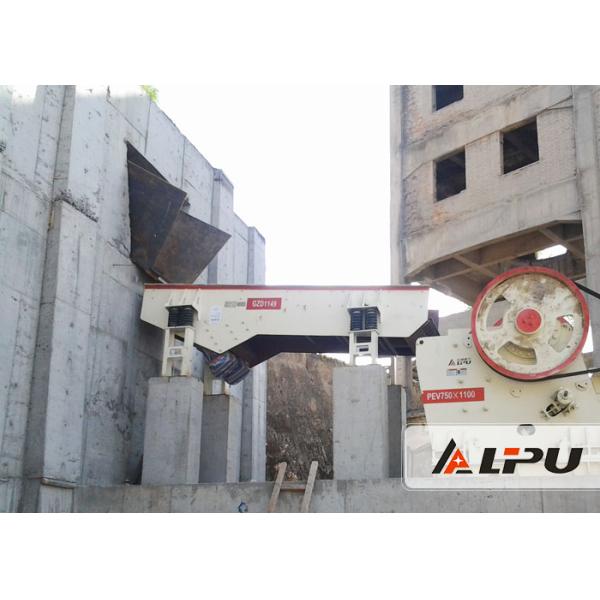

Working Site of High Efficiency Grizzly Feeder:

High Efficiency Grizzly Vibrating Feeder In Gravel Production Line

High Efficiency Grizzly Vibrating Feeder In Gravel Production Line
