Long Distance Mining Conveyor Belt Systems In Coal Mining Width 800 Mm
Long Distance Mining Conveyor Belt Systems In Coal Mining Width 800 Mm
Long Distance Mining Conveyor Belt Systems In Coal Mining Width 800 Mm
Long Distance Mining Conveyor Belt Systems In Coal Mining Width 800 Mm
Specifications
Brand Name :
LIPU
Model Number :
800
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-25 days after receiving advanced payment.
Packaging Details :
Export standard container or as customers' requirements.
Product Name :
Mining Conveyor Belt Systems
Model :
800
Capacity :
120-200 t/h
Application :
Coal Mining
Color :
As Customer's Requirments
Description

Long Distance Rubber Belt Conveyor Systems in Coal Mining Width 800 mm

Brief Introduction:

Long Distance Rubber Belt Conveyor System is widely used to transfer sandy or lump material, or packaged material in coal mining. The belt conveyor can be installed horizontally or a slope to meet the needs of different transfer lines. It is adaptable for stationary and mobile crushing plant.

Performance Features:

1. Increase the transmission angle (30 to 90 degrees).
2. Small footprint and low investment.
3. a high degree of upgrading.
4. To tilt from horizontal (or vertical) to a smooth transition.
5. Easy transportation of powdery, granular, small block, paste and liquid-like materials.
6. Low consumption, simple structure and long service life.

Technical Parameters:

Belt width (mm)

Length (m) / Power (kW)

Capacity (t/h)

500

≤12/3

12-20/3-5.5

20-30/5.5-7.5

40-80

650

≤12/4

12-20/4-5.5

20-30/5.5-11

80-120

800

≤10/4

10-15/4-5.5

15-30/5.5-15

120-200

1000

≤10/5.5

10-20/5.5-11

20-40/11-22

200-320

1200

≤10/7.5

10-20/7.5-15

20-40/15-30

290-480

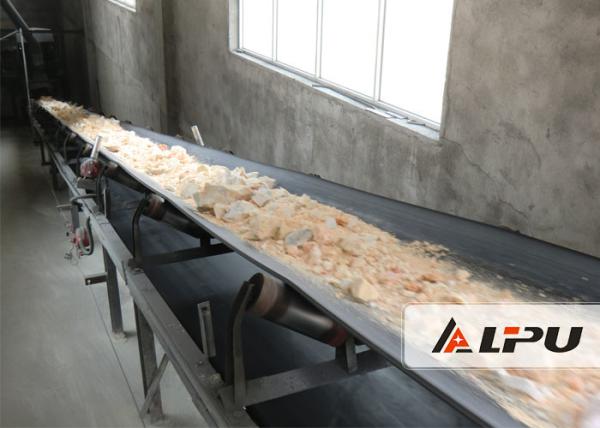

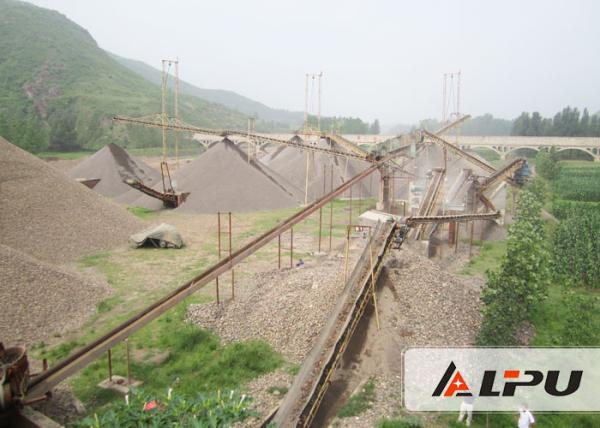

Working Site of Long Distance Rubber Belt Conveyor System:

Long Distance Mining Conveyor Belt Systems In Coal Mining Width 800 Mm
