Stainless Steel Cement Clinker Grinding Ball Mill Plant 18.5kw
Stainless Steel Cement Clinker Grinding Ball Mill Plant 18.5kw
Specifications
Brand Name :
Lipu
Model Number :
900×1800
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Cement Clinker Ball Mill
Model :
900×1800
Capacity :
0.65-2t/h
Weight :
5.5t
Power :
18.5kw
Application :
metallurgy, construction materials, chemical, and mining, etc.
Description

Stainless Steel Cement Clinker Grinding Ball Mill Plant With Power 18.5kw

Introduction:

Cement Ball Mill is mainly applied to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical, and mining, etc. It has features of energy saving and easy operation.

Working Principle:

Cement Ball mill consists of horizontal tube rotating device, outer edge of the gear drive, two cambers, and lattice type. By feeding device the materials are evenly fed into the first milling chamber through the hollow shaft. There are ladder lining plate or corrugated lining plate in the chamber. The mill contains steel balls of different specifications, and the rotating of cylinder can make centrifugal force to the balls so that they have a severe impact and abrasive effect on the materials. After coarse grinding in the first chamber, they will enter into the second chamber through single layer partition plate. The inner chamber is lined with plane liner which has steel balls for further grinding. Finally powder is discharged from discharging opening.

Technical Data:

Type Speed of cylinder
(r/min)		 Weight of balls
(t)		 Feed size
(mm)		 Expected size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
Φ900×1800 36 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 5.5
Φ900×3000 38 2.7 ≤ 20 0.075-0.89 1.1-3.5 22 6.7
Φ1200×2400 36 3 ≤ 25 0.075-0.6 1.5-4.8 30 12
Φ900×3000 36 3.5 ≤ 25 0.074-0.4 1.6-5 37 12.8
Φ1200×4500 36 5 ≤ 25 0.074-0.4 1.6-5.8 55 13.8
Φ1500×3000 32.4 7.5 ≤ 25 0.074-0.4 2-5 75 16.8
Φ1500×4500 29.7 11 ≤ 25 0.074-0.4 3-6 110 21
Φ1500×5700 27 12 ≤ 25 0.074-0.4 3.5-6 130 25.8
Φ1830×3000 25.4 11 ≤ 25 0.074-0.4 4-10 130 29
Φ1830×4500 25.4 15 ≤ 25 0.074-0.4 4.5-12 155 35.5
Φ1830×6400 24.1 21 ≤ 25 0.074-0.4 6.5-15 210 43
Φ1830×7000 24.1 23 ≤ 25 0.074-0.4 7.5-17 245 43.8
Φ2100×3000 23.7 15 ≤ 25 0.074-0.4 6.5-36 155 34.8
Φ2100×4500 23.7 24 ≤ 25 0.074-0.4 8-43 245 42
Φ2100×7000 23.7 26 ≤ 25 0.074-0.4 8-48 280 56.6
Φ2200×4500 21.5 27 ≤ 25 0.074-0.4 9-45 280 51.8
Φ2200×6500 21.7 35 ≤ 25 0.074-0.4 14-26 380 60
Φ2200×7000 21.7 35 ≤ 25 0.074-0.4 15-28 380 62
Φ2200×7500 21.7 35 ≤ 25 0.074-0.4 15-30 380 64.8
Φ2400×3000 21 23 ≤ 25 0.074-0.4 7-50 245 58
Φ2400×4500 21 30 ≤ 25 0.074-0.4 8.5-60 320 69
Φ2700×4000 20.7 40 ≤ 25 0.074-0.4 12-80 380 94
Φ2700×4500 20.7 48 ≤ 25 0.074-0.4 12-90 480 102
Φ3200×4500 18 65 ≤ 25 0.074-0.4 According to process conditions 630 137

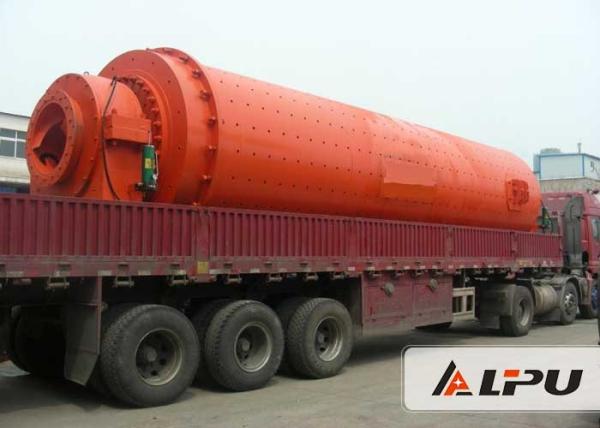

Product Pictures Show:

Stainless Steel Cement Clinker Grinding Ball Mill Plant 18.5kw
