Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
Specifications
Brand Name :
Lipu
Model Number :
900x1800
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Ball Mill
Model :
900x1800
Maximum Ball  Volume :
1.92t
Capacity :
0.33~1.6t/h
Weight :
5340kg
Power :
22kw
Condition :
New
Application :
Cement, silicate, new building material, refractory material, fertilizer, etc.
Description

CE / ISO Certificated Mine Ball Mill for Mineral Ores , Capacity 0.16- 100t/h

Introduction:

Mining Ball Mill is used to grind many kinds of mineral ores and other materials, or to select mine. It is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Our ball mill can be applied in different industries, such as ore dressing production line (overflow mill, grate mill), cement factory (super fine dry milling ball mill, damp mill, air swept ball mill), chemical industry. We also have ball mill for ceramic.

Advantages:

1. High production capacity.

2. Wind-force discharge is available.

3. High efficient and energy saving.

4. High efficiency of ore grinding and high ore particle fineness.

Technical Data :

model

Cylinder

diameter
(mm)

Cylinder

length
(mm)

Motor

Model

Motor

power
(kw)

Motor

RPM
(r.p.m)

 length
(mm)		 Width
(mm)

Height

(mm)

Processing

Capacity

(t/h)

Maximum

Ball

Volume

(t)

 weight
(kg)
MQG0909 900 900 Y225S-8 17 730 3120 2210 2020 0.16~0.8 0.96 4620
MQG0918 900 1800 Y225M-8 22 730 3620 2230 2020 0.33~1.6 1.92 5340
MQG1212 1200 1200 Y250M-8 30 730 5100 2800 2500 0.16~2.6 2.4 11438
MQG1224 1200 2400 Y315S-8 55 730 6500 2800 2500 0.26~6.15 4.8 13200
MQG1515 1500 1500 JR115-8 60 725 5650 3260 2700 1~3.6 4 13700
MQG1530 1500 3000 JR125-8 95 725 7480 3300 2700 2~6.8 8 18690
MGG2122 2100 2200 JR128-8 155 730 8070 4839 3794 5~29 16 47400
MQG2136 2100 3000 JR148-8 240 735 8640 4839 3794 8~40 21 50600
MQG3045 3000 4500 TDMK630-36 630 167 _ _ _ 20~45 55 135000
MQG3245 3200 4500 TDMK800-36 800 167 _ _ _ 75~100 68 155000
MQG3655 3600 5500 TDMK1250-40 1250 150 _ _ _ 120~190 97 205000

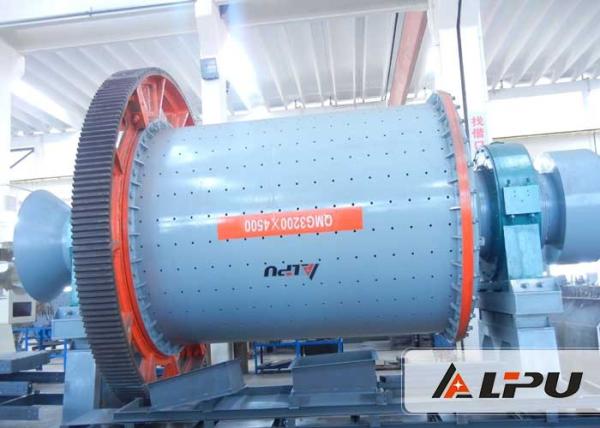

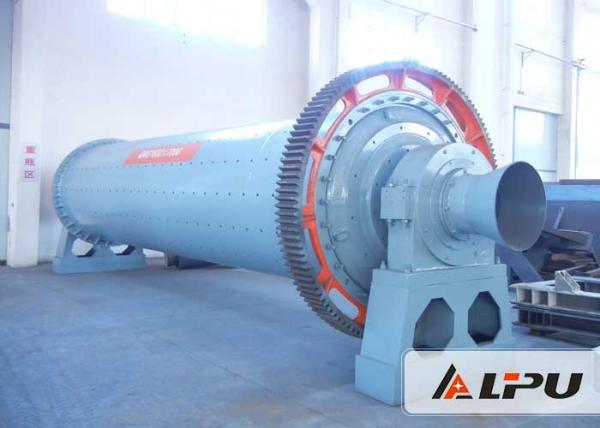

Product Pictures Show:
Mineral Ores Mine Ball Mill Capacity 0.16- 100t/h CE / ISO Certificated
