Hot Air Flow Rotary Drum Industrial Dryer Machine Clay Slag Coal Powder Sawdust Dryer
Hot Air Flow Rotary Drum Industrial Dryer Machine Clay Slag Coal Powder Sawdust Dryer
Specifications
Brand Name :
Lipu
Model Number :
600x6000
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Hot Air Flow Rotary Drum Industrial Dryer Machine
Model :
600x6000
Capacity :
0.5-1.5t/h
Power :
3kw
Weight :
2.9kg
Application :
building materials, metallurgy, chemical industry, cement industry, etc.
Condition :
New
Color :
According to customer
Description

Hot Air Flow Rotary Drum Industrial Dryer Machine Clay Slag Coal Powder Sawdust Dryer

Introduction:

Rotary drum dryer is a specialized drying equipment for drying materials with humidity, such as slag, coal powder, clay and sawdust, widely used in building materials, metallurgy, chemical industry, cement industry, etc. It can reduce the moisture from 60% to 10%.

Features:

1. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.

2. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients.

3. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.

Technical Data:

Specifications(mm) Tilt(%) Rotate speed(r/min) The max. intake air temperature(°C) Power(kw) Capacity(t/h) Weight(kg)
600x6000 3-5 3-8 ≤700 3 0.5-1.5 2.9
800x8000 3-5 3-8 ≤700 4 0.8-2.0 3.5
800x10000 3-5 3-8 ≤700 4 0.8-2.5 4.5
1000x10000 3-5 3-8 ≤700 5.5 1.0-3.5 5.6
1200x10000 3-5 3-8 ≤700 7.5 1.8-5 14.5
1200x12000 3-5 3-8 ≤700 11 2-6 14.8
1500x12000 3-5 2-6 ≤800 15 3.5-9 17.8
1800x12000 3-5 2-6 ≤800 18 5-12 25
2200x12000 3-5 1.5-6 ≤800 18.5 6-15 33
2200x18000 3-5 1.5-6 ≤800 22 10-18 53.8
2200x20000 3-5 1.5-6 ≤800 30 12-20 56
2400x20000 3-5 1.5-5 ≤800 37 18-30 60
3000x20000 3-5 1.5-5 ≤800 55 25-35 78
3000x25000 3-5 1.5-5 ≤800 75 32-40 104.9

Work Flow Chart

Hot Air Flow Rotary Drum Industrial Dryer Machine Clay Slag Coal Powder Sawdust Dryer

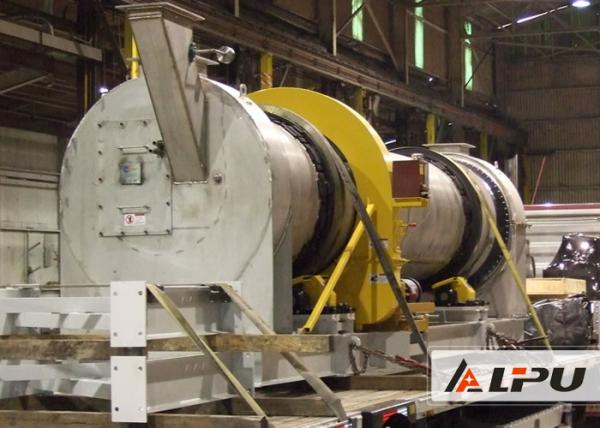

Product Pictures Show:

Hot Air Flow Rotary Drum Industrial Dryer Machine Clay Slag Coal Powder Sawdust Dryer
