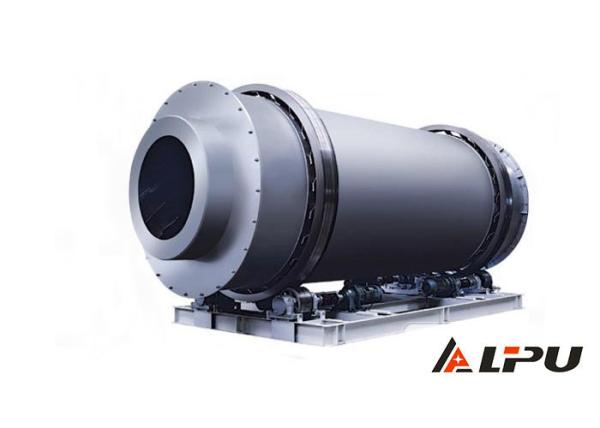

Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
Specifications
Brand Name :
Lipu
Model Number :
2.5×7
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Sand Drying Equipment
Model :
2.5×7
Shell Volume :
16.63m³
Rotate speed :
4-10r/min
Motor Power :
7.5×2kw
Application :
fly ash, sand, mineral slag.
Description

Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag

Introduction:
Three drum dryer is composed of three concentric cylinders of different diameters in accordance with mathematical relationship and structure form, embedded in each phase. It is widely used for drying the fly ash, sand, mineral slag.
Features

1. Three drum dryer for drying sand with telescope-feed structure can dry the material quickly.

2. Simple design and self-insulation can improve the heat efficiency to exceed 80%.
3. Delicate structure and reliable operation.
4. Good drying performance decreases coal consumption.
5. Reduce land area for 50% compared to single drum rotary dryer, so construction investment is saved 50%, power and consumption saved 60%

Technical Data:

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25		 Yellow sand30-35
Slag25-30		 Yellow sand35-40
Slag30-35		 Yellow sand45-50
Slag35-40		 Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29

Case:
The Delivery Site of Rotary Dryer

Date: 2012.10.04

Model: 1.5×15Three Drum Dryer Sand Drying Equipment in Fly Ash Mineral Slag
