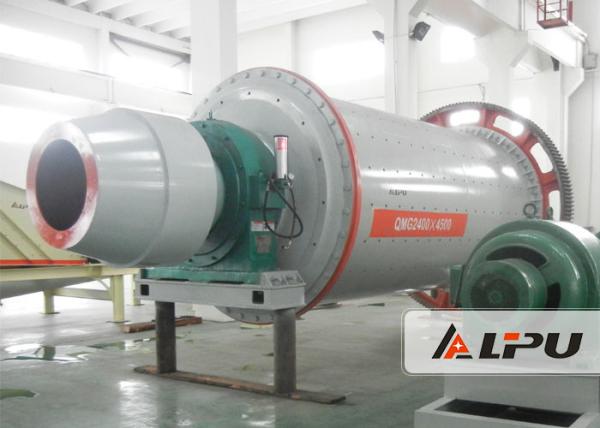

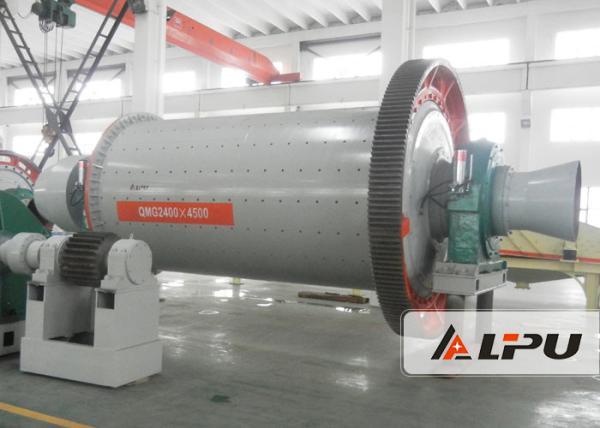

High Output Continuous Mining Ball Mill Grinder , efficiency ball mill machine
High Output Continuous Mining Ball Mill Grinder , efficiency ball mill machine
High Output Continuous Mining Ball Mill Grinder , efficiency ball mill machine
High Output Continuous Mining Ball Mill Grinder , efficiency ball mill machine
Specifications
Brand Name :
Lipu
Model Number :
2400x4500
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Ball Mill
Model :
2400x4500
Effective Volume :
18.7m³
Capacity :
17-32t/h
Weight :
71t
Power :
320KW
Condition :
New
Application :
building materials, mining, chemical industry
Description

High Output Continuous Mining Ball Mill Grinder , efficiency ball mill machine

Introduction:

For ball mill, there are two ways of grinding: the dry way and the wet way, so it can be called wet ball mill or dry ball mill. Ball mill grinds materials by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the materials to be ground. The rotating speed is usually between 4 to 30 r/min, depending upon the diameter of the mill. The larger the diameter, the slower the rotating speed. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the “Critical Speed”, and ball mill usually operates at 65% to 75% of the critical speed.

Application:

Ball mill is widely used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building materials, mining, chemical industry, etc. It can be divided into tabular type and flowing type according to different forms of discharging materials.

Technical Data:

Model

Effective volume

(m3)

Max. steel ball load (t)

Capacity (t/h)

Power

(kW)

Rotary speed(rpm)

Weight

(t)

MQG

MQY

MQS

MQG

MQY

MQS

φ900×1800

1

1.3

1.7

2

0.9-1.6

1.7-3.2

2-3.7

15

37

4.2

φ900×2100

1.1

1.5

1.9

2.3

1-1.9

2-3.7

2.3-4.3

18.5

37

4.9

φ900×3000

1.6

2.2

2.8

3.3

1.4-2.7

2.9-5.4

3.3-6.2

30

37

7.6

φ1200×2400

2.4

3.3

4.1

4.9

2.2-4

4.3-8

5-9.2

30

35

8.7

φ1200×3000

3

4.1

5.2

6.2

2.7-5

5.4-10

6.2-12

37

35

13

φ1200×4500

4.4

6.2

7.7

9.3

4-7.5

8.1-15

9.3-17

55

35

14

φ1500×3000

4.8

6.6

8.3

10

4.3-8

8.6-16

10-19

75

29

15

φ1500×4500

7.1

10

12

15

6.5-12

13-24

15-28

110

29

18

φ1500×5700

9

13

16

19

8.2-15

16-31

19-35

130

29

24

φ1830×3000

7.1

10

12

15

6.4-12

13-24

15-28

130

24.5

28

φ1830×4500

10.6

15

18

22

10-18

19-36

22-41

155

24.5

32

φ1830×6500

15.3

21

27

32

14-26

28-52

32-60

210

24

35

φ1830×7000

16.5

23

29

34

15-28

30-56

35-64

245

24

37

φ2100×3000

9.4

13

16

20

9-16

17-32

20-37

155

23.5

42

φ2100×3600

11.3

16

20

24

10-19

21-38

24-44

180

23.5

44

φ2100×4500

14.1

20

25

30

13-24

26-48

30-55

245

23.5

52

φ2100×7000

22

31

38

46

20-37

40-74

46-86

380

23.5

57

φ2200×3600

12.5

17

22

26

11-21

23-42

26-49

210

21.5

52

φ2200×4500

15.6

22

27

33

14-26

28-53

33-61

245

21.5

54

φ2200×6500

22.5

31

39

47

20-38

41-76

47-88

320

21.5

60

φ2200×7000

24.2

34

42

51

22-41

44-82

51-95

380

21.5

63

φ2200×8000

27.8

38

48

57

26-46

49-90

57-104

420

21.5

67

φ2400×3600

15

21

26

31

14-25

27-51

31-58

280

21.3

60

φ2400×4500

18.7

26

33

39

17-32

34-63

39-73

320

21.3

71

φ2400×6000

24.9

35

43

52

23-42

45-84

52-97

400

21.3

84

φ2400×7000

29.1

41

51

61

26-49

53-98

61-113

475

21.3

92

φ2700×3600

18.8

26

33

39

17-32

34-64

40-73

380

20.6

82

φ2700×4500

23.5

33

41

49

21-40

43-80

49-92

480

20.6

90

φ2700×6000

31.4

44

55

66

29-53

57-106

66-122

560

20.6

105

φ2700×7000

36.6

51

64

77

33-62

67-124

77-143

630

20.6

110

φ3200×4500

33.5

47

58

70

31-57

61-113

70-131

800

18.2

137

φ3200×6000

44.7

62

78

94

41-76

81-151

94-174

1000

18.2

160

φ3200×7000

52.2

73

91

109

47-88

95-176

110-203

1120

18.2

185

φ3600×4500

42.8

60

75

90

39-72

78-145

90-167

1120

17

200

φ3600×6000

57.1

80

100

119

52-96

104-193

120-223

1400

17

220

φ3600×7000

66.6

93

116

139

61-113

121-225

140-260

1600

17

245

φ3600×8000

76.1

106

133

159

70-129

138-257

160-297

1600

17

270

φ3600×9000

85.6

120

149

179

78-145

156-289

180-334

1800

17

285

φ3800×6500

69.1

96

121

145

63-117

126-234

145-270

1800

16.7

277

φ3800×8500

90.4

126

158

189

82-153

165-306

190-353

2250

16.7

300

Case:

The Delivery Site of Ball Mill to Zhejiang Province, China
