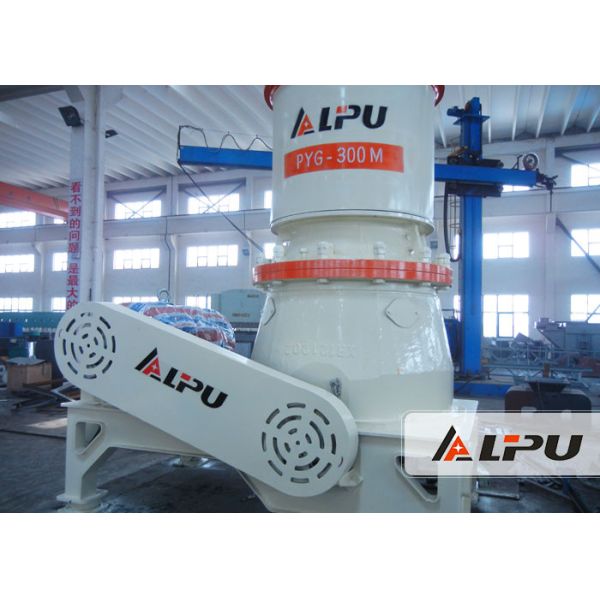

Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Specifications
Brand Name :
Lipu
Model Number :
PYG100
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Hydraulic Cone Crusher
Model :
PYG100
Stroke :
21mm
Cavity shape :
C
Power :
75kw
Overall dimension :
2970×1940×3280mm
Weight :
10.8t
Application :
mining, metallurgical industry, construction
Description

Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
Brief Introduction:
Hydraulic Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry. It can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstone, etc.
Features:
Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The crushed materials are of equal size, thus reducing circulating load.
3. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, so as to meet our customers' requirements.
5. Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
Technical Data:

Model

Power
(kW)

Stroke
(mm)


Cavity shape

Inlet size
(mm)

Capacity (t/h) with different discharging outlet size (mm)

Overall dimension
L×W×H
(mm)

Weight
(t)

8

10

15

20

25

30

35

40

45

PYG100

75

21

C

140

45-65

55-75

65-85

85-105

2970×
1940×3280

10.8

M

120

30-50

40-60

50-70

60-80

F

100

20-40

30-50

40-60

50-70

90

27

C

130

70-90

80-100

90-110

100-120

M

120

50-70

60-80

70-90

80-100

F

100

35-55

45-65

55-75

65-85

PYG200

132

26

C

190

110-130

130-150

170-190

190-210

3340×
2200×3630

19.5

M

170

75-95

90-110

110-130

150-170

F

130

50-70

60-80

70-90

90-110

125-145

160

34

C

190

130-150

150-170

190-210

210-230

M

170

90-110

110-130

130-150

170-190

F

130

60-80

75-95

90-110

110-130

150-170

PYG300

200

31

C

200

185-205

225-245

255-275

280-300

290-310

3950×
2480×3820

37.6

M

190

120-140

155-175

185-205

215-235

240-260

250-270

F

170

90-110

100-120

125-145

150-170

180-200

200-220

250

38

C

200

225-245

265-285

290-310

310-340

330-350

M

190

150-170

185-205

225-245

255-275

280-300

290-310

F

170

110-130

130-150

155-175

185-205

215-235

240-260

Working Site of Single Cylinder Hydraulic Cone Crusher:

Mining Crushing Equipment Hydraulic Cone Crusher for Medium and Hard Rocks
