Specifications
Brand Name :
Lipu
Model Number :
CTB612
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Magnetic Separator
Model :
CTB612
Shell diameter :
600mm
Shell length :
1200mm
Capacity :
10-20t/h
Power :
1.1kw
Overall dimension :
2030×1200×1140mm
Condition :
New
Application :
Ore dressing plant
Description

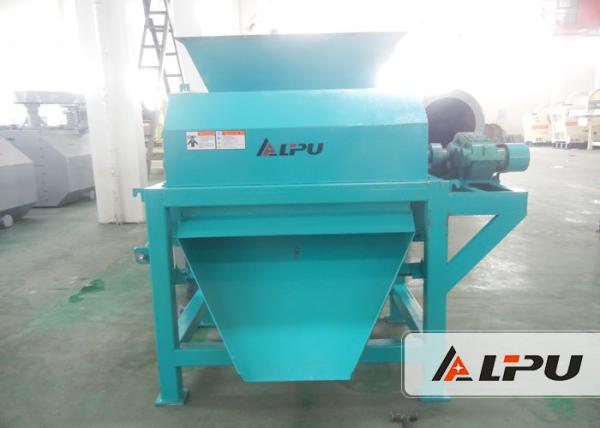

Mining Wet Magnetic Separator for Ore Dressing Plant , Granularity Below 3mm

Brief Introduction:

Wet Magnetic Separator is used to separate materials with granularity below 3mm, such as magnetite, magnetic pyrite, roasted ore and ilmenite. It can also be used to remove iron from coal, nonmetal materials, building materials, etc. Our Magnetic Separator is designed to recover ferromagnetic materials.

Performance Features:

1. Remove impurities and improve the quality.
2. Simple structure and easy to maintain.
3. Short magnetic circuit.
4. Little magnetic flux leakage.
5. High magnetic intensity, low energy consumption.

Working Principle:

The working principle of magnetic separator is as the following: When the ore pulp flow into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum. The weak magnetic and non-magnetic minerals are cast off and discharged, while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of magnetic field so as to complete the sorting operation.

Technical Parameters:

Model

Shell diameter (mm)

Shell length (mm)

Capacity (t/h)

Power (kW)

Overall dimension

L×W×H(mm)

Weight (t)

CTB612

600

1200

10-20

1.1

2030×1200×1140

1.5

CTB618

600

1800

15-30

2.2

2630×1200×1140

1.8

CTB718

750

1800

20-45

3

2550×1460×1360

2.2

CTB918

900

1800

25-55

4

3050×1820×1700

2.9

CTB924

900

2400

35-70

4

3710×1820×1700

3.6

CTB1018

1050

1800

40-75

5.5

2800×1760×1750

4.3

CTB1024

1050

2400

60-120

5.5

3200×1760×1750

5.2

CTB1030

1050

3000

70-150

7.5

3950×1760×1750

6.3

CTB1218

1200

1800

60-110

5.5

2850×2030×1940

5

CTB1224

1200

2400

70-130

7.5

3400×2030×1850

6.4

CTB1230

1200

3000

80-160

7.5

4050×2030×1940

7.8

CTB1530

1500

3000

100-180

11

4230×2300×2350

9.2

CTB1540

1500

4000

115-220

11

5230×2300×2350

10.5


Mining Wet Magnetic Separator for Ore Dressing Plant Granularity Below 3mm

Case :

Magnetic Separator Shipped to India for Processing Coal

Date: 2016.04.27

Mining Wet Magnetic Separator for Ore Dressing Plant Granularity Below 3mm
