Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Specifications
Brand Name :
Lipu
Model Number :
XB1500
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Agitation Leaching Tank
Model :
XB1500
Internal diameter :
1500mm
Internal height :
1500mm
Volume :
2.7m³
Power :
5.5-7.5kw
Overall dimension :
1650×1650×2360mm
Weight :
1.2t
Capacity :
0.15-0.2t/h
Condition :
New
Application :
Ore Beneficiation Plant
Description

Mining Mineral Mixing Agitation Leaching Tank For Ore Beneficiation Plant

Brief Introduction:

Agitation Leaching Tank is mainly used to mix slurry before flotation in the beneficiation process. It can mix drug and slurry completely. It is suitable to mix slurry with density smaller than 30% (weight ratio) and size smaller than 1mm. V-belt of motor drives impeller to mix drug and slurry completely. This machine can increase reaction time and strengthen reaction quality of the drug.

Advantages:

1. Reasonable structure and good sealing.

2. The pulp stirs well, and the blender blade is fan-shaped which enlarges its contact area with agent.

3. Spray head is designed with multi-rows and the water quantity is adjustable.

4. Low rate of left dust.

5. Advanced design and reliable fine product quality.

5. Advanced design; reliable final product quality;it stirs well and discharges materials promptly.

Technical Parameters:

Model

Internal diameter (mm)

Internal height (mm)

Volume (m3)

Power (kW)

Overall dimension

(L×W×H)(mm)

Weight(t)

XB500

500

500

0.1

1.1

680×600×1100

0.25

XB750

750

750

0.33

1.5

900×820×1400

0.5

XB1000

1000

1000

0.79

1.5-2.2

1200×1200×1600

0.8

XB1200

1200

1200

1.4

3-4

1300×1300×1800

1.1

XB1500

1500

1500

2.7

5.5-7.5

1650×1650×2360

1.2

XB2000

2000

2000

6.3

5.5-7.5

2200×2180×2980

1.6

XB2500

2500

2500

12

11-15

3780×2700×3420

3.5

XB3000

3000

3000

21

18.5-22

3600×3400×4150

4.6

XB3500

3500

3500

34

22-30

4200×3480×4750

7.3

XB4000

4000

4000

50

30-37

4600×4400×5100

10

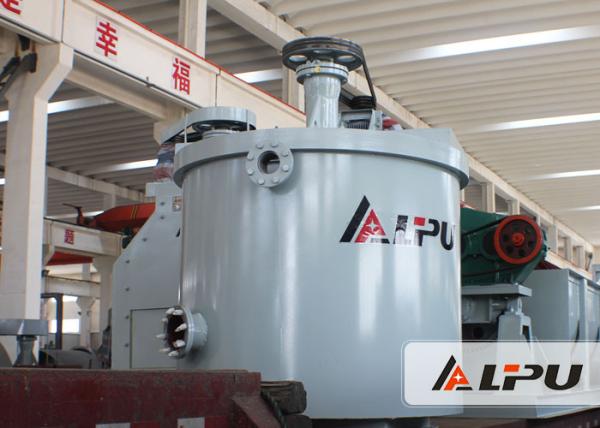

Product Picture Show :
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
Case:
Agitation Tank Delivered to Zhejiang Province, China:
Date: 2014.05.31
Ore Dressing Plant Mining Mineral Mixing Agitation Leaching Tank , Ore Beneficiation Equipment
