Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure
Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure
Specifications
Brand Name :
Lipu
Model Number :
VCⅡ8622
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Sand Making Machine
Model :
VCⅡ9532
Capacity :
Simple Structure
Max. Feed Size(mm) :
50mm
Double Motor Power :
180-220kw
Overall Dimension :
4800×2250×3800mm
Weight :
12 T
Application :
sand making plant
Description

Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure

VCII sand making machine application
Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion. And Sand Making Machine is more productive than other kind of crushers.

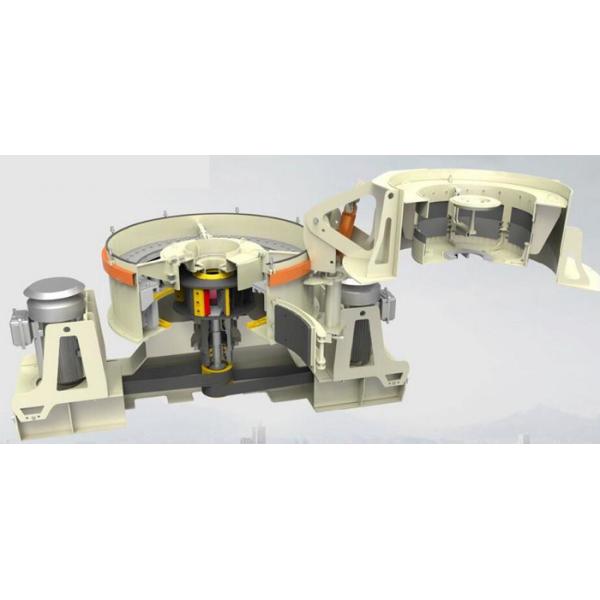

Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure

Features:

(1)Deep cavity design enables bigger inner space of impeller, therefore more throughput capacity and higher efficiency;
(2)Reasonable inner structure, the material liner forms on the chamber wall, which could effectively extend the service life of impeller and wearing parts, reduce usage cost;
(3)High, middle and low speed grades are optional, which amplify the crusher efficiency, and combine crushing, sand making, re-shaping functions as one;
(4)The wear-resistant plate and surfacing on the impeller upper plate provide dual protection, which ensure the impeller safety and repeating use;
(5)Higher manufacturing accuracy and dynamic, static balancing technology make the impeller outstanding in unbalance resistance;
(6)Modularized wearing parts design ensures high generality, less wearing parts type and convenient wearing parts replacement.

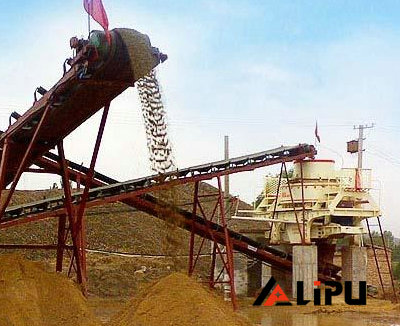

Working Site:

Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure

Technical Parameter :

Model

VCⅡ7515

VCⅡ8622

VCⅡ9532

VCⅡ1145

Capacity(t/h)

Center

feeding

70-150

120-220

170-320

260-450

Center

and side

feeding

90-200

150-290

220-420

340-590

Max. Feed

Size(mm)

40

50

50

50

Double

Motor

Power(kW)

110-150

180-220

260-320

400-440

Overall

Dimension/L×W×H(mm)

4100×2000×3200

4500×2100×3400

4800×2250×3800

5200×2400×4200

Transportation

Dimension/

L×W×H(mm)

4100×2000×2100

4500×2100×2200

4800×2250×2600

5200×2400×2850

Weight(t)

stone

strike

stone” crushing

cavity

7.8

9.2

12

15

stone strike

iron” crushing

cavity

8.9

10.5

13.8

17.5

Thin Oil Lubrication Station

Double Oil

Pump Power(kW)

2×0.37

Safety

Protection

Double Oil Pump feed each other; Automatic shutdown when

no oil return; Water cooling system; Automatic heating in low temperature.

Oil Tank

Heating

Power(kW)

2

Overall Dimension/L

×W×H(mm)

820×520×1270

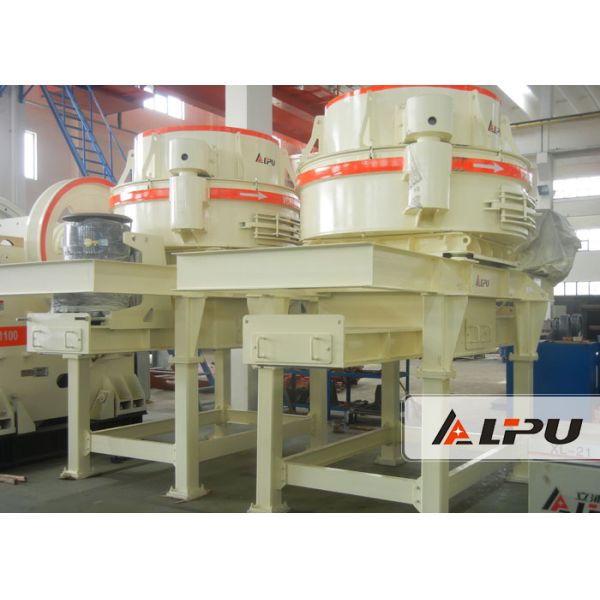

Product Picture Show :

Vertical Shaft Impact VCII Sand Making Machine River Gravel Simple Structure
