Fine Powder Grinding Plant For Building Materials Chemicals Fertilizer Metallurgy Mining Refractory Ceramic
Fine Powder Grinding Plant For Building Materials Chemicals Fertilizer Metallurgy Mining Refractory Ceramic
Fine Powder Grinding Plant For Building Materials Chemicals Fertilizer Metallurgy Mining Refractory Ceramic
Fine Powder Grinding Plant For Building Materials Chemicals Fertilizer Metallurgy Mining Refractory Ceramic
Specifications
Brand Name :
Lipu
Model Number :
2400×4500
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Pwder Ball Mill
Model :
2400×4500
Capacity :
8.5-60t/h
Weight :
65t
Power :
380kw
Application :
mineral separation, building material and chemical industries
Rotating speed :
21r/min
Weight of ball :
30t
Feeding size :
≤25mm
Discharging Size :
0.074-0.4mm
Description


Fine Powder Grinding Plant for Building materials chemicals fertilizer metallurgy mining refractory ceramic


Configuration: Jaw crusher, grinding mill, bucket elevator, magnetic vibrating feeder, transmission gear, main engine.
Applied Materials: Feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese, etc.
Application Area: Building materials, chemicals, fertilizer, metallurgy, mining, refractory, ceramic, steel, coal, etc.

Our Advantage

1
It has rational structure design, which has strong adaptability to materials; wide application ranges; the configuration has great flexibility and high yield; the material has short staying time in the mill, so as to reduce the duplication of milling; low energy consumption, stable product quality.
2
The equipment adopts high quality material, which has abrasion resistance, long service life, strong ability to adapt to the environment; it has open layout, which has high degree of automation, convenient operation, low noise, and the system works under negative pressure without pollution to the environment.

Technical Data:

ModelEffective volume(m3)Max. steel ball load (t)Capacity (t/h)Power(kW)Rotary speed(rpm)Weight(t)
MQGMQYMQSMQGMQYMQS
φ900×180011.31.720.9-1.61.7-3.22-3.715374.2
φ900×21001.11.51.92.31-1.92-3.72.3-4.318.5374.9
φ900×30001.62.22.83.31.4-2.72.9-5.43.3-6.230377.6
φ1200×24002.43.34.14.92.2-44.3-85-9.230358.7
φ1200×300034.15.26.22.7-55.4-106.2-12373513
φ1200×45004.46.27.79.34-7.58.1-159.3-17553514
φ1500×30004.86.68.3104.3-88.6-1610-19752915
φ1500×45007.11012156.5-1213-2415-281102916
φ1500×570091316198.2-1516-3119-351302924
φ1830×30007.11012156.4-1213-2415-2813024.528
φ1830×450010.615182210-1819-3622-4115524.532
φ1830×650015.321273214-2628-5232-602102435
φ1830×700016.523293415-2830-5635-642452437
φ2100×30009.41316209-1617-3220-3715523.542
φ2100×360011.316202410-1921-3824-4418023.544
φ2100×450014.120253013-2426-4830-5524523.552
φ2100×70002231384620-3740-7446-8638023.557
φ2200×360012.517222611-2123-4226-4921021.552
φ2200×450015.622273314-2628-5333-6124521.554
φ2200×650022.531394720-3841-7647-8832021.560
φ2200×700024.234425122-4144-8251-9538021.563
φ2200×800027.838485726-4649-9057-10442021.567
φ2400×36001521263114-2527-5131-5828021.360
φ2400×450018.726333917-3234-6339-7332021.371
φ2400×600024.935435223-4245-8452-9740021.384
φ2400×700029.141516126-4953-9861-11347521.392
φ2700×360018.826333917-3234-6440-7338020.682
φ2700×450023.533414921-4043-8049-9248020.690
φ2700×600031.444556629-5357-10666-12256020.6105
φ2700×700036.651647733-6267-12477-14363020.6110
φ3200×450033.547587031-5761-11370-13180018.2137
φ3200×600044.762789441-7681-15194-174100018.2160
φ3200×700052.2739110947-8895-176110-203112018.2185
φ3600×450042.860759039-7278-14590-167112017200
φ3600×600057.18010011952-96104-193120-223140017220
φ3600×700066.69311613961-113121-225140-260160017245
φ3600×800076.110613315970-129138-257160-297160017270
φ3600×900085.612014917978-145156-289180-334180017285
φ3800×650069.19612114563-117126-234145-270180016.7277
φ3800×850090.412615818982-153165-306190-353225016.7300

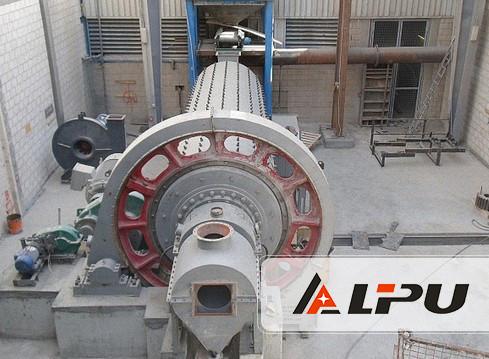

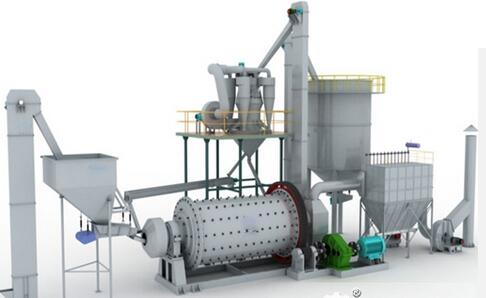

Product Pictures Show:
Fine Powder Grinding Plant For Building Materials Chemicals Fertilizer Metallurgy Mining Refractory Ceramic
