Large Capacity Portable Ore Mineral Grinding Mining Ball Mill Φ1500×3000
Large Capacity Portable Ore Mineral Grinding Mining Ball Mill Φ1500×3000
Specifications
Brand Name :
Lipu
Model Number :
1500×3000
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Mining Ball Mill
Model :
Φ1500×3000
Speed :
29r/min
Capacity :
3.3-8.2 t/h
Power :
245kw
Rotary speed :
24rpm
Weight :
37t
Max. steel ball load :
23t
Condition :
New
Application :
Mining, Chemical Industry
Description

Large Capacity Portable ore mineral Grinding Ball Mill Manufacturer China

Portable Ball Mill is key equipment to grind ores and other materials in dry or wet way, widely used in powder making production line and mineral processing plant. Portable Grinding Ball Mill has strong mobility, greatly reducing transportation cost and saving a lot of time. Portable Ball Grinding Mill hollow axis adopts the cast steel, along with the lining which is often replaced. The large rotary gear is forged from cast rolling gears.

Features of Portable Grinding Ball Mill

1. Large application range, very simple structure and practical maintenance;

2. Large capacity and continuous operate;

3. The barrel physique is inlaid with wearable plates, so Mobile Ball Mill has long serve life;

4. The mobile ball mill runs steadily and effectively;

7. Installation and adjustment are pretty hassle-free and simple operation.

Application:

MQ series high efficient ball mill is widely in the industry of mining (metallic minerals and non-metallic

minerals), cement, refractories, chemical, power plant, aluminum, building material, glass, ceramic,

steel slag and fly ash, etc.

Technical Data:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kW)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ900×1800 1 1.3 1.7 2 0.9-1.6 1.7-3.2 2-3.7 15 37 4.2
φ900×2100 1.1 1.5 1.9 2.3 1-1.9 2-3.7 2.3-4.3 18.5 37 4.9
φ900×3000 1.6 2.2 2.8 3.3 1.4-2.7 2.9-5.4 3.3-6.2 30 37 7.6
φ1200×2400 2.4 3.3 4.1 4.9 2.2-4 4.3-8 5-9.2 30 35 8.7
φ1200×3000 3 4.1 5.2 6.2 2.7-5 5.4-10 6.2-12 37 35 13
φ1200×4500 4.4 6.2 7.7 9.3 4-7.5 8.1-15 9.3-17 55 35 14
φ1500×3000 4.8 6.6 8.3 10 4.3-8 8.6-16 10-19 75 29 15
φ1500×4500 7.1 10 12 15 6.5-12 13-24 15-28 110 29 18
φ1500×5700 9 13 16 19 8.2-15 16-31 19-35 130 29 24
φ1830×3000 7.1 10 12 15 6.4-12 13-24 15-28 130 24.5 28
φ1830×4500 10.6 15 18 22 10-18 19-36 22-41 155 24.5 32
φ1830×6500 15.3 21 27 32 14-26 28-52 32-60 210 24 35
φ1830×7000 16.5 23 29 34 15-28 30-56 35-64 245 24 37
φ2100×3000 9.4 13 16 20 9-16 17-32 20-37 155 23.5 42
φ2100×3600 11.3 16 20 24 10-19 21-38 24-44 180 23.5 44
φ2100×4500 14.1 20 25 30 13-24 26-48 30-55 245 23.5 52
φ2100×7000 22 31 38 46 20-37 40-74 46-86 380 23.5 57
φ2200×3600 12.5 17 22 26 11-21 23-42 26-49 210 21.5 52
φ2200×4500 15.6 22 27 33 14-26 28-53 33-61 245 21.5 54
φ2200×6500 22.5 31 39 47 20-38 41-76 47-88 320 21.5 60
φ2200×7000 24.2 34 42 51 22-41 44-82 51-95 380 21.5 63
φ2200×8000 27.8 38 48 57 26-46 49-90 57-104 420 21.5 67
φ2400×3600 15 21 26 31 14-25 27-51 31-58 280 21.3 60
φ2400×4500 18.7 26 33 39 17-32 34-63 39-73 320 21.3 71
φ2400×6000 24.9 35 43 52 23-42 45-84 52-97 400 21.3 84
φ2400×7000 29.1 41 51 61 26-49 53-98 61-113 475 21.3 92
φ2700×3600 18.8 26 33 39 17-32 34-64 40-73 380 20.6 82
φ2700×4500 23.5 33 41 49 21-40 43-80 49-92 480 20.6 90
φ2700×6000 31.4 44 55 66 29-53 57-106 66-122 560 20.6 105
φ2700×7000 36.6 51 64 77 33-62 67-124 77-143 630 20.6 110
φ3200×4500 33.5 47 58 70 31-57 61-113 70-131 800 18.2 137
φ3200×6000 44.7 62 78 94 41-76 81-151 94-174 1000 18.2 160
φ3200×7000 52.2 73 91 109 47-88 95-176 110-203 1120 18.2 185
φ3600×4500 42.8 60 75 90 39-72 78-145 90-167 1120 17 200
φ3600×6000 57.1 80 100 119 52-96 104-193 120-223 1400 17 220
φ3600×7000 66.6 93 116 139 61-113 121-225 140-260 1600 17 245
φ3600×8000 76.1 106 133 159 70-129 138-257 160-297 1600 17 270
φ3600×9000 85.6 120 149 179 78-145 156-289 180-334 1800 17 285
φ3800×6500 69.1 96 121 145 63-117 126-234 145-270 1800 16.7 277
φ3800×8500 90.4 126 158 189 82-153 165-306 190-353 2250 16.7 300

Case:

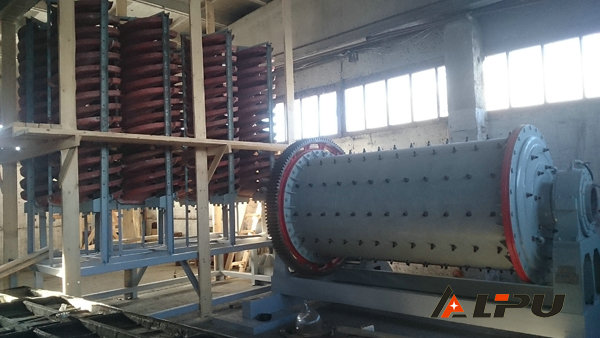

Russia Grinding Chromium Iron/iron Chrome Slag Project

Date:2014

Locate:Russia

Content:a complete set of process equipment, and technical support

Lipu provides the related equipment and technical support for the production line, according to the technological process.

Raw materials is high carbon ferrochrome/iron chromium alloy slag, granularity of 0-5 mm, need to grind to 0-0.5 mm.

In the production line adopts rod mill, spiral chute and shaking table, hydrocyclone, pumps, belt conveyor equipment, etc. Getting the concentrate ore in the end.

Large Capacity Portable Ore Mineral Grinding Mining Ball Mill Φ1500×3000
