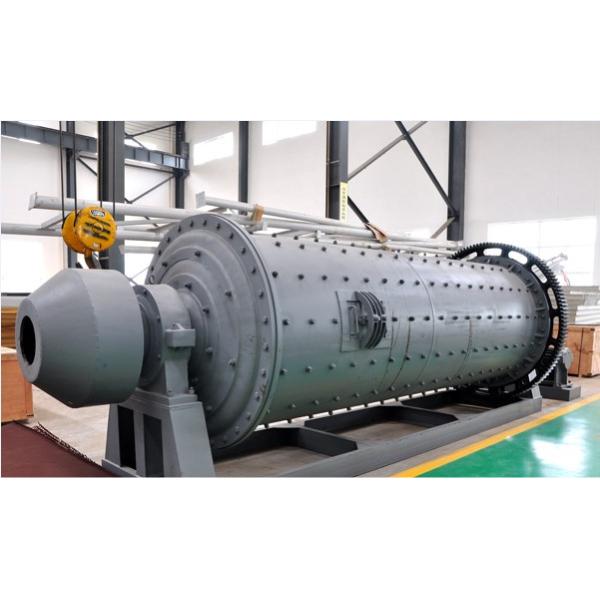

18 T 110kw Mining Ball Mill Compact Structure Ball Mill Production Line
18 T 110kw Mining Ball Mill Compact Structure Ball Mill Production Line
Specifications
Brand Name :
Lipu
Model Number :
1500×4500
Certification :
ISO9001-2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
90 Set/Sets per Quarter
Delivery Time :
30-45 working days after received your payment
Packaging Details :
Container
Product Name :
Gold Industrial Ball Mill
Model :
1500×4500
Effective volume :
7.1m³
Capacity :
6.5-12t/h
Power :
110kw
Rotary speed :
29rpm
Weight :
18t
Max. steel ball load :
10t
Condition :
New
Application :
cement, silicate product, new building material, refractory
Description

Ball Mill Production Line consisted of ball mill, feeder, conveyor, bucket elevator, powder classifier, dust collector

Introduction:

Ball mill production line is mainly consisted of ball mill, hopper, feeder, conveyor, bucket elevator, powder classifier, dust collector and other associated equipments, we can make different design according to customers' requirements.

Features
1.Compact Structure, less premise.
2.High capacity, low power consumption.
3.Highly automatic, easy operation.
4.High adaptability , can be used to grind all kinds of materials in the area of cement, electricity, building materials, metallurgy and so on .

Working Principle:

Ball mill production line is mainly consisted of ball mill, hopper, feeder, conveyor, bucket elevator, powder classifier, dust collector and other associated equipments, we can make different design according to customers' requirements. When it works, materials are evenly fed into the ball mill by the feeder at the bottom of the raw material storage, after being grinded , they outflow from the outlet and are transported to the powder classifier by the bucket elevator, after being classified, the coarse powder are sent back the mill by the screw conveyor, while the qualified powder are sent to the storage by the bucket elevator to be stored or packed. The powder dust is caught by the dust collector , and the powder is sent back to the mill to be regrind, the clean air is released to the atmosphere by the blower.

Technical Data:

Model

Effective volume

(m3)

Max. steel ball load (t)

 Capacity (t/h)

Power

(kW)

Rotary speed(rpm)

Weight

(t)
MQG MQY MQS MQG MQY MQS
φ1500×3000 4.8 6.6 8.3 10 4.3-8 8.6-16 10-19 75 29 15
φ1500×4500 7.1 10 12 15 6.5-12 13-24 15-28 110 29 18
φ1500×5700 9 13 16 19 8.2-15 16-31 19-35 130 29 24

Ball Mill:

18 T 110kw Mining Ball Mill Compact Structure Ball Mill Production Line
