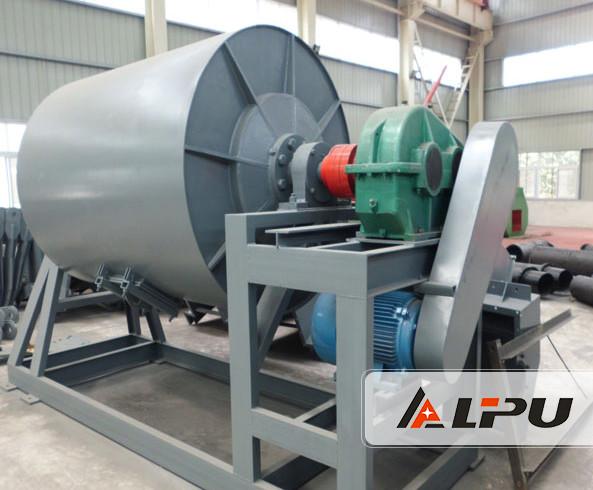

Low Cost Batch Type Ceramic Ball Mill With Alumina Porcelain Liner
Low Cost Batch Type Ceramic Ball Mill With Alumina Porcelain Liner
Specifications
Brand Name :
Lipu
Model Number :
1800×2100
Certification :
ISO9001:2008,CE,IQNet
Place of Origin :
China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/quarter
Delivery Time :
15-20 days
Packaging Details :
Container
Product Name :
Ceramic Ball Mill
Model :
1800×2100
Effective Volume :
5.3m³
Rotary Speed :
23r/min
Power :
15kw
Condition :
New
Weight :
4.5t
Application :
Glass Making And Silica Making Industry
Description

Batch Type Ball Mill:
Ceramic ball mill is mainly designed to mix, and mill materials. With less energy, it produce high fineness product. It has two types, wet mills and dry mills. According to product requirement to satisfy different customer’s requirement, the machine could use different lining board products. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity. The structure is divided into integral type and freestanding type.

Ceramic ball mill specifications and features:
1. 0.05-40tons per time /per batch.
2. power: 2.2-200Kw.
3.For both dry and wet power milling.
4.intermittent type ,batch type.
5. High aluminium ceramic liner,and high aluminium ceramic grinding balls.
6.ceramic ball mill is belong to high-fine grinding machine, after grinding material would pass 1000 mesh .
7.The feed material should be in medium size to get best grinding high efficiency and economic benefits.

Model Effective volume(m³) Rotary speed(r/min) Once feeding quantity(t) Power(kw) Weight /without liner(t)
φ1800×2100 5.3 23 1.5 15 4.5

Case:
Low Cost Batch Type Ceramic Ball Mill With Alumina Porcelain Liner
